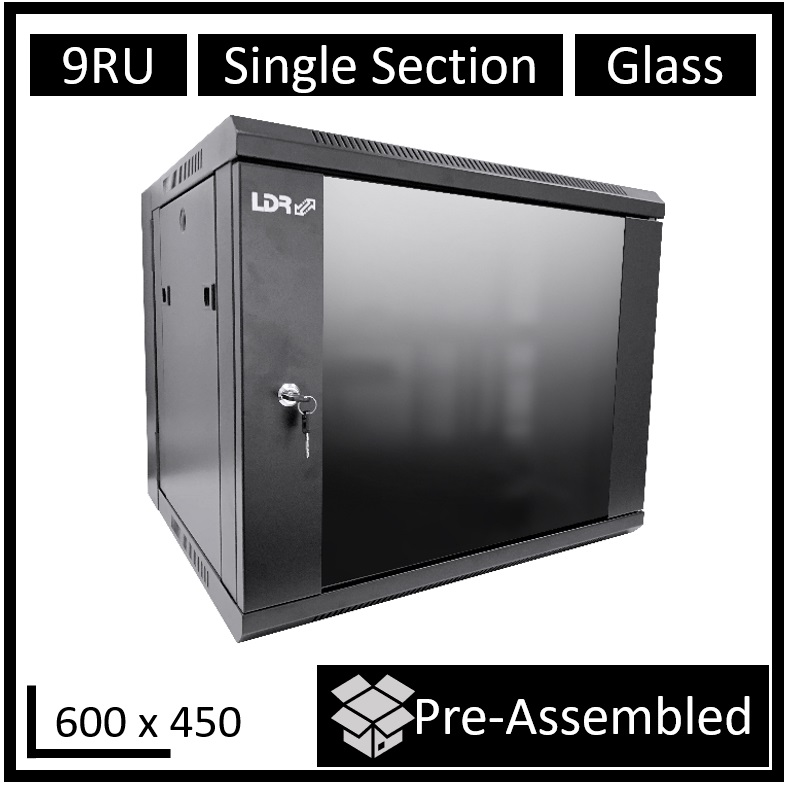

LDR Assembled 9U Wall Mount Cabinet RCLDR-SS450-9U-A

The LDR single section hanging cabinets of the mounting height 9U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

Data Sheet: Click Here

FEATURES:
•Side doors mounted on latches with a lock assembly option
•A frame with a load capacity of 60kg
•Protection class IP20
•Front door – glass

SPECIFICATIONS:
•Nominal height 9U
•Total outer height 500mm
•Outer width 600mm
•Outer depth 450mm
•Mounting depth 350mm
•Colour Black
•Maximum load capacity 60kg
•Protection class IP20
•Front doors Glass with a lock
•Back doors n/a
•Side panels Full steel dismounted on latches with a lock assembly option
•Shipping Dimensions: 520mm x 620mm x 470mm
•Shipping Weight: 17kgs
•Carton:1pc/box

Product Last Updated: 28/04/2025
