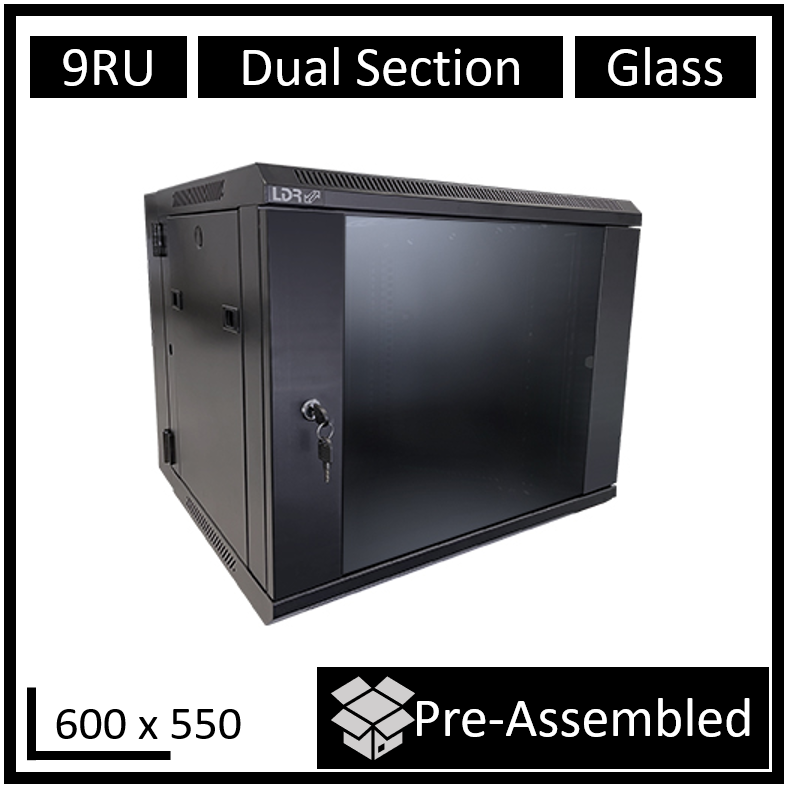

LDR Assembled 9U Hinged Wall Mount Cabinet RCLDR-DS550-9U-A

The LDR two-section hanging cabinets are most often used in close circuit television, security alarm, and access control system installations, where quick and easy access to the back section of the cabinet is an important factor. Thanks to this, access to the back side of the mounted devices does not pose any difficulties.

Data Sheet: Click Here

FEATURES:
•Side doors mounted on latches with a lock assembly option
•A frame with a load capacity of 60kg
•Protection class IP20
•Front door – glass

SPECIFICATIONS:
•Nominal height 9U
•Total outer height 500mm
•Outer width 600mm
•Outer depth 550mm
•Mounting depth 400mm
•Colour Black
•Maximum load capacity: 60kg
•Protection class IP20
•Front doors Glass with a lock
•Back doors n/a
•Side panels Full steel dismounted on latches with a lock assembly option
•Shipping Dimensions: 620mm x 570mm x 530mm
•Shipping Weight: 21k
•Carton: 1pc/box

Product Last Updated: 12/09/2026
