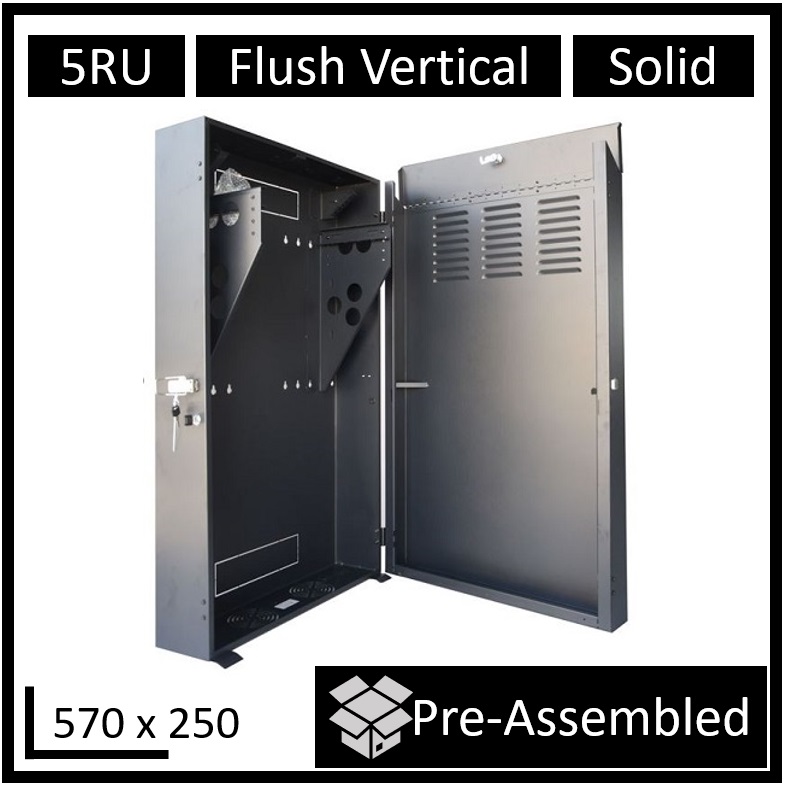

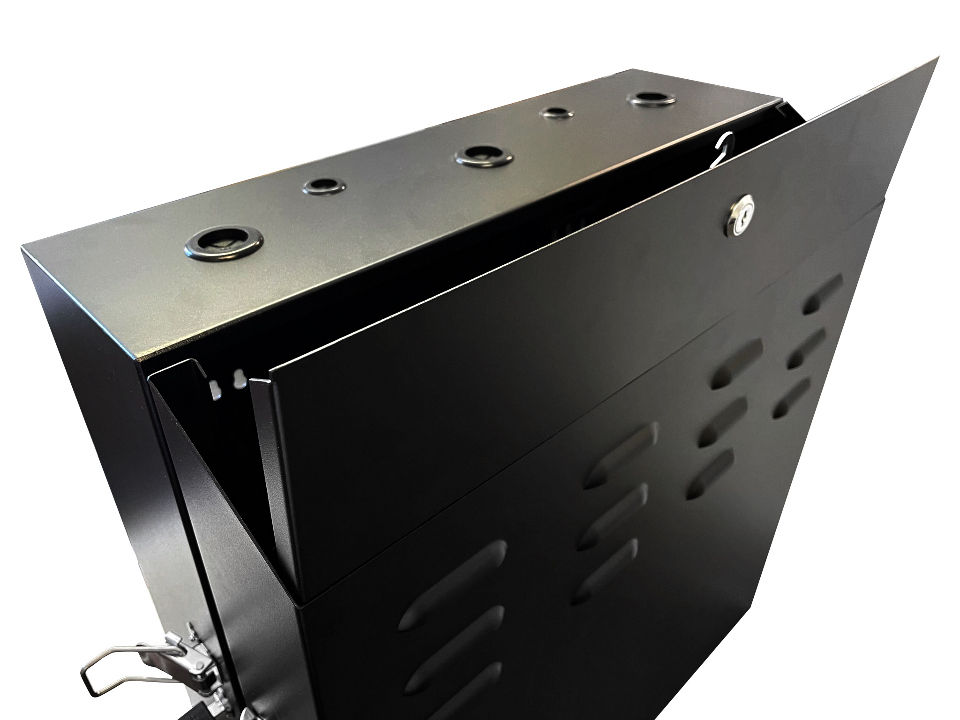

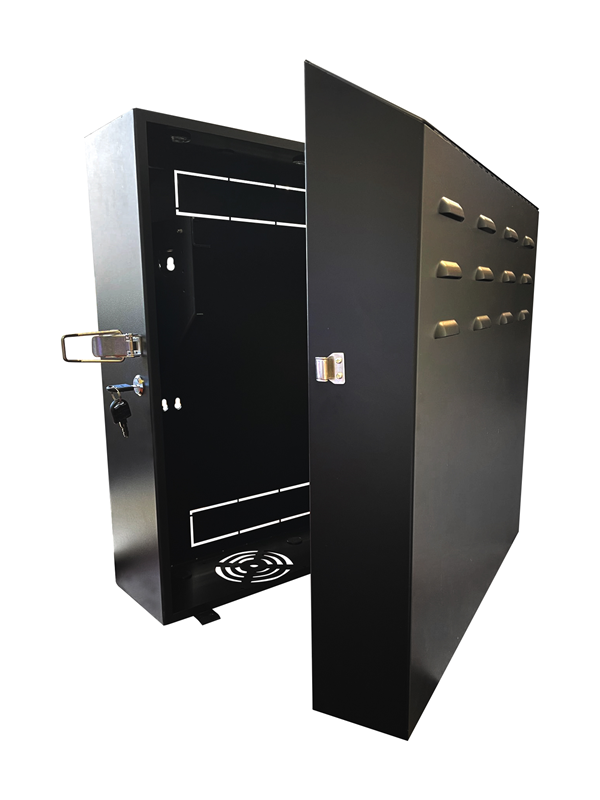

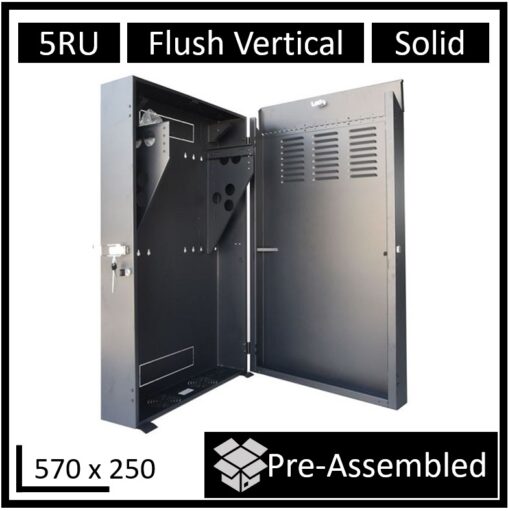

LDR Assembled 5U Flush Wall Mount Vertical Cabinet (570mm x 250mm) – Black Metal Construction

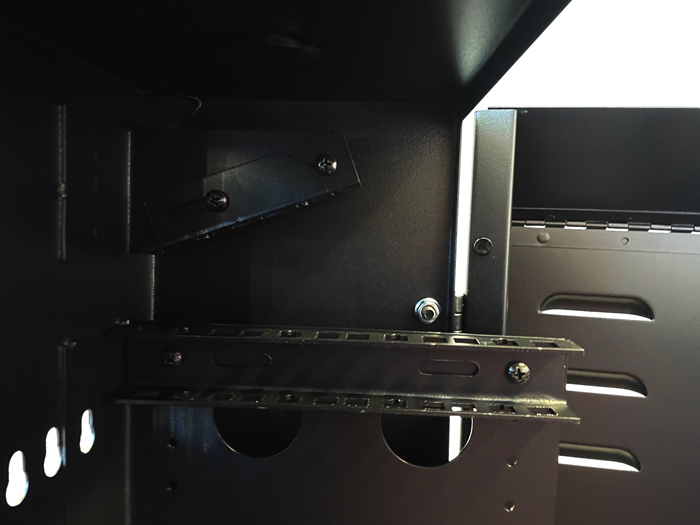

The LDR 5U Vertical Wall Mount Cabinet is perfect for saving space in small environments. It can house 19′ networking equipment up to 400mm deep. The total dimension is 5U, but it includes a 4U rack for gear like switches and servers, plus a 2U mount for patch panels. Ideal for comms rooms, retail stores, classrooms, and offices.

FEATURES:
•Vertical Mounting Layout Allowing A More Compact Rack
•Protection class IP20
•Front door – Solid Metal

SPECIFICATIONS:
• Nominal height 5U
• Product Length 550mm
• Product Width 570mm
• Product Height 250mm
• Product Weight 14kg
• Internal Mounting Depth 220mm

• Protection class IP20
• Load Capacity 35kg

• Shipping Dimensions: 570mm x 590mm x 270mm
• Shipping Weight: 15kgs
• Carton:1pc/box

Product Last Updated: 12/09/2026
