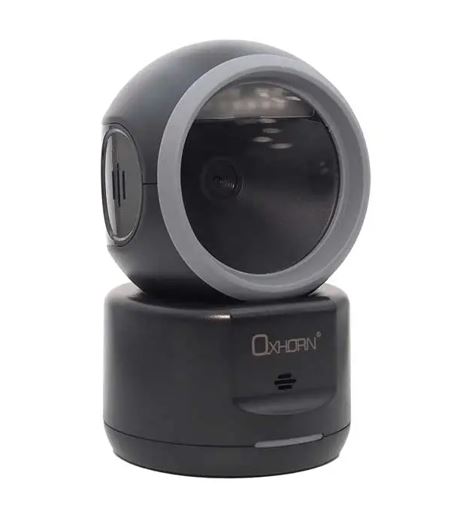

Oxhorn Wireless Bluetooth 2D Desktop Barcode Scanner Commercial Grade USB PlugPlay 5V 1A Sensor Pixel Supported most of System Black | UB-D202

Oxhorn Wireless Bluetooth 2D Desktop Barcode Scanner Commercial Grade USB PlugPlay 5V 1A Sensor Pixel Supported most of System Black

Specification
Interface: USB(Drive free), serial port
Power Input: DC 5V 1A
Supported System: Windows，Mac OS，IOS, Linux，Unix，Android
Fast and reliable scanning helps improve productivity
Scanner parameters
Sensor: 640*480 CMOS
Pixel: 300,000 (640*480), High quality 1000000（1280*800）
Reading Precision: ≥5mil/0.127mm（PCS90%,CODE 39）
Scan rate: 30 Fps
Scan Pattern: Automatic induction continuous scan
Scanning angle: Horizontal : ±70° Vertical：±60° Rotated: ±360° (Test Conditions：CODE39,10mil/0.25mm,PCS90%)
Decoding Capability：
2D: QR Code, Micro QR Code, Data Matrix，PDF417,，etc…
1D: EAN-8、EAN-13、EAN-13 2 add-on、 EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、GS1-128、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded， etc…
Interface：USB, serial port
Working Temperature: -20℃ to 55℃
Working Humidity: 5-95% Non-Condensed
Environment Light: 0-70000LUX
Environmental Sealing: IP54
Product Weight: 280g
Depth of Filed
Barcode Type Barcode Density Minimum Maximum
Code 39 20mil 10mm 150mm
Code 128 13mil 10mm 330mm
UPC/EAN 0.33mm(13mil) 10mm 290mm
QR Code 20.0mil 10mm 180mm
Data Matrix 10mil 10mm 110mm
PDF 417 6.67mil 15mm 120mm
*Testing Conditions: Environment Temperature = 24℃, Ambient Light Illumination = 300LUX

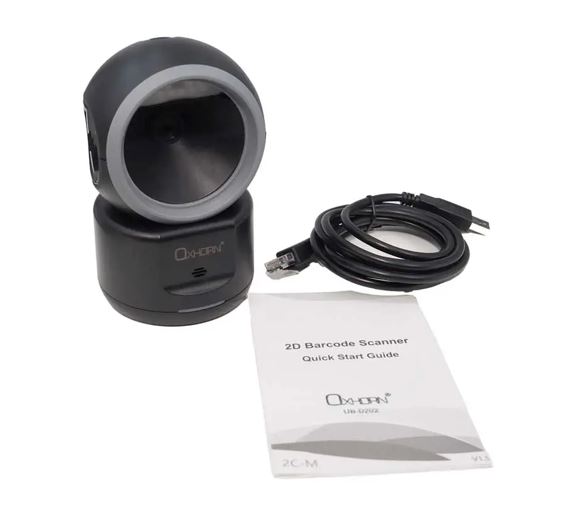

What’s in the Box:
1 x Desktop 2D Barcode Scanner
1 x USB cable
1 x User Manual
