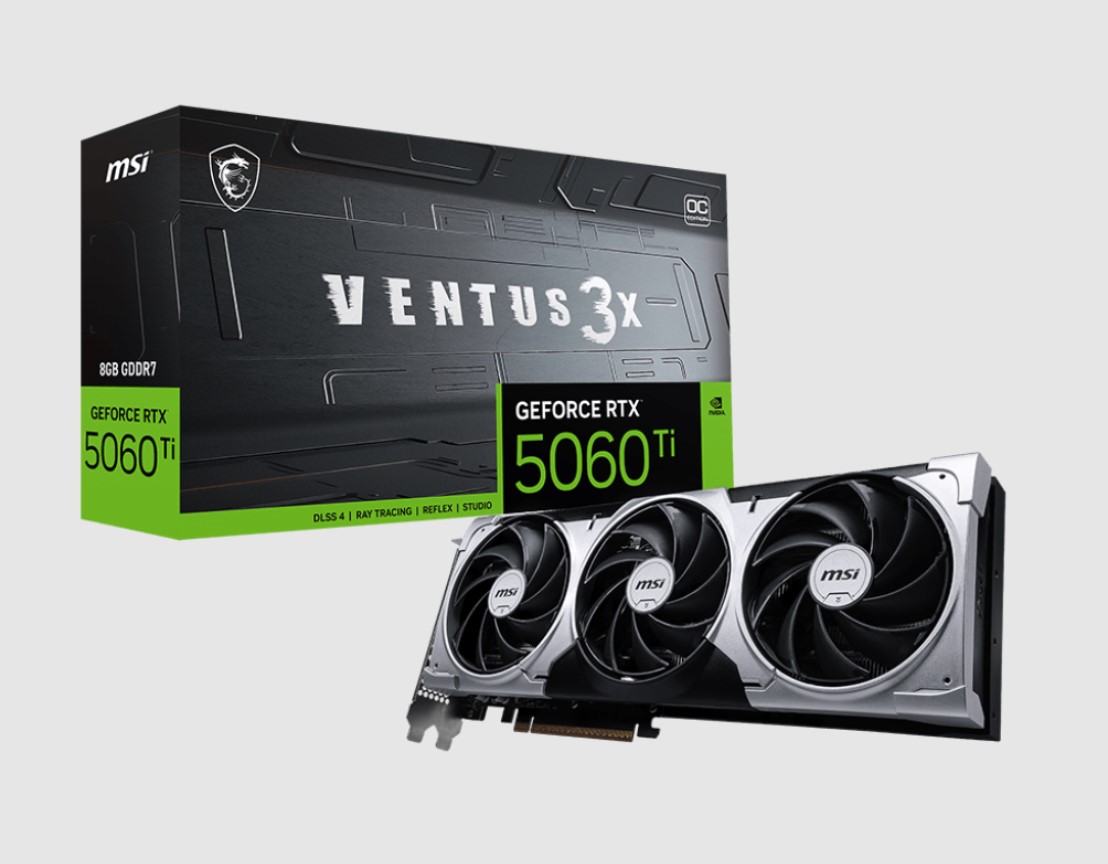

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 3X OC, PCI Express® Gen 5 x 16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1 | GeForce RTX 5060 Ti 8G VENTUS 3X OC

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 3X OC, PCI Express® Gen 5 x 16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1

SPECIFICATIONS

Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 3X OC
Model Name G506T-8V3C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
CUDA® CORES 4608 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 8-pin x 1
Recommended PSU 600 W
Card Dimension (mm) 304 x 121 x 44 mm
Weight (Card / Package) 793 g / 1162 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

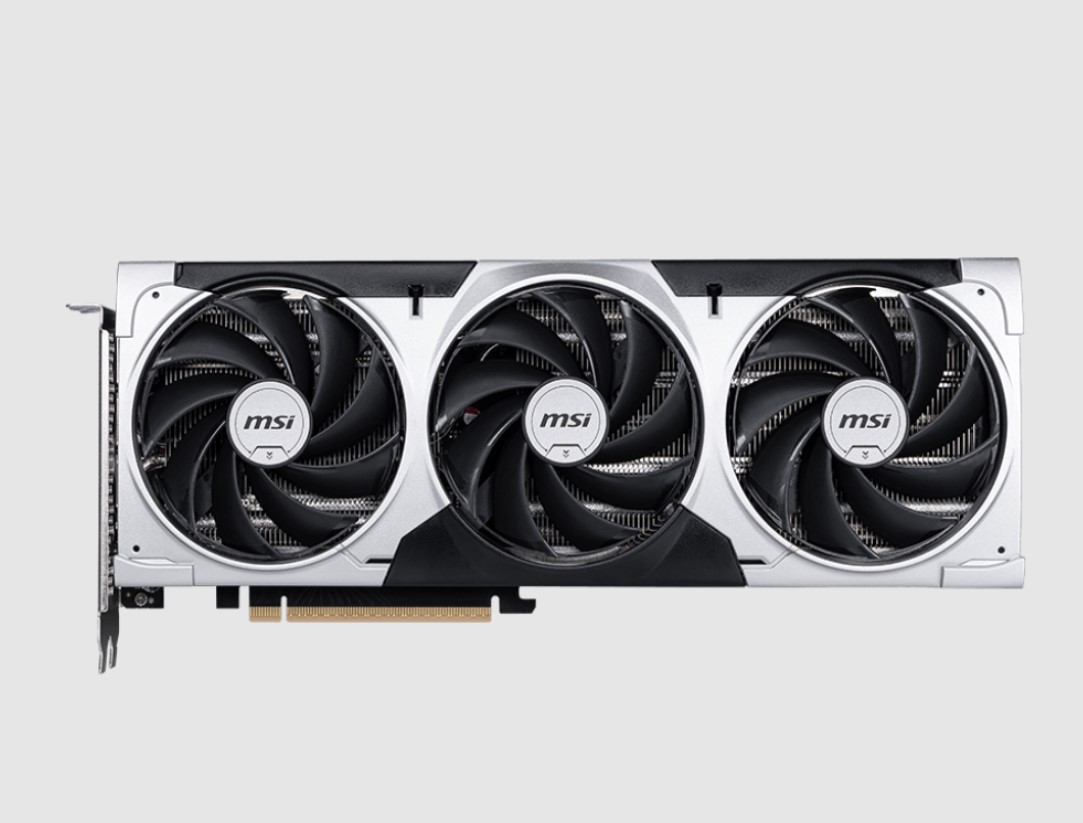

Triple Fan
Three fans and a huge heatsink ensure a cool and quiet
experience for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.
Solid Baseplate
A solid baseplate transfers heat from the GPU to all heat pipes for
better cooling.

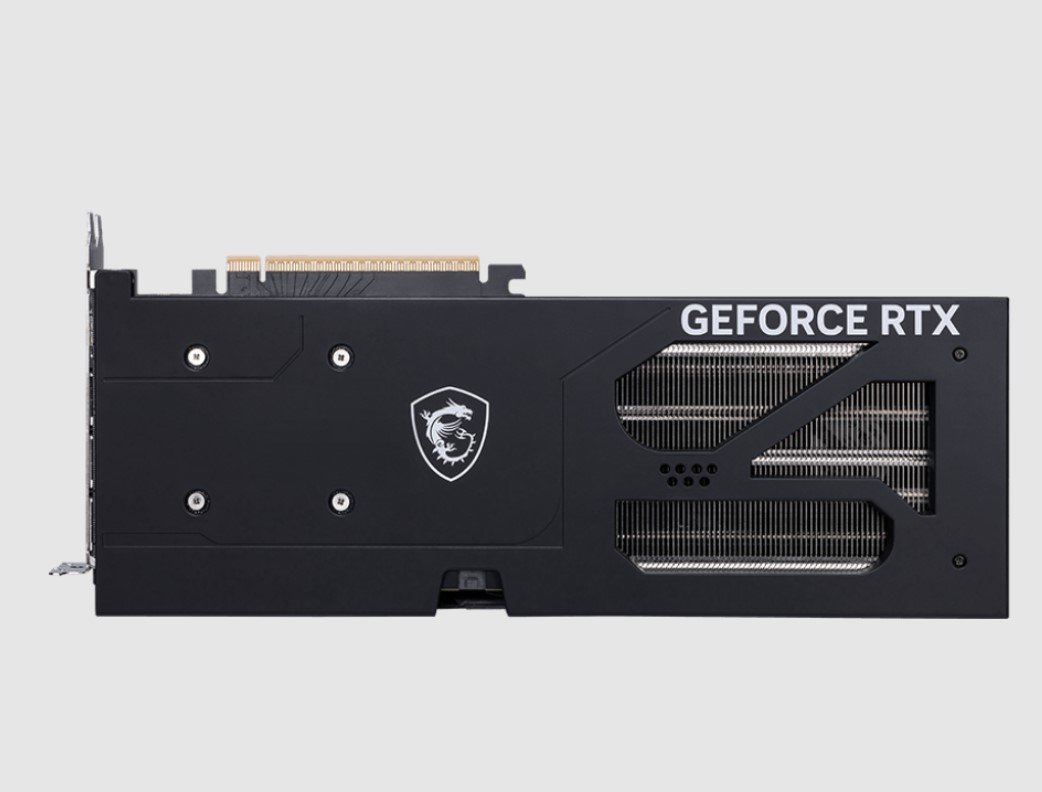

Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
