MSI Cubi Z AI 8M with Hawk Point R9, Ryzen 9 8945HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y | Cubi Z AI 8M-003BAP-BAR98945SXX

MSI Cubi Z AI 8M with Hawk Point R9, Ryzen 9 8945HS/Up to DDR5/dTPM/2*M.2/2*HDMI/2*USB C 4.0/4*Display/2*LAN/Wifi6E/Card Reader/Power Switch Cable/3Y

FEATURES
Ready for AI
Enable lightweight AI for better performance and lower power usage in efficient intelligent systems.

Built-in NPU
Designed for efficient AI processing with lower power consumption.

4-Display Support
Enhance the workflow efficiency by previewing e-commerce content on up to four monitors for improved productivity.

USB4 40Gbps
Up to 40Gb transmission speed and support the power delivery, offering a fast and simple level of connection for work.

Dual 2.5G LAN
Dual 2.5G network solution for Intranet and Internet offers a smooth experience for effective network connection.

dTPM 2.0 Support
dTPM 2.0 design secures your confidential data with encryption keys.

Built-In Speaker
Built-in speakers allow you to listen clearly without connecting external speakers.

MSI AI Engine
Incorporating AI technology, the MSI AI Engine can switch settings, including lighting, performance, audio and visual based on different applications.

VESA Mountable
To be mounted on the wall of your office home with a VESA standard design which can make it completely invisible on a desk.

SPECIFICATIONS
Operating System
Windows 11 Home
Windows 11 Pro – MSI recommends Windows 11 Pro for business

CPU
AMD Ryzen™ 9 8945HS

Chipset AMD SoC
Graphics AMD Radeon™ Graphics (Integrated)
Storage 1x M.2 2280 SSD (NVMe PCIe Gen4 x4)
System Memory 2x DDR5 5600 SO-DIMMs, up to 64GB

I/O (Front)
4x USB 10Gbps Type A
1x Mic-in/Headphone-out combo

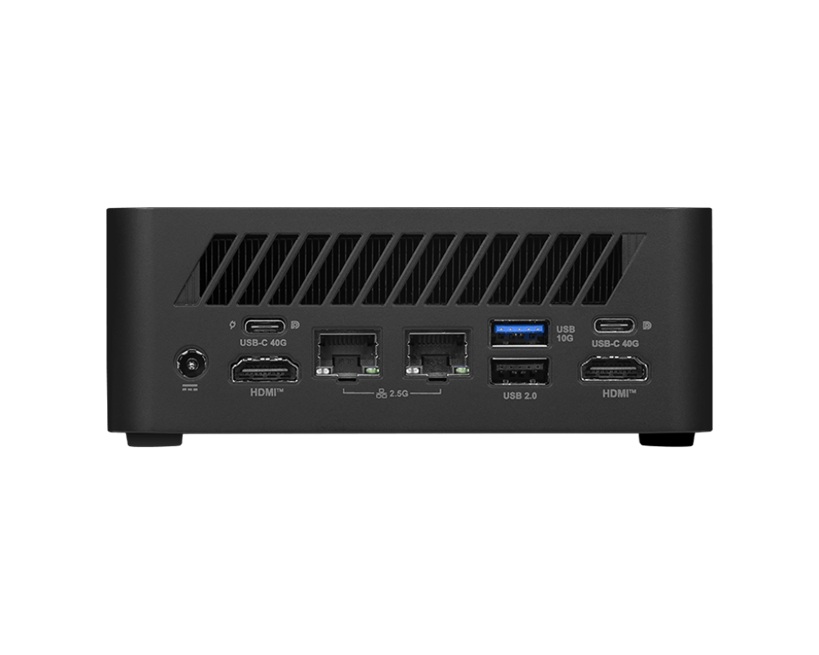

I/O (Rear)
2x USB4 Type-C (DP 1.4 alt-mode up to 4K@60Hz /
PD-out 15W / One of USB4 supports PD-in up to
100W)
1x USB 10Gbps Type A
1x USB 2.0 Type A
2x RJ45 (2.5G)
2x HDMI™ out (supports 4K @60Hz as specified in
HDMI™ 2.1)

I/O (SIDE)
1x Card Reader
1x Kensington Lock

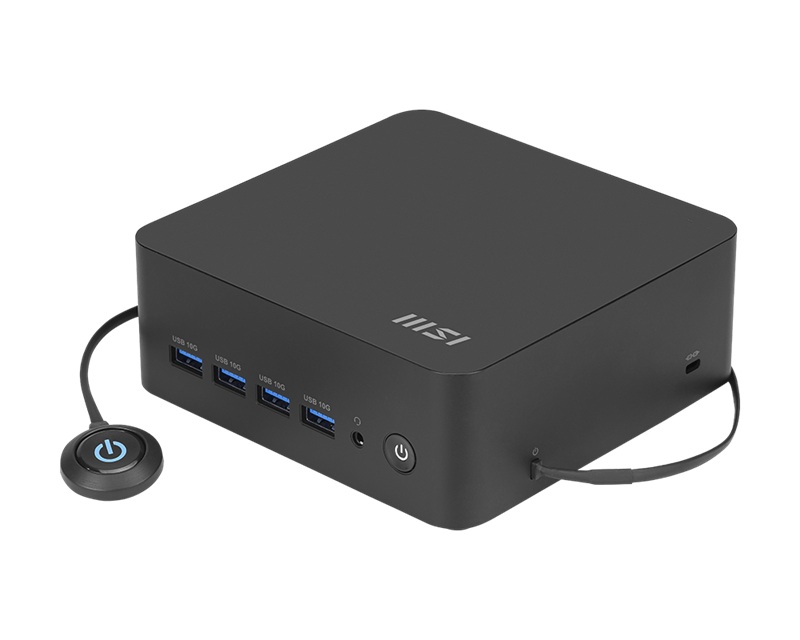

1x External Power Switch Pin Header

Wireless LAN AMD RZ616 Wi-Fi 6E
Bluetooth 5.3
AUDIO Built-in Speaker
LAN 2x Realtek RTL8125BG (2.5G)
KEYBOARD / MOUSE Optional
AC Adapter / PSU 120W
Dimension (WxDxH) 136.00 x 132.00 x 50.10 mm (5.35 x 5.20 x 1.97 inch)
WEIGHT (N.W./ G.W.) 0.79 Kg (1.74 lbs) / 2.02 Kg (4.45 lbs)
Certificates FCC, CB/CE, UL CUL, VCCI, RCM

Product Last Updated: 10/04/2026
