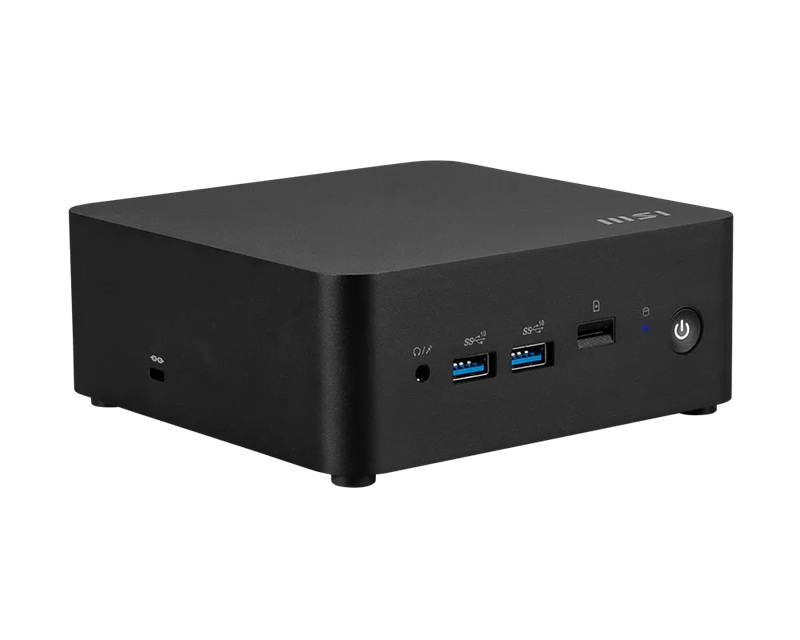

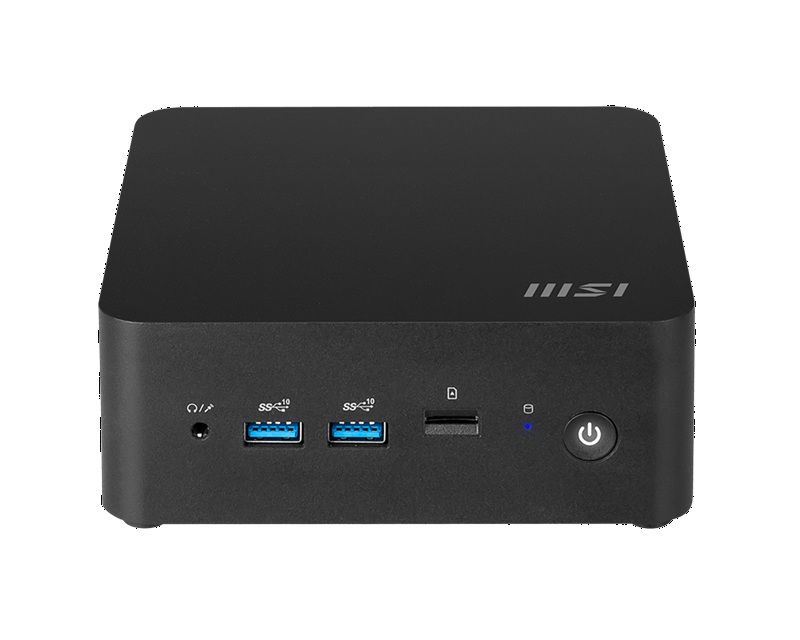

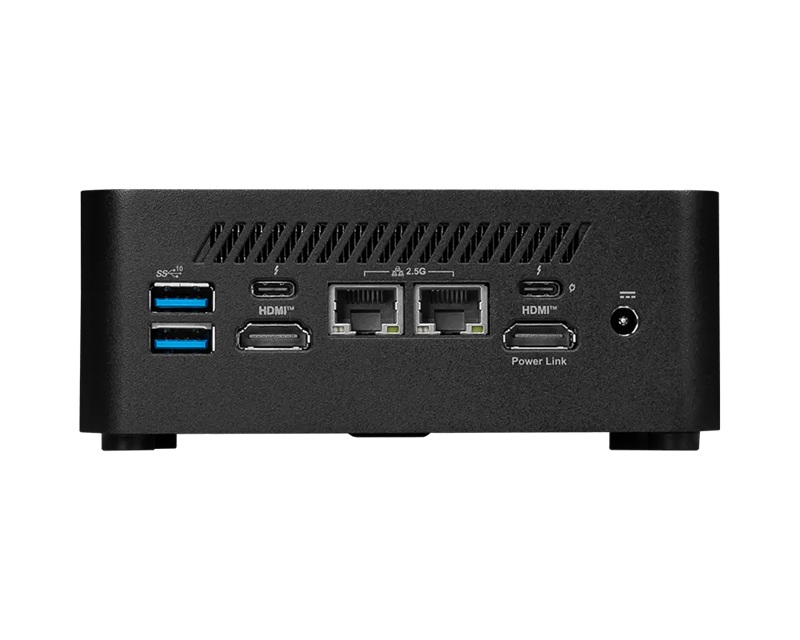

MSI Cubi NUC 1M Barebone Mini PC, Intel Core 3-100U, 6C/8T up to 4.7GHz, 2x DDR5 SODIMM, 2x M.2 SSD, WiFi 6E, BT 5.3, Dual HDMI, Thunderbolt, No OS | CUBI NUC 1M-003BAU

MSI Cubi NUC 1M Barebone Mini PC, Intel Core 3-100U

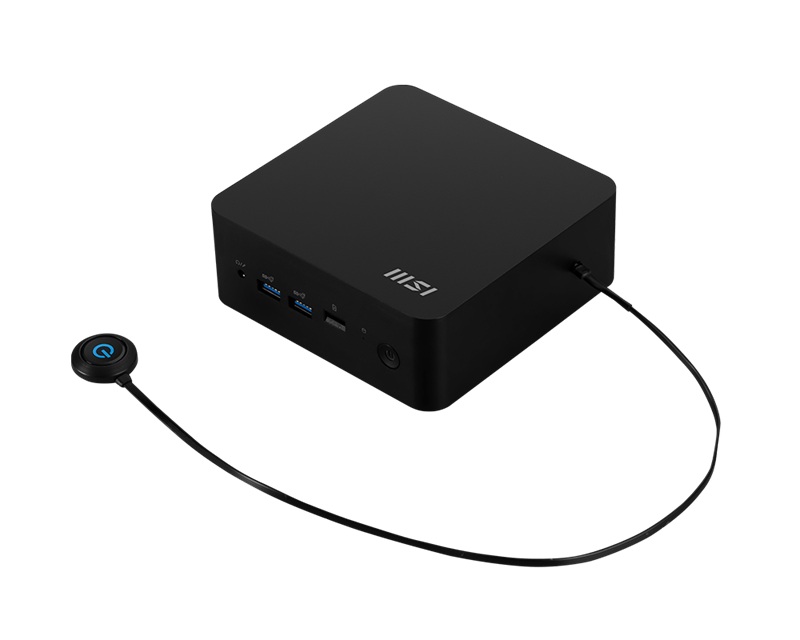

MSI Cubi NUC 1M Barebone Mini PC, Intel Core 3-100U, 2x DDR5 SODIMM Slot, 2x M.2 SSD Slot, CPU Integrated Graphics, WiFi 6, BT 5.3, 2x HDMI, 2x Thunderbolt, Card Reader, No OS, Power Switch Cable

SPECIFICATION
CPU Number Intel Core 3 Processor 100U
CPU Clock 1.2GHz
CPU Cores 6
TDP 15W
Max Turbo Frequency upt to 4.70GHz
Cache 10 MB Intel Smart Cache
Threads 8
Chipsets Soc
Module Type SO-DIMM
Memory Slot(TOTAL) 2
Memory Slot(FREE) 2
Max Capacity Max 64GB
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
WLAN INTEL/AX211.NGWG.NV
WLAN Version Wi-Fi 6E+BT
BT Version 5.3
MSATA Slot(FREE) 0
M.2 Slots(TOTAL) 2
M.2 Slost(FREE) 2
2.5′ Drive Bays(TOTAL) 1
2.5′ Drive Bays(FREE) 1
3.5′ Drive Bays(FREE) 0
USB 3.2 Gen 2 Type A 2
Mic-In/Headphone-Out Combo 1
Card Reader 1
USB 3.2 Gen 2 Type A (R) 2
RJ45 2
HDMI Out 2x (v2.0)
Weight (GROSS KG) 1.45
Warranty 36months
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
AC Adaptor 1
Power Cord 1
Quick Guide 2
Vesa Mount Kit 1

Product Last Updated: 24/09/2026
