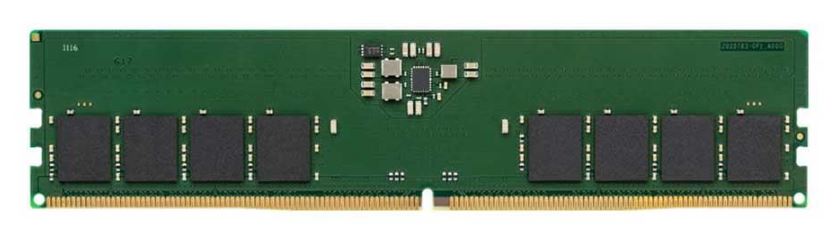

Kingston 16GB (1x16GB) DDR5 5600MT/s Non-ECC Unbuffered DIMM Memory | KVR56U46BS8-16

Kingston 16GB (1 x 16GB) DDR5 5600MT/s Non-ECC Unbuffered DIMM Memory

DDR5 5600MT/s Non-ECC Unbuffered DIMM CL46 1RX8 1.1V 288-pin 16Gbit

DEFAULT FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23′ (31.25mm)
• RoHS Compliant and Halogen-Free

DEFAULT SPECIFICATIONS
CL(IDD) 46 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V – 0
Operating Temperature 0 to +85C
Storage Temperature -55 C to +100 C
