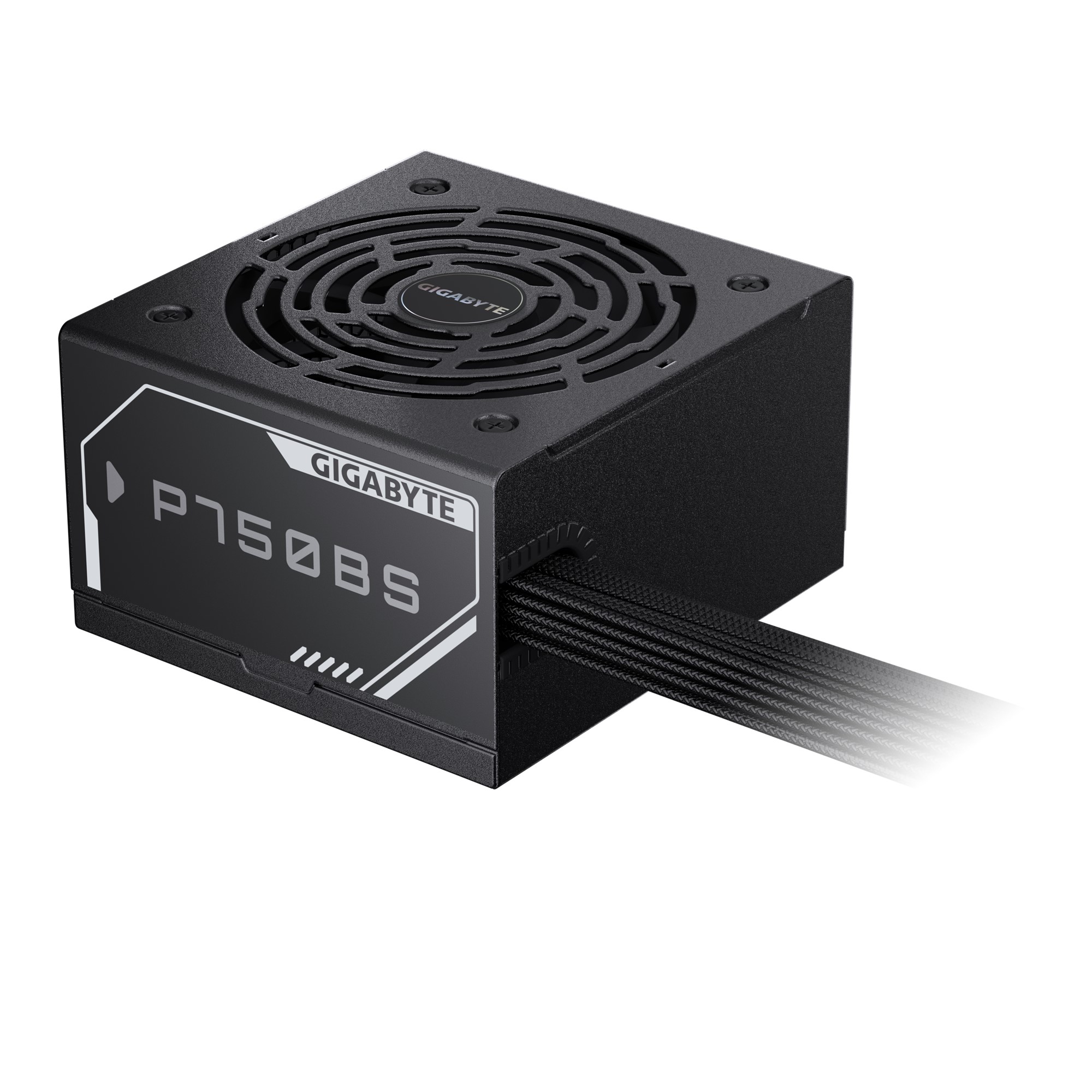

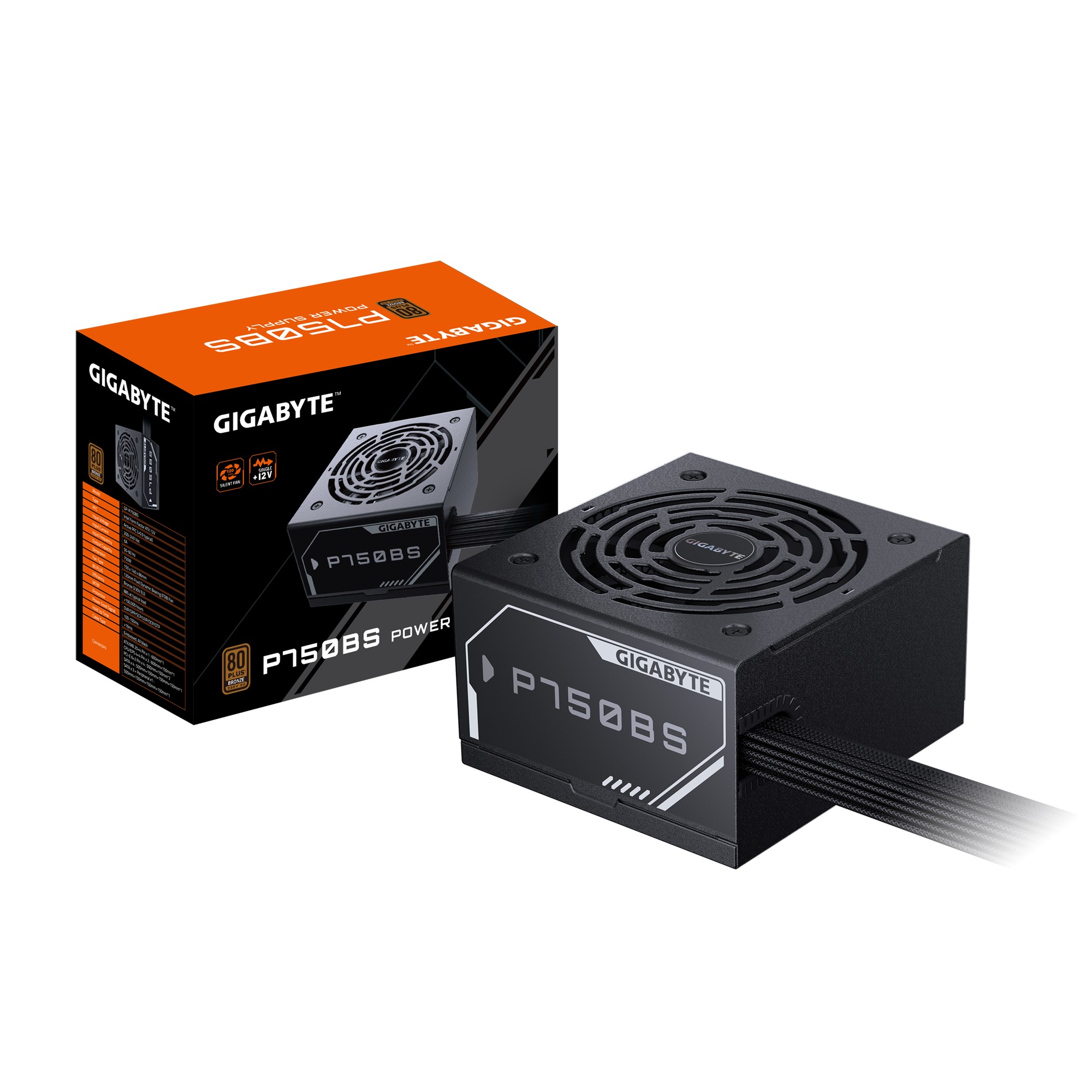

Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan | GP-P750BS

Gigabyte P750BS Power Supply, 750W, ATX12V, 80 PLUS Bronze Fan, Type 120mm Fluid Dynamic Bearing fan >100,000 hours, 3 years warranty

Model GP-P750BS
Type Intel Form Factor ATX 12V
PFC Active PFC (>0.9 typical)
Input Voltage 200-240 Vac
Input Current 6A
Input Frequency 60-50 Hz
Output Capacity 750W
Dimension 150 x 140 x 86 mm

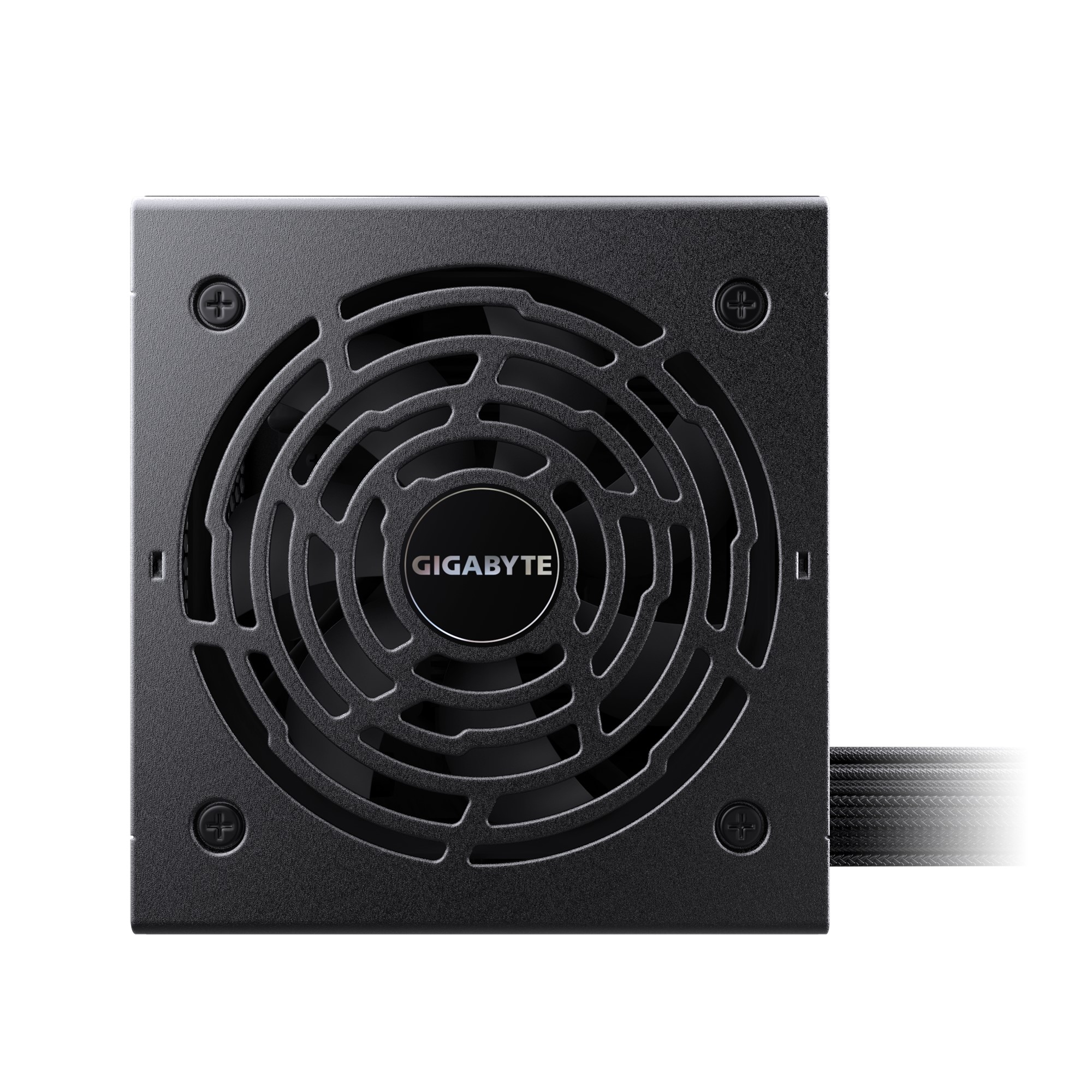

Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 Bronze (230V EU)
Efficiency 88% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1

Product Last Updated: 11/12/2025
