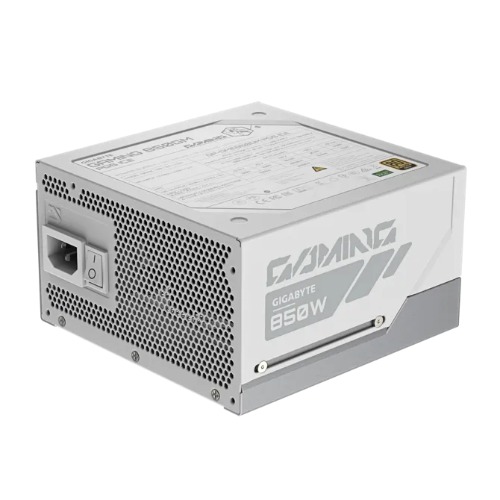

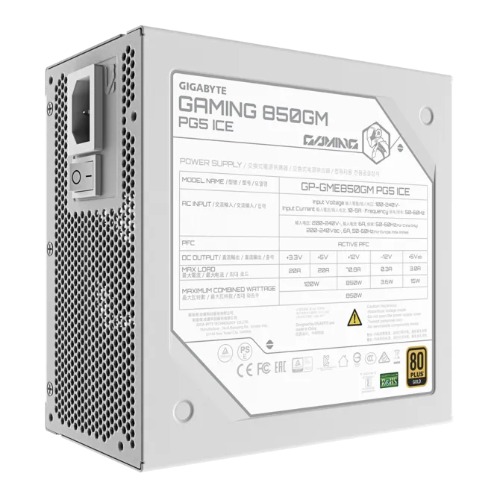

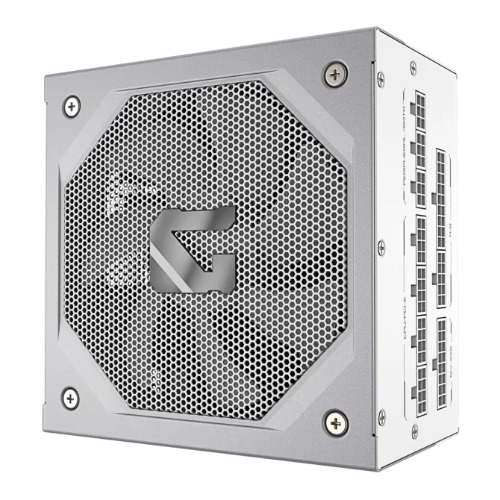

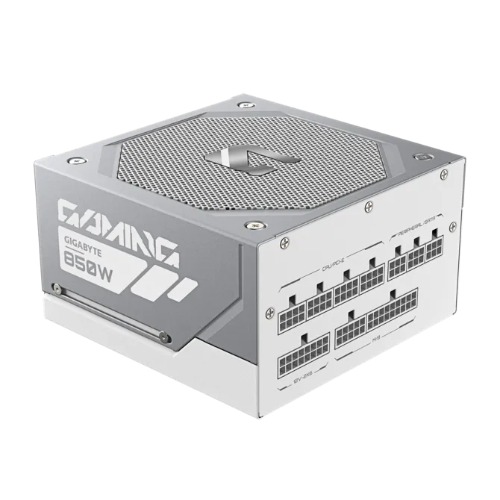

GIGABYTE GAMING 850GM PG5 ICE 850W 80+ Gold ATX 3.1 PSU PCIe5 16pin FM 135mm fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 90eff 100k MTBF | GP-GME850GM PG5 ICE/PSU

GIGABYTE GAMING 850GM PG5 ICE 850W 80+ Gold ATX 3.1 PSU PCIe5 16pin FM 135mm fan 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 90eff 100k MTBF

Model
GP-GME850GM PG5 ICE

Type
Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)
Input Voltage
100-240 Vac

Input Current
10-5A

Input Frequency
50-60 Hz

Output Capacity
850W

Dimensions
150 x 150 x 86mm

Fan Type
135mm FDB Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal
100-150ms

Hold Up Time
>17ms(80% load)

Cable Type
Embossed, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Product Last Updated: 24/09/2026
