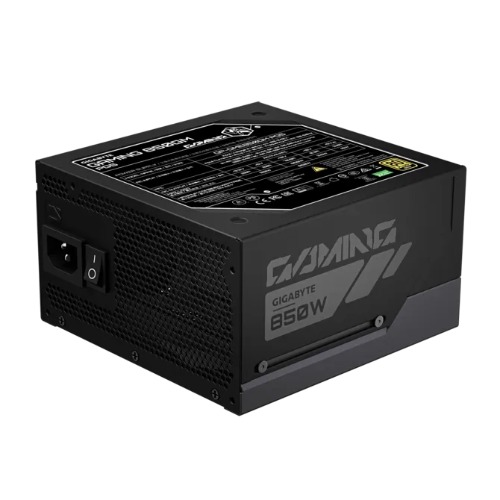

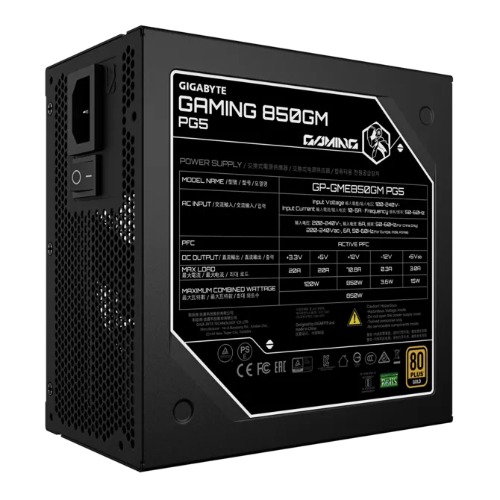

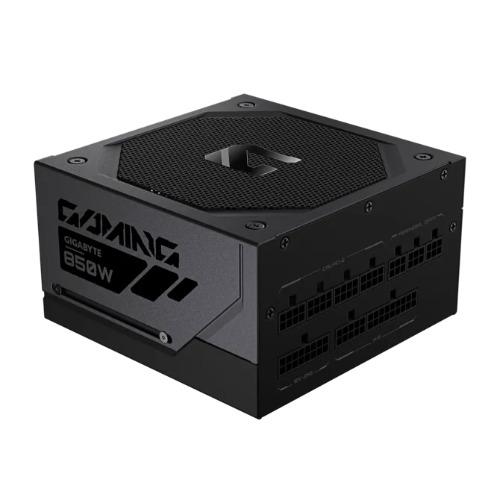

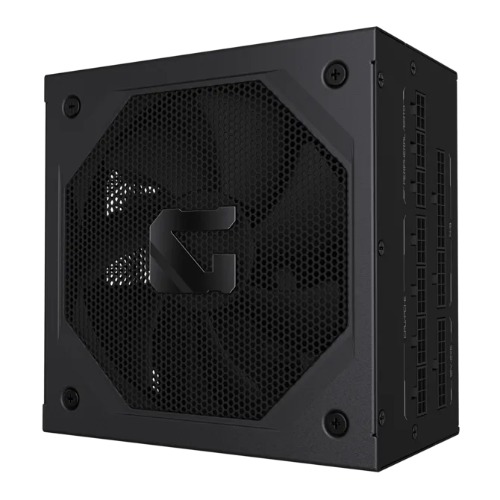

GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM | GP-GME850GM PG5/PSU

GIGABYTE GAMING 850GM PG5 850W 80+ Gold ATX3.1 PCIe5 16pin APFC 90% 135mm FDB 2xEPS 4xPCIe 8xSATA OVP OPP SCP UVP OCP OTP 100k MTBF FM

Model
GP-GME850GM PG5

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac

Input Current
10-5A

Input Frequency
50-60 Hz

Output Capacity
850W

Dimensions
150 x 150 x 86mm

Fan Type
135mm FDB Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protections
OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP

Power Good Signal
100-150ms

Hold Up Time
>17ms(80% load)

Cable Type
Embossed, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Product Last Updated: 24/09/2026
