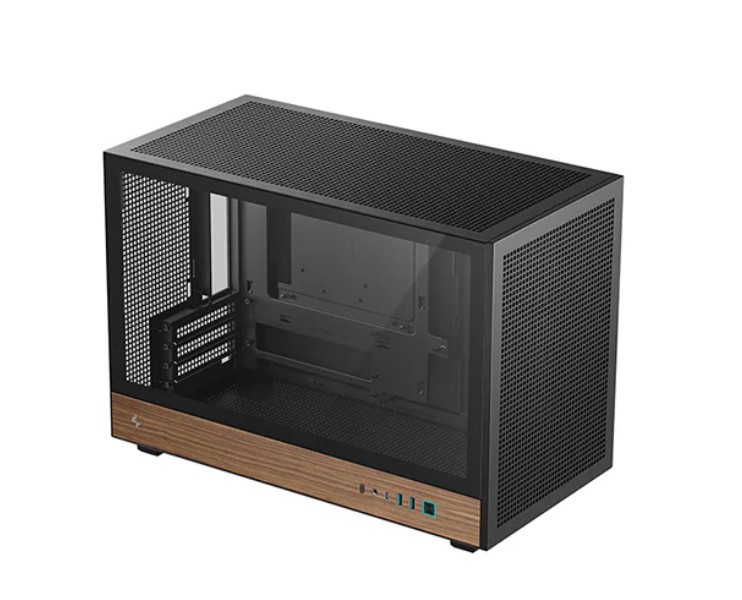

DeepCool CH260 Wood High Airflow Compact Micro-ATX Wood Grain Case.USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 | R-CH260-BKNWM0-G-1

CH260 WOODThe CH260 series is an expanded version of the classic DeepCool ITX case CH160, capable of containing up to M-ATX motherboard and inheriting its high airflow legacy thanks to the full steel mesh panel, now available in a wood-grain option.

Technical Spec
Product Dimensions 438mm*225mm*312.5mm(L×W×H)
Net Weight 5.3Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector)
Front I/O Ports USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5′ Drive Bays 1
2.5′ Drive Bays 1
Expansion Slots 4Slots
Pre-Installed Fans None
Fan Support Front:2×120mm
Top:3×120mm/2×140mm
Rear: 1×120mm
Radiator Support Front: NA
Top:120/140/240/280/360mm
Bottom: NA
Rear:120mm
CPU Cooler Height Limit 174mm
GPU Length Limit 388/413mm（No Front fans）
Power Supply Type ATX PS2（maximum length: 150mm）
EAN 6.93341E+12
P/N R-CH260-BKNWM0-G-1

Product Last Updated: 10/04/2026
