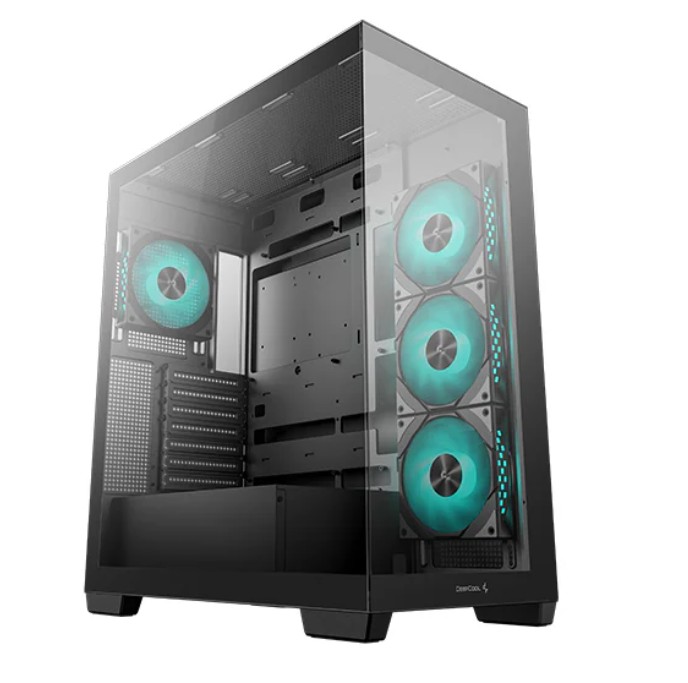

DeepCool CG580 4F Panoramic ATX Mid-Tower Case, 4 x Pre Installed Fans Single Chamber, Support Up to 2x 360mm Radiators, Front 2x USB3.0 | R-CG580-BKADA4-G-1

The CG580 4F is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.

Technical Spec
Product Dimensions 437×235×501mm(L×W×H)
Net Weight 8.7Kg
Materials ABS+SGCC+Tempered Glass
Motherboard Support ITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports USB3.0×2、Gen2 Type-C×1、AudioMic×1
3.5′ Drive Bays 2
2.5′ Drive Bays 2
Expansion Slots 7Slots
Pre-Installed Fans Side:3×120mm(PWM+ARGB Reverse Blade)
Rear: 1×120mm(PWM+ARGB)
Fan Support Front: NA
Top: 3×120mm/2x140mm
Side: 3x120mm
Rear: 1×120mm/1x140mm
Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two）
PSU Shrouded: 2×120mm
Radiator Support Front: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
CPU Cooler Height Limit 176mm
GPU Length Limit 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type ATX PS2（maximum length: 210mm）

Product Last Updated: 11/12/2025
