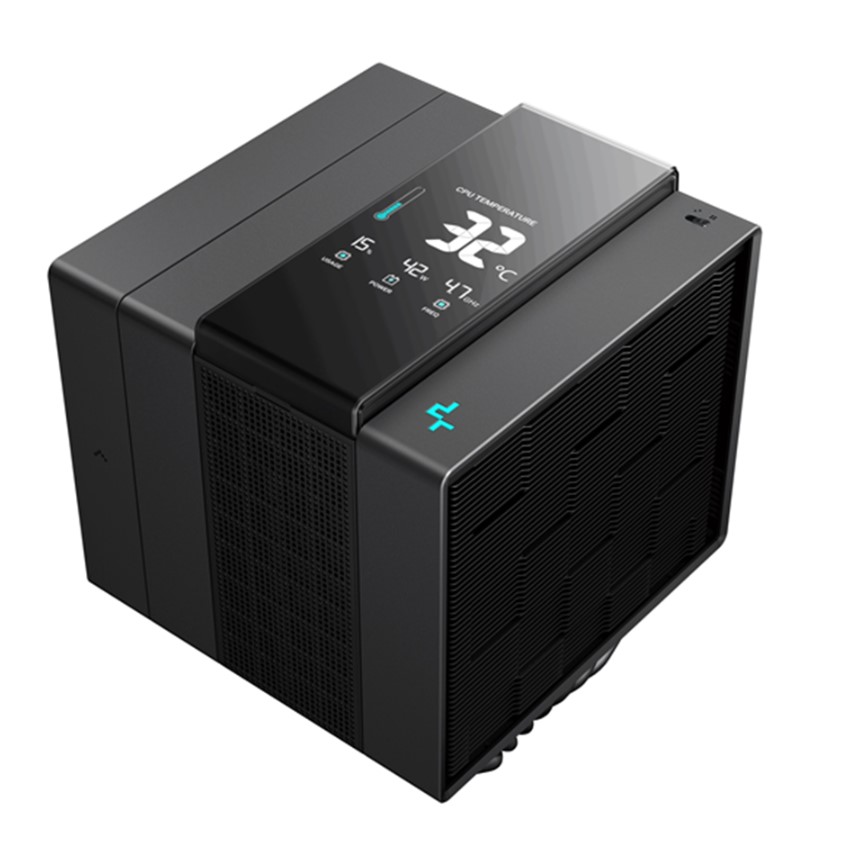

DeepCool ASSASSIN IV VC VISION DIGITAL Air Cooler, TDP 300W, Quad-Segmented Dashboard Display, Silent 3-phase 6-slot 4-pole fans (120mm and 140mm) | R-ASN4-BKNVMD-G

ASSASSIN IV VC VISION
DeepCool’s flagship air cooler series gets a drastic addition in the form of the ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don’t stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.

Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1150/1151/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions 147×144×172 mm(L×W×H)
Heatsink Dimensions 140×110×160 mm(L×W×H)
Net Weight 1780 g
Heatpipe Ø6 mm×7 pcs
Fan Dimensions 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode) 500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode) 61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode) 3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode) ≤29.3 dB(A)
Fan Speed (Quiet Mode) 500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode) 48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode) 2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode) ≤22.6 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A / 0.2 A
Fan Power Consumption 2.4W / 2.4 W
Rated Voltage 12 VDC
Power Consumption(Performance Mode) 4.8 W
Power Consumption(Quiet Mode) 3.6 W
Display Module Rated Voltage 0.08 A±10%
Display Module Rated Current 5 VDC
Display Module Power Consumption 0.4 W
Display Area 44.6×53.6 mm

Product Last Updated: 10/04/2026
