Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case – White, E-ATX, Side 360mm Rad, Glass Panels, USB-C, RS ARGB Fans, 425mm GPU, iCUE LINK Ready | CC-9011325-WW

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case – White

•Wraparound glass view with removable front and side panels
•Three pre-installed iCUE LINK LX120-R fans with iCUE LINK System Hub
•Builder-friendly features for a high-performance custom PC
•Side, roof, and PSU fan mounting points for great cooling
•Compatible with reverse connection motherboards

EDITION
3500 LX-R RGB iCUE LINK

BUILD WITHOUT BOUNDARIES
You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.

REVERSE MOTHERBOARD SUPPORT
Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isn’t spoiled by cables.

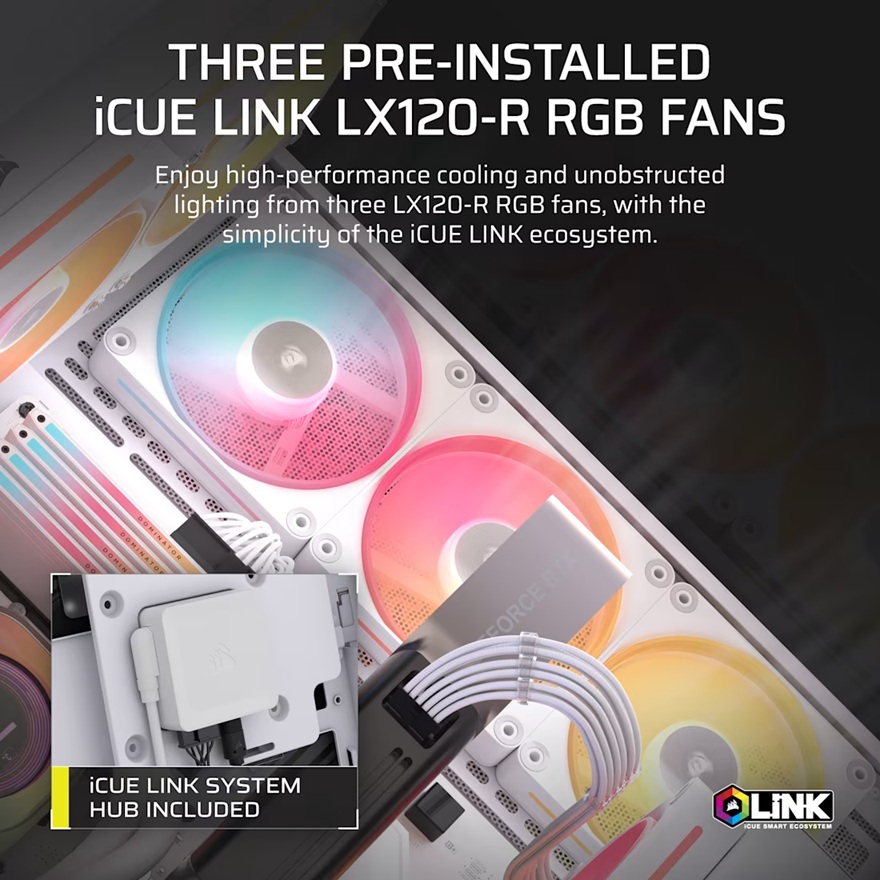

INCLUDES iCUE LINK LX120-R RGB PERFORMANCE FANS
Three LX120-R RGB reverse rotor fans and an iCUE LINK System Hub enable you to take advantage of a revolutionary ecosystem for an easier build. These fans undergo months of rigorous testing to ensure they deliver powerful, efficient airflow that keeps your system running at its best.

COOLING PERFORMANCE
Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.

TECH SPECS
Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height 506
Case Length 460
Case Width 240
Material Steel, Tempered Glass
Color WHITE
Case Size Mid-Tower
Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm
Case Window Tempered Glass
Compatible Liquid Coolers H60, H100, H115, H150 (All Series)
Case Warranty 2 Year
Internal 3.5′ Drive Bays 2
Internal 2.5′ Drive Bays 2
Maximum CPU Cooler Height 170mm
Maximum PSU Length 180mm
Case Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length 425mm
Weight 10.9kg
Case Expansion Slots 7 Horizontal (or 4 Vertical)
Case Power Supply ATX
Radiator Support – Top 360mm, 280mm, 240mm
Radiator Support – Front None
Radiator Support – Bottom None
Radiator Support – Side 360mm, 280mm, 240mm
Radiator Support – Rear 1x 120mm
Fan Support – Top 3x 120mm; 2x 140mm
Fan Support – Front None
Fan Support – Bottom 3x 120mm; 1x 140mm
Fan Support – Side 3x 120mm; 2x 140mm
Fan Support – Rear 1x 120mm
Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support Yes
Included Fans iCUE LINK LX Series
Dust Filtration Yes
Cable Routing Space 45mm
RapidRoute Included Compatible (Sold Separately)
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
