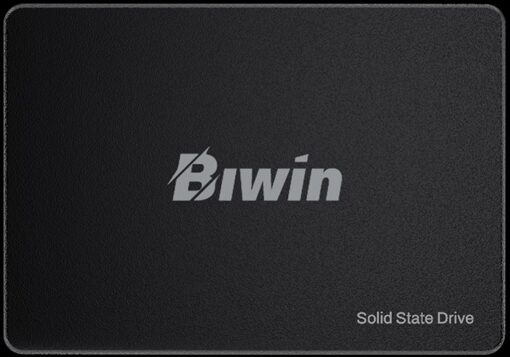

BIWIN M100-256G SATA 2.5 up to 550MB/s 500MB/s Case pack(Iner /Out) 30/120 Warranty 3-Year 80 TBW | BM100NN256G-RGX

BIWINM100-256G SATA 3.0 SSD 2.5 up to 550MB/s 500MB/s Case pack
(Iner /Out) 30/120

Series
Biwin

Category
Solid State Drives

Model Name
Biwin M100

Form Factor
2.5”

Interface
SATA III

DRAM Cache
DRAM-less

Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB

Sequential Read (Up to)
500 MB/s, 550 MB/s, 550 MB/s, 550 MB/s, 550 MB/s

Sequential Write (Up to)
450 MB/s, 470 MB/s, 480 MB/s, 500 MB/s, 500 MB/s

Random Read 4K (Up to)
30K IOPS, 60K IOPS, 60K IOPS, 80K IOPS, 70K IOPS

Random Write 4K (Up to)
60K IOPS, 60K IOPS, 60K IOPS, 70K IOPS, 70K IOPS

Dimensions
100.00 x 77.00 x 6.70 mm

Weight
< 50 g Operating Temperature 0°C to +70°C Storage Temperature -40°C to +85°C MTBF 1,500,000 hours Certifications RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, UKCA Warranty 3-Year / 40 TBW, 3-Year / 80 TBW, 3-Year / 160 TBW, 3-Year / 320 TBW, 3-Year / 640 TBW   Product Last Updated: 28/04/2025
