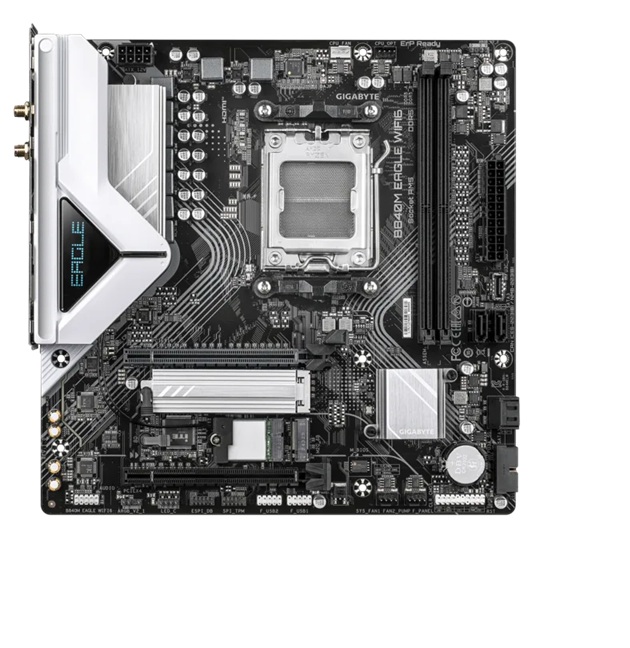

B840M EAGLE ,AMD AM5 B850, Ryzen 7000/8000/9000, 4xDDR5 256GB EXPO/XMP, PCIe 5.0 x16, 2xM.2, 4xSATA, 2.5GbE LAN, Wi-Fi 6E, HDMI, DP, USB-C/3.2 | B840M EAGLE WIFI6

B840M EAGLE ,AMD AM5 B850, Ryzen 7000/8000/9000, 4xDDR5 256GB EXPO/XMP, PCIe 5.0 x16, 2xM.2, 4xSATA, 2.5GbE LAN, Wi-Fi 6E, HDMI, DP, USB-C/3.2

Processor Support:

•
Compatible with AMD Ryzen™ 9000, 8000, and 7000 series CPUs.

•Supports integrated Radeon™ graphics on compatible processors, allowing for triple-display setups via HDMI and DisplayPort.

Memory:

•4 DDR5 DIMM slots supporting up to 256 GB of system memory.

•Supports ultra-fast DDR5 memory speeds up to 8200 MT/s (overclocked), with dual-channel architecture.

•Compatible with AMD EXPO™ and Intel XMP memory profiles for easy overclocking.

Integrated Graphics:

•

Features AMD Radeon™ Graphics support with:

•1 x HDMI 2.1 port (up to 4K@60Hz, HDR, HDCP 2.3)

•2 x DisplayPort 1.4 ports (up to 4K@144Hz)

•Supports up to three displays simultaneously, depending on CPU graphics capabilities.

Networking Connectivity:

•Wired: Realtek® 2.5GbE LAN for high-speed, low-latency networking.
•

Wireless: Realtek® Wi-Fi 6E (RTL8852CE) for next-gen wireless connectivity.

Expansion Slots:

•1 x PCIe x16 slot integrated with the CPU (supports PCIe 5.0 or 4.0 depending on processor series).

•1 x PCIe x16 slot via the chipset, running at PCIe 3.0 x4.
•

Flexible support for graphics cards and NVMe SSDs.

Storage Options:

•

Dual M.2 slots integrated with the CPU:
•

M2A_CPU: Supports PCIe 5.0/4.0 NVMe SSDs, sizes up to 25110
•

M2B_CPU: Supports PCIe 4.0 NVMe SSDs, sizes up to 22110

•4 x SATA 6Gb/s ports for traditional storage drives.

•RAID support for NVMe (0,1,5,10) and SATA drives (0,1,10), with RAID 5 exclusive to Ryzen 9000 series.

USB Connectivity:

•

Rear I/O:

•1 x USB Type-C® (USB 3.2 Gen 2)

•1 x USB 3.2 Gen 2 Type-A

•4 x USB 2.0/1.

•1

Internal headers:

•1 x USB Type-C® (USB 3.2 Gen 2)

•2 x USB 3.2 Gen 1
•

4 x USB 2.0/1.1

Product Last Updated: 10/04/2026
