Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH, supports 4K @ 60 Hz (4:2:0) up to 40 m (Cat 6A), 1080p @ 70m (Cat 6A) | VE1801AEUT-AT-U

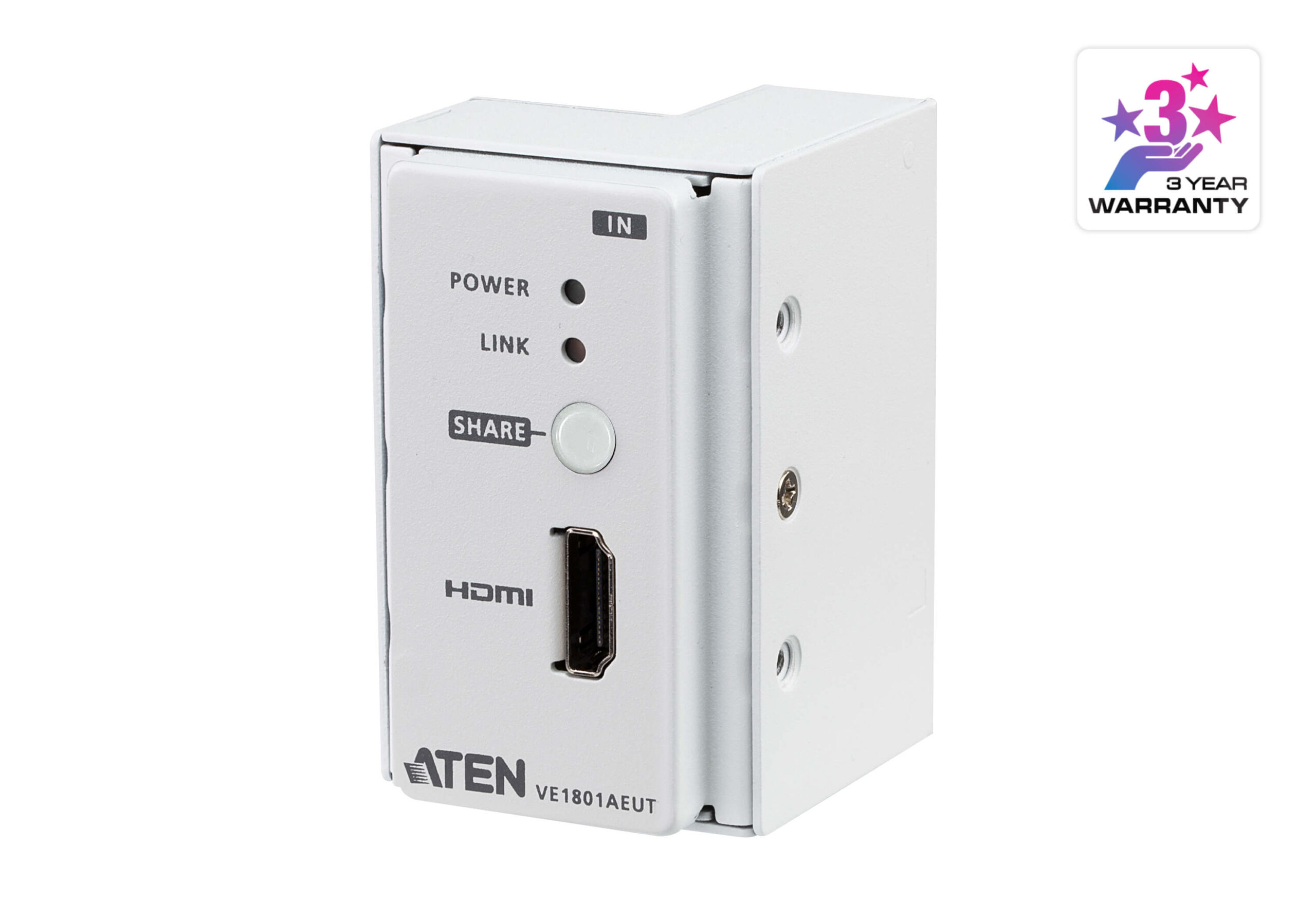

The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.

Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
Built-in PoH (Power over HDBaseT) function – the VE1801AEUT receives power supply from the HDBaseT output port
Designed to mount in a 1-gang junction box with EU wall plate
Supports RS-232 channel transmission
CEC allows interconnected HDMI devices to communicate and respond to a single remote control
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Share function – the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
LED indication of device status
Supports wide screen format
Built-in 8KV / 15KV ESD protection
Plug-and-play

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100Ω
Max. Distance 3 m

Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Audio
Input 1 x HDMI Type A Female (Black)

Control

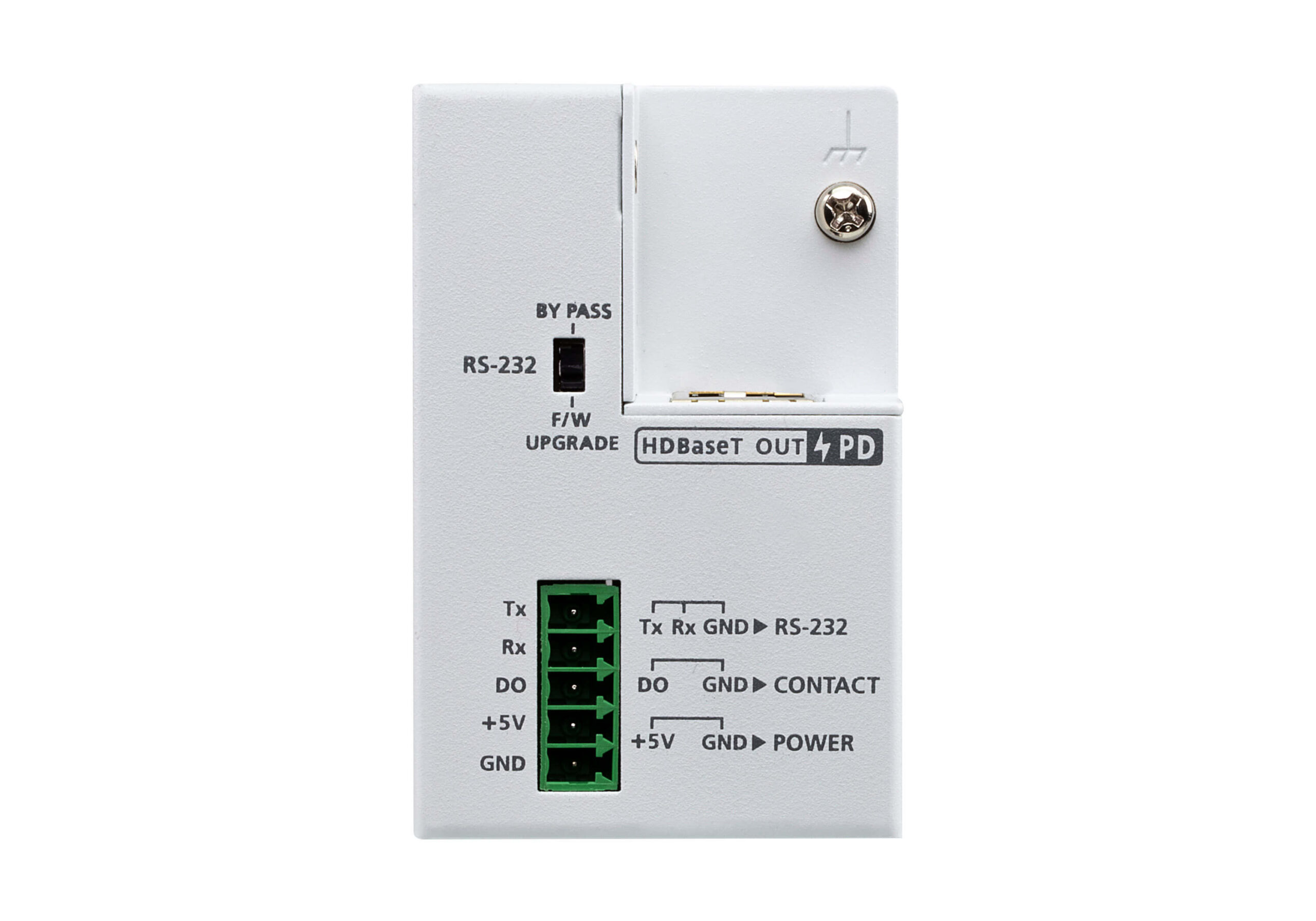

RS-232 Channel 1 x Terminal Block (3 pole, TX/RX/GND, Green)
Contact Out 1 x Terminal Block (2 pole, DO/GND, Green)

Connectors

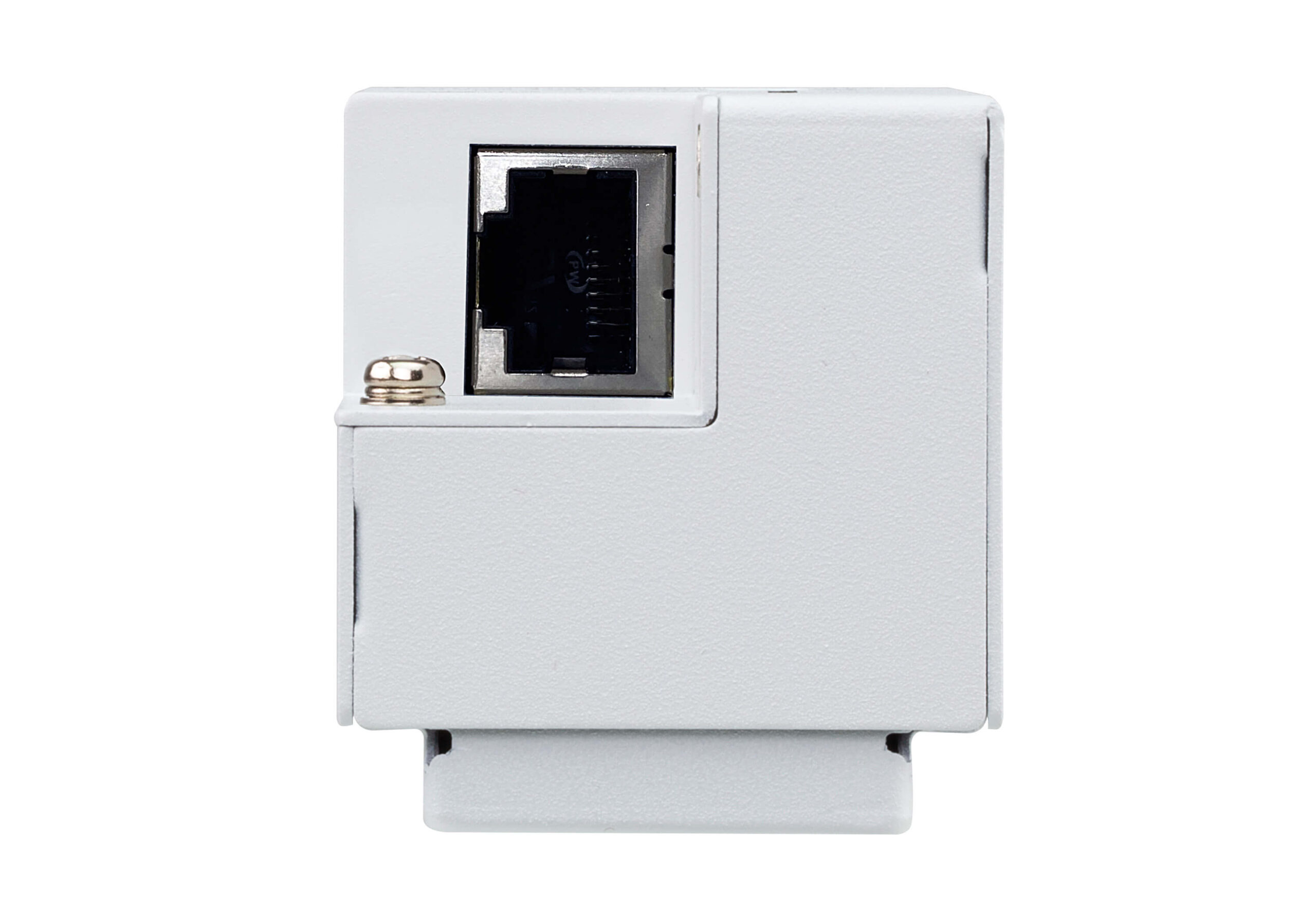

Unit To Unit 1 x RJ-45 Female
Power 1 x Terminal Block (2 pole, +5V/GND, Green) or
1 x RJ-45 Female (POH)

Power Consumption
DC5V:3.26W:15BTU
POH:4W:19BTU

Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0% – 80% RH, Non-condensing
Physical Properties
Housing Metal
