Aten 8 x 8 HDMI Matrix Switch with Scaler, Seamless Switching, FrameSync and Intuituve web GUI | VM5808HA-AT-U

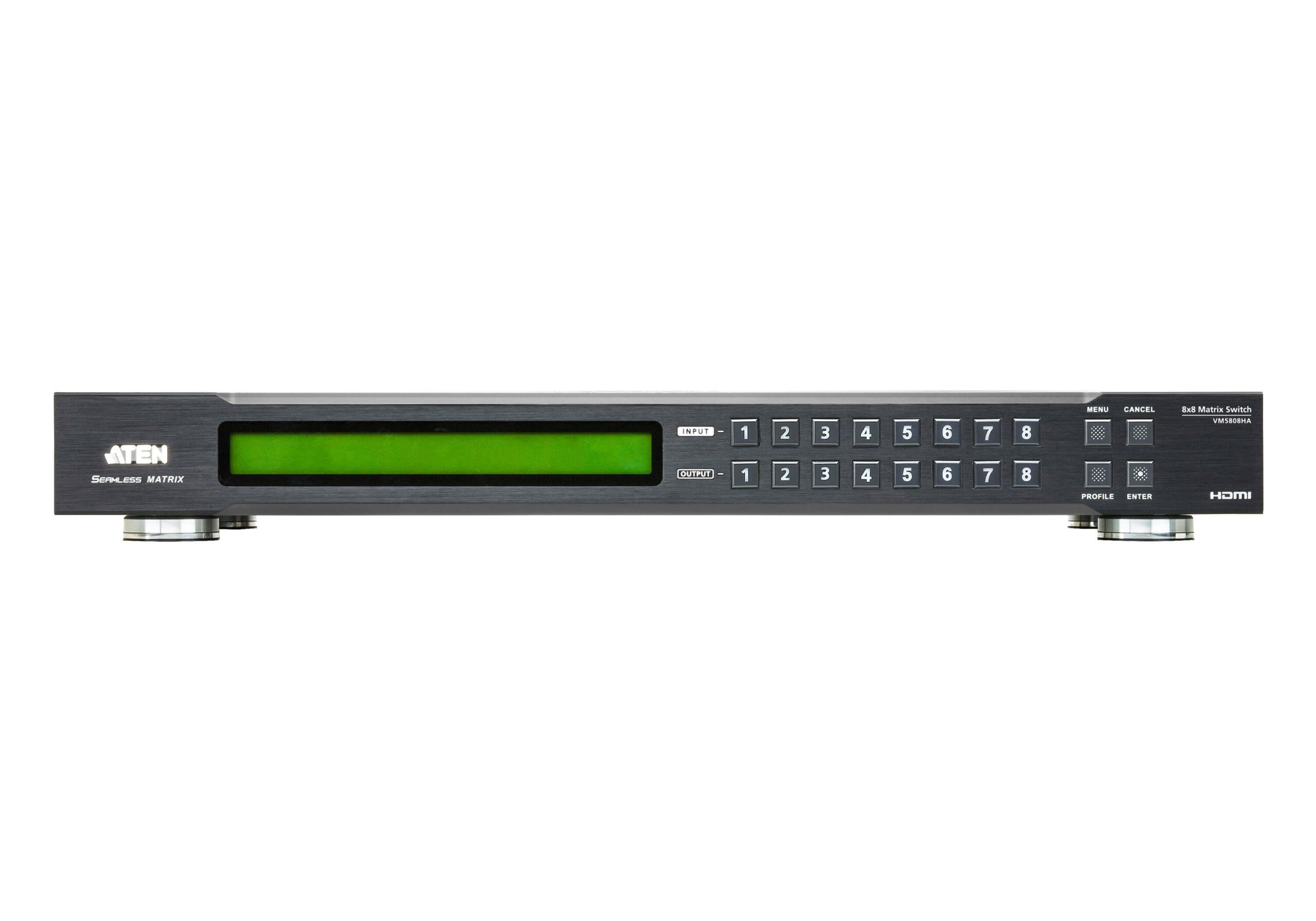

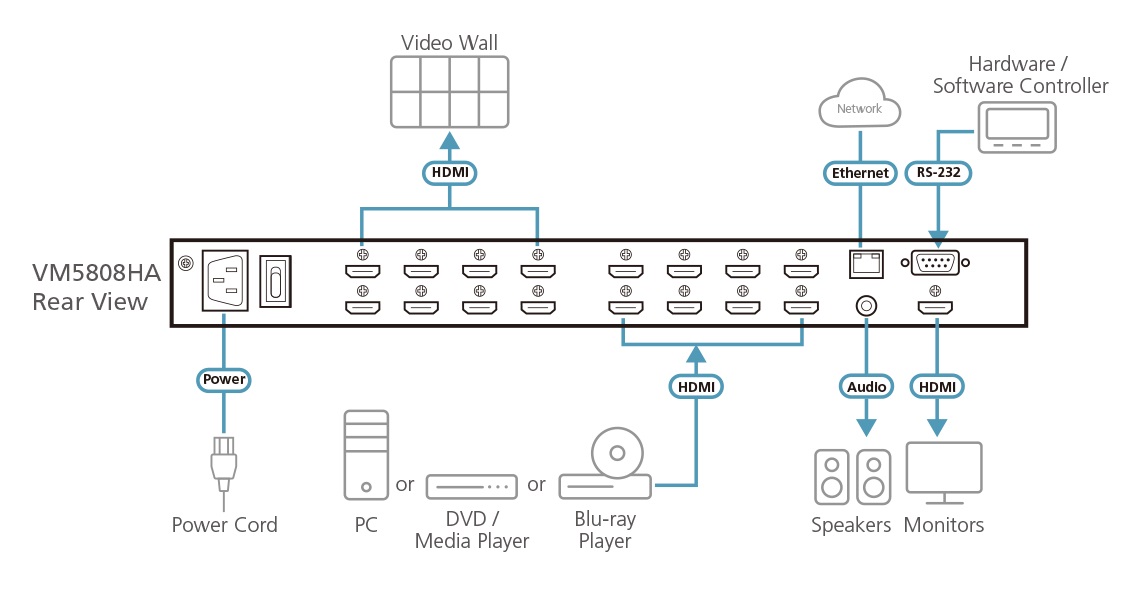

The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.

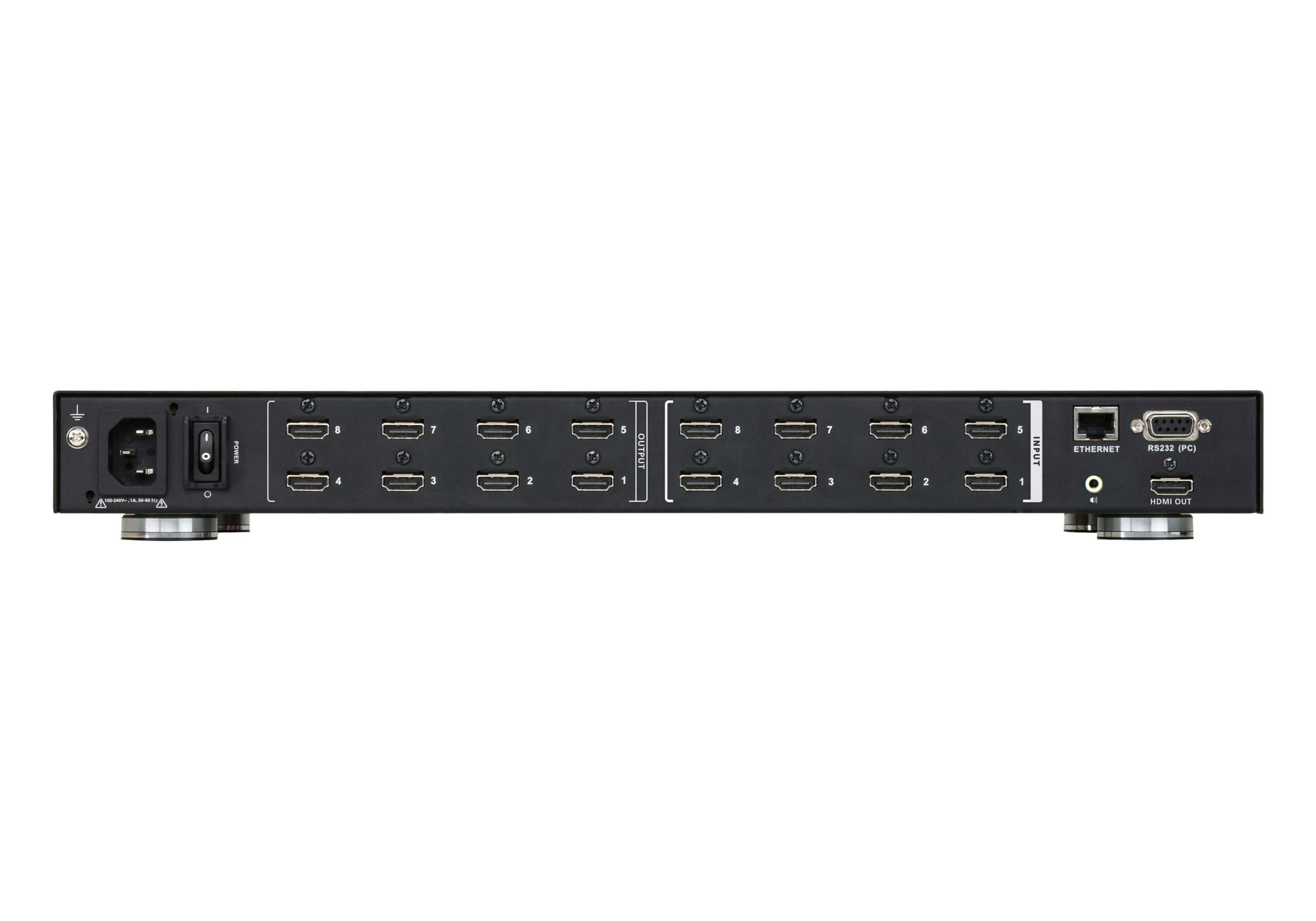

Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5.0 m

Video Output
Interfaces 8 x HDMI Type A Female (Black)
(Array Mode): 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15 m

Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p
Max. Distance Up to 15 m

Audio
Output 1 x Mini Stereo Jack Female (Green)

Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)

Power
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A
Power Consumption AC110V:58.1W:272BTU
AC220V:56.6W:265BTU

Environmental
Operating Temperature 0-40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing

Physical Properties
Housing Metal
