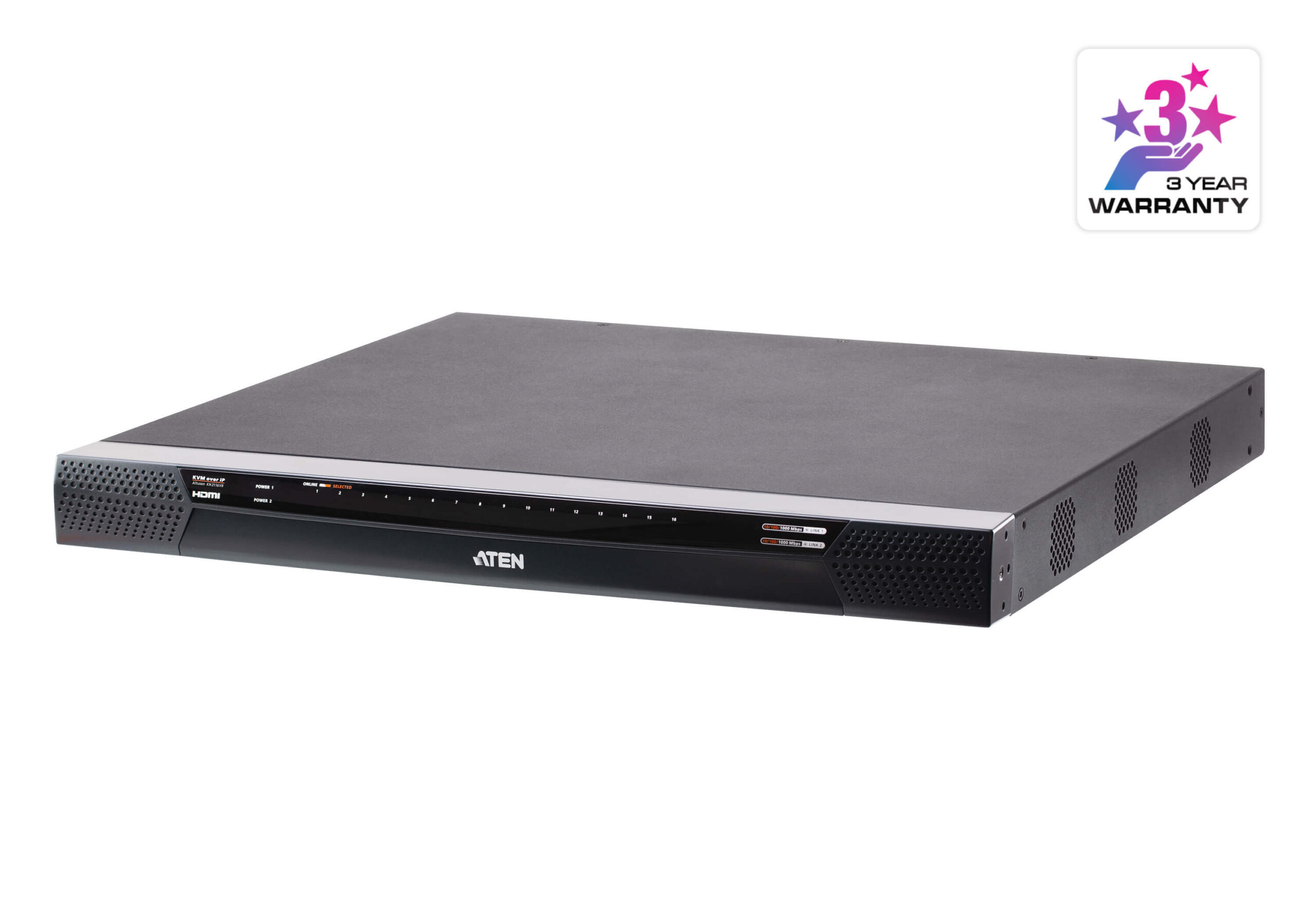

Aten 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch | KN2116VB-AX-U

The KN series KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app – PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user’s iPad.

High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
2 separate buses for remote KVM over IP access (varies by different models)
Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual power supply
Superior video quality – video resolution up to 1920 x 1200 @ 60 Hz, 24-bit color depth; transmission distance of up to 50m
Cascadable – controls up to 512 computers
Console Connections
Local 1
Remote 2
Computer Connections
Direct 16
Maximum 512 (via Cascade)
Port Selection Pushbuttons, Hotkeys, GUI

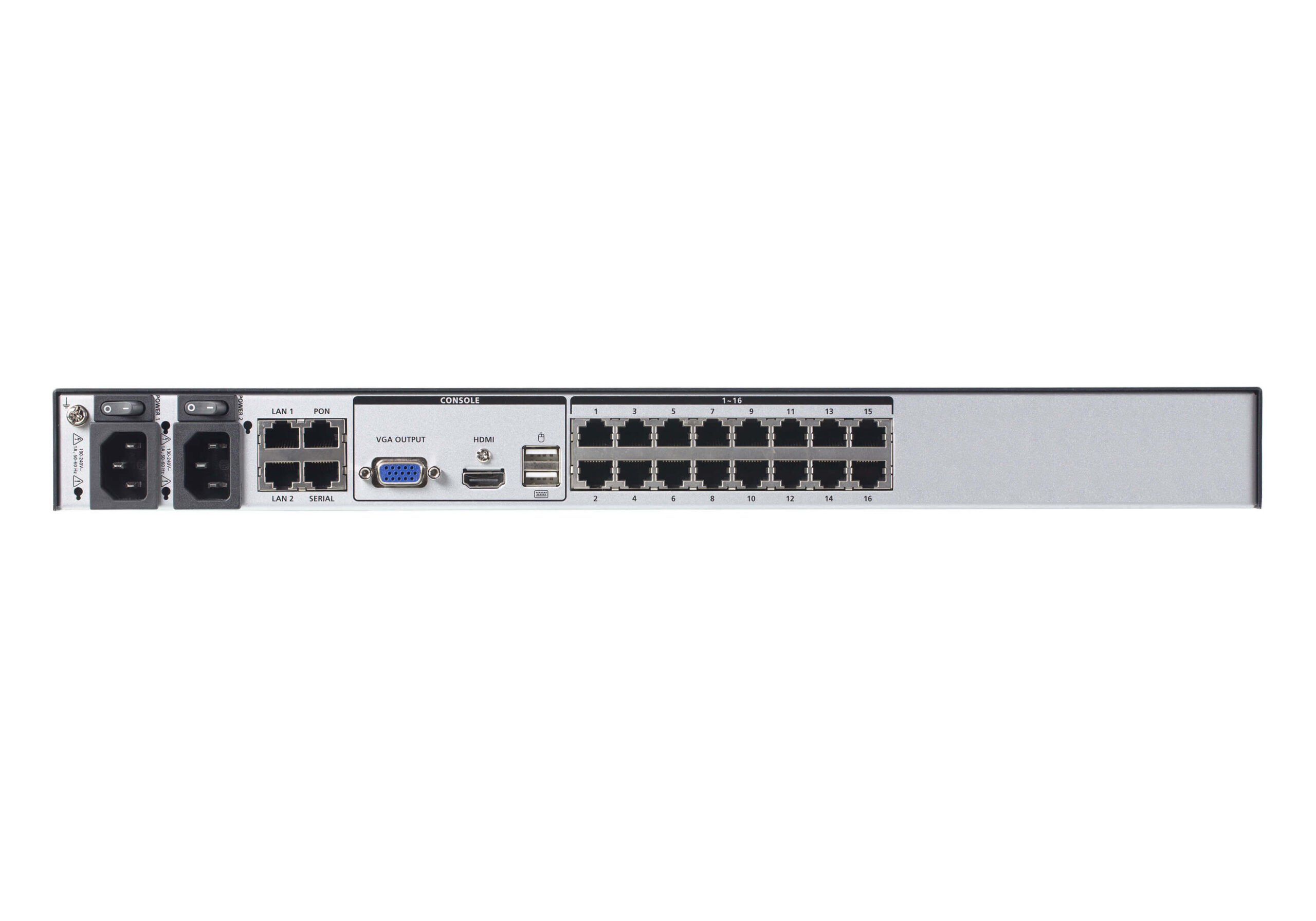

Connectors
Console Ports 2 x USB Type-A Female (White)
1 x HDMI Female (Black)
1 x VGA HDB-15 (Blue)
USB Port 3 x USB Type-A Female
Audio 2 x Audio Jack Female
Laptop USB Console (LUC) Port 1 x USB Mini-B Female
KVM Ports 16 x RJ-45 Female
Serial 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
PON 1 x RJ-4
