ASUS AMD TUF GAMING B650E-PLUS WIFI (AM5) ATX Motherboard, DDR5 256GB, PCIe 5.0 x16, 3x M.2, 4x SATA, Wi-Fi 6E, 2.5Gb LAN, 1x HDMI, 1x DP | TUF GAMING B650E-PLUS WIFI

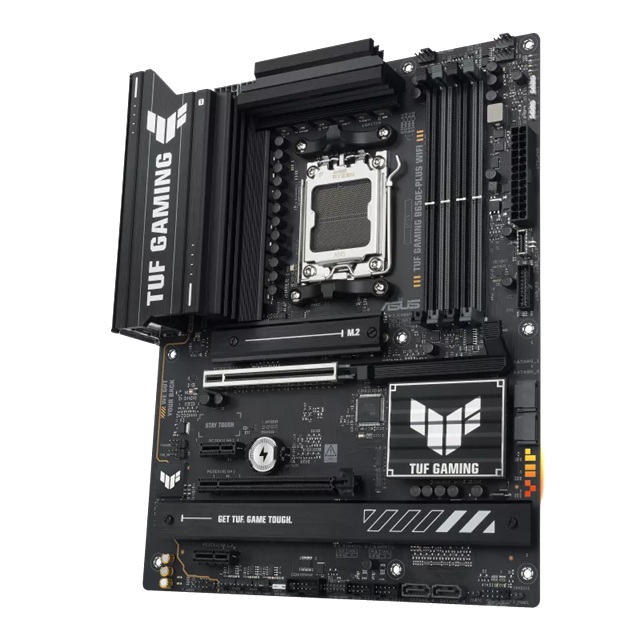

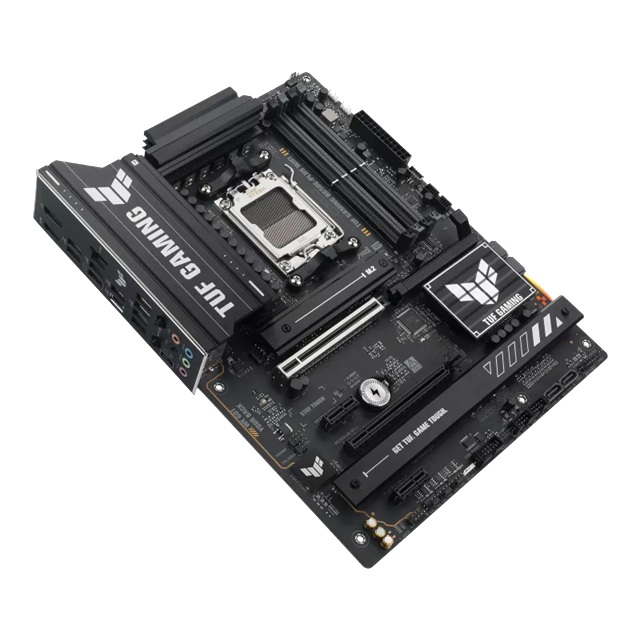

ASUS AMD TUF GAMING B650E-PLUS WIFI (AM5) ATX Motherboard

ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

SPECIFICATIONS
Model
TUF GAMING B650E-PLUS WIFI

News Updates
Socket AM5

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 8000 7000 Series Desktop Processors*

Chipset
AMD B650 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 8000 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x DisplayPort**
1 x HDMI™ port***

Expansion Slots
AMD Ryzen™ 9000 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
2 x PCIe 4.0 x1 slots

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**

USB
Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Operating System
Windows 11, Windows 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
