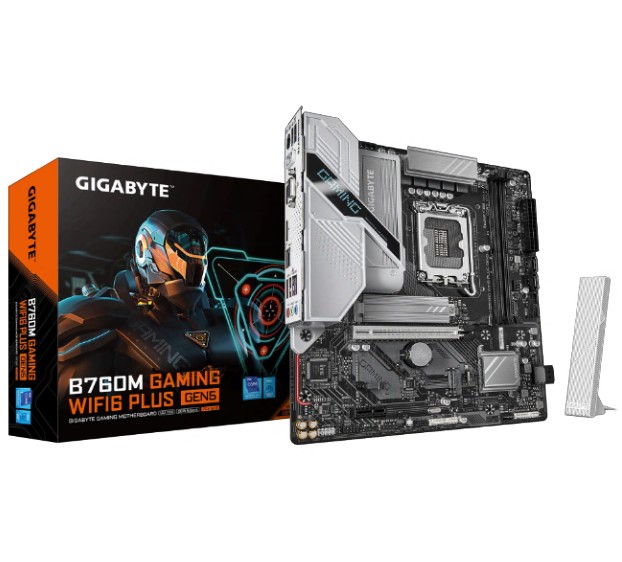

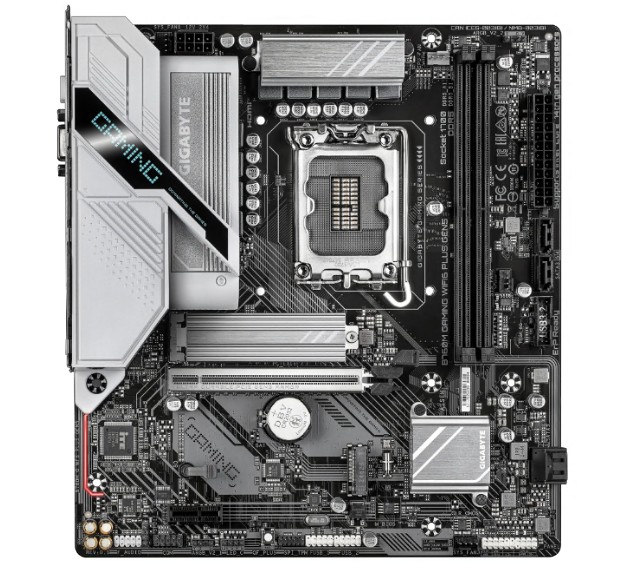

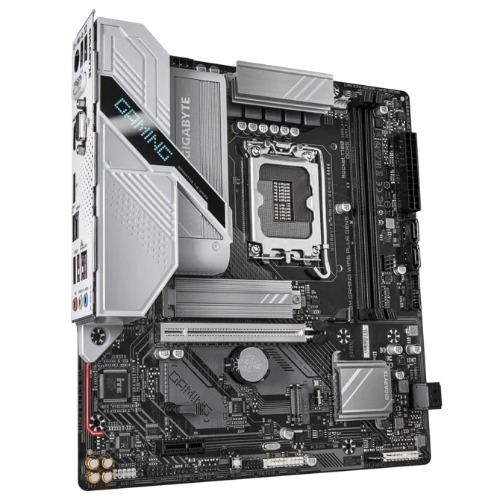

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard, 2xDDR5 ~128GB, 1xPCI-E x16, 1xPCI-E x1, 2xM.2, 4xSATA, 5xUSB 3.2, 2xUSB 2.0 | B760M GAMING WIFI6 PLUS GEN5

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Intel LGA 1700 m-ATX Motherboard, 2xDDR5 ~128GB, 1xPCI-E x16, 1xPCI-E x1, 2xM.2, 4xSATA, 5xUSB 3.2, 2xUSB 2.0

Specification:

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
Intel® B760 Express Chipset

Memory
14th and 13th Generation Intel® Core™ i9/i7 Processors:
– Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
– Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Realtek® Wi-Fi 6 RTL8851BE
– WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 80MHz wireless standard

Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
– 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

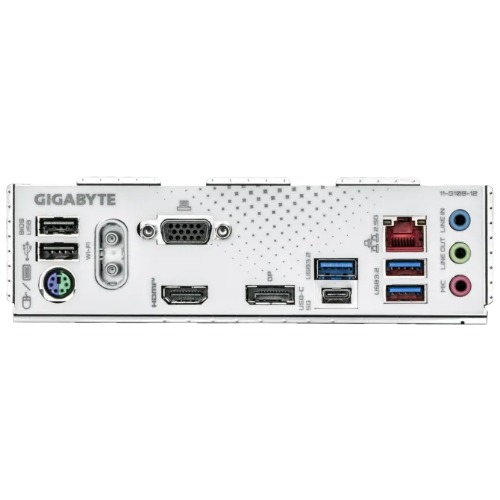

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (1T1R)
1 x D-Sub port (Note)
1 x HDMI port (Note)
1 x DisplayPort (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

Product Last Updated: 17/07/2026
