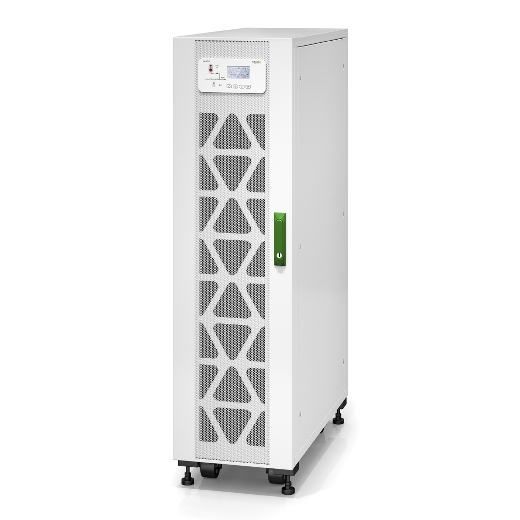

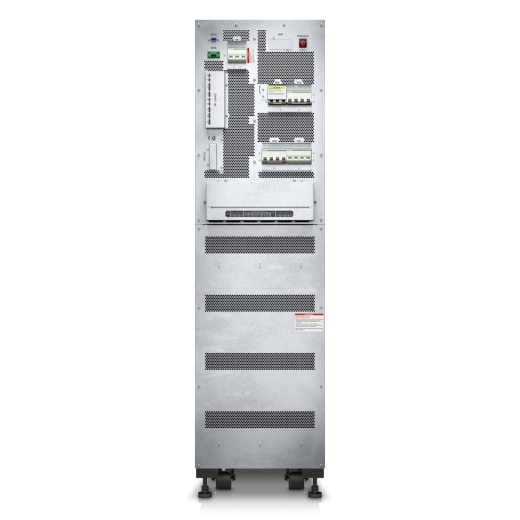

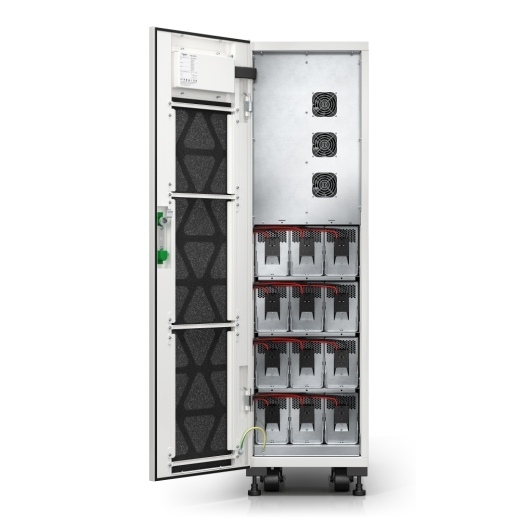

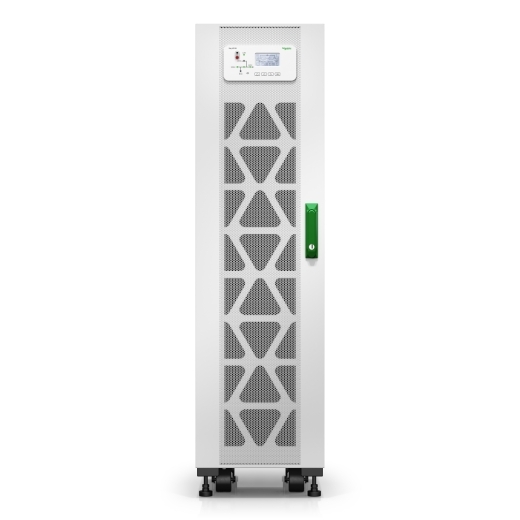

APC Easy UPS 3S 10kVA 400V 3:3 UPS for internal batteries | E3SUPS10KHB

APC Easy UPS 3S 10kVA 400V 3:3 UPS for internal batteries

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.
Main Input Voltage- 400 V 3 phases
Other Input Voltage- 380 V, 415 V
Main Output Voltage- 400 V 3 phases
Other Output Voltage- 380 V, 415 V
Rated power in W- 10 kW
Rated power in VA- 10 kVA
Provided equipment
Dust filter- Installation guide
Range of product- Easy UPS 3S
Maximum input current 18 A
Input harmonic distortion Less than 3 % for full load
Load power factor 0.9 leading to 0.9 lagging
Input Power Factor at Full Load 0.99
Input voltage limits- 304…477 V
Network frequency- 45…65 Hz
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3333 ft
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 60 dBA
Heat dissipation 516 W
IP degree of protection IP20

Compatible Batteries- E3SBT4, E3SBTH4, E3SXR6
Compatible Cables- E3SOPT016
Compatible Spare parts- LV429390, E3SOPT001, E3SOPT003
Compatible Interface connections- E3SOPT002, E3SOPT003
Compatible Options- E3SOPT007, E3SOPT008

Product Last Updated: 17/07/2026
