ViewSonic TD2223-2 22′ IR Touch Monitor, Intuitive 10-point touchscreen, Finger, stylus, and glove touch compatible, Magnetic pen placeholder | TD2223-2

TD2223-2 22′ In-Cell Touch Monitor with USB Type-C Input and Advanced Ergonomics 2024 version

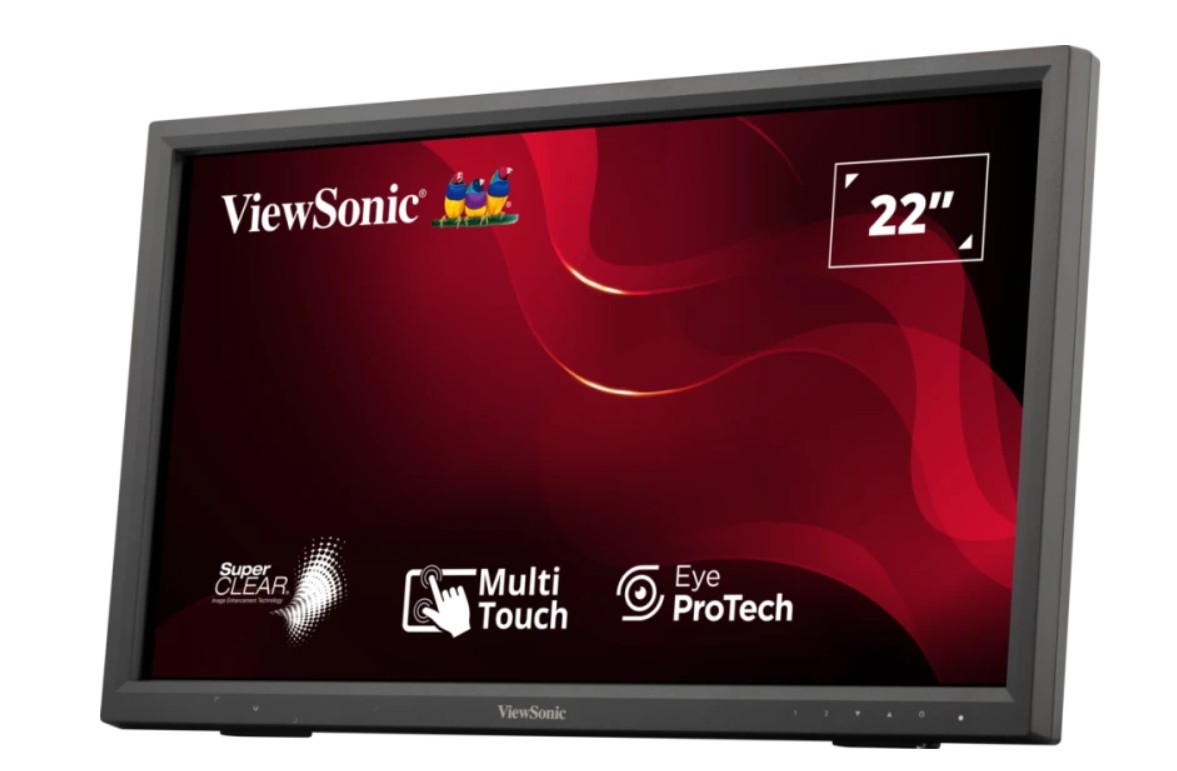

22′ IR Touch Monitor
Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

Versatile touch applications
Efficient multitasking
Touch annotation for presentations
Accurate yet smooth touch experience
Comfortable working angles quickly start your work
Touch support with Windows, Android, Chrome, Linux and Raspberry Pi
Power Supply: Internal Power Supply

Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Blue Light Filter: Yes
Flicker-Free: Yes

VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
PACKAGE CONTENTS: TD2223 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1

Product Last Updated: 11/12/2025
