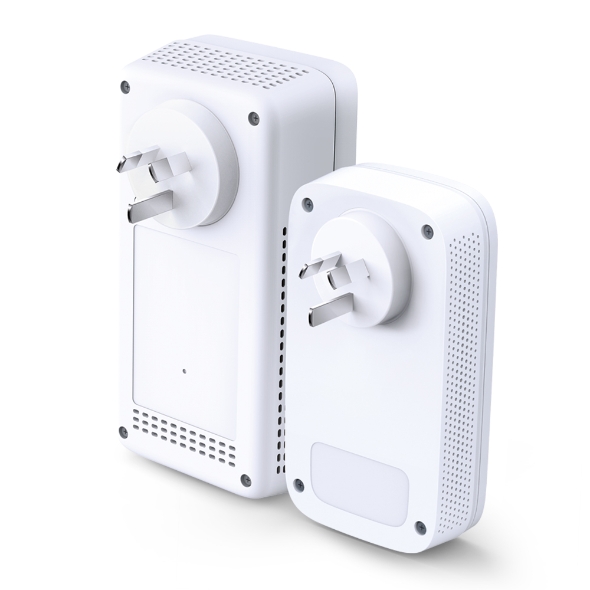

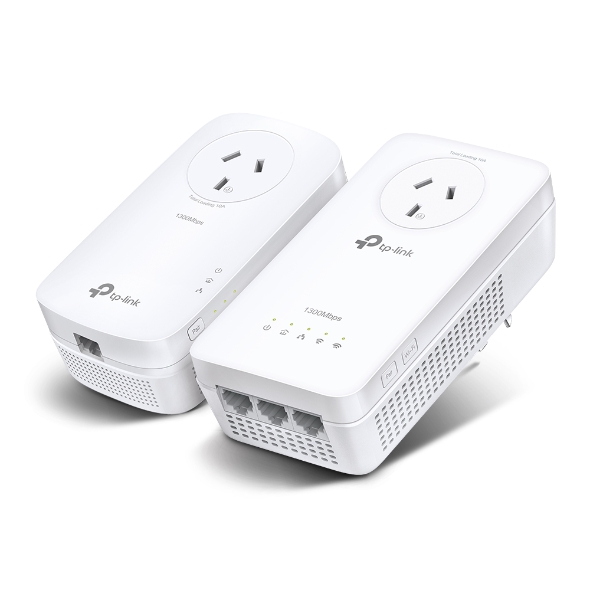

TP-Link TL-WPA8631P KIT AV1300 Gigabit Passthrough Powerline AC Wi-Fi Kit AV2 300Mbps 867Mbps 2x2MU-MIMO 300m Range | TL-WPA8631P KIT

TP-Link TL-WPA8631PKIT AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit

• HomePlug AV2 Standard – Provides ultra-fast powerline transfer speeds of up to 1300 Mbps*
• AC1200 Dual-Band Wi-Fi – Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz*
• OneMeshTM – Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home
• 2 × 2 MIMO – Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
• One-Touch Wi-Fi Configuration – One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
• Wi-Fi Auto-Sync – Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
• Plug and Play – Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
• Extra Power Socket – Get power from the outlet for your other devices with the integrated power socket
• 3 × Gigabit Ports – Provide secure wired networks for desktops, smart TVs or games consoles

HARDWARE FEATURES
Plug Type AU
Standards and Protocols HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz)
Interface 3 Gigabit Ethernet Ports, 1 Power Socket
Button Pair, LED On/Off, Wi-Fi, Reset
Power Consumption TL-WPA8631P: Maximum: 13W, Typical: 11W
TL-PA8010P: Maximum: 4.9W, Typical: 4.6W
LED Indicator Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)
Dimensions ( W x D x H ) TL-WPA8631P: 75 × 42 × 152 mm
TL-PA8010P: 72 × 42 × 131 mm

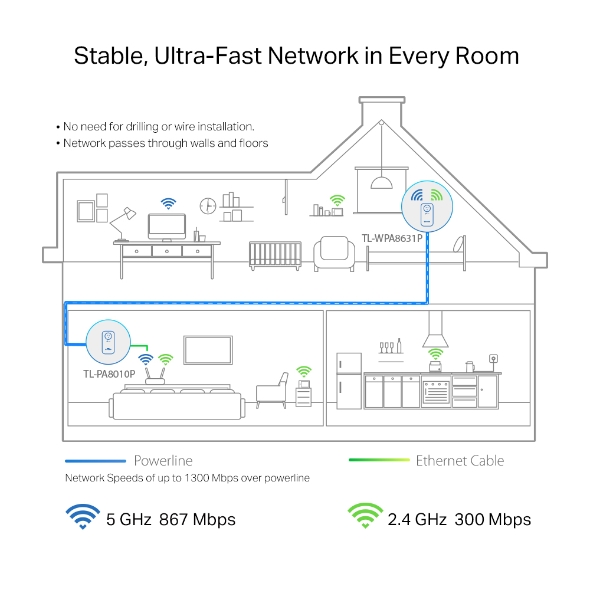

Range Up to 300 meters over existing electrical wiring
Compatibility Compatible with all HomePlug AV HomePlug AV2 standard powerline adapters
Transmission Speeds
Powerline: up to 1300 Mbps
Ethernet: 10/100/1000 Mbps
