TP-Link TL-WA801N 300Mbps Wireless N Access Point, Multiple Operation Modes, WPA2, Included Passive POE Injector | TL-WA801N

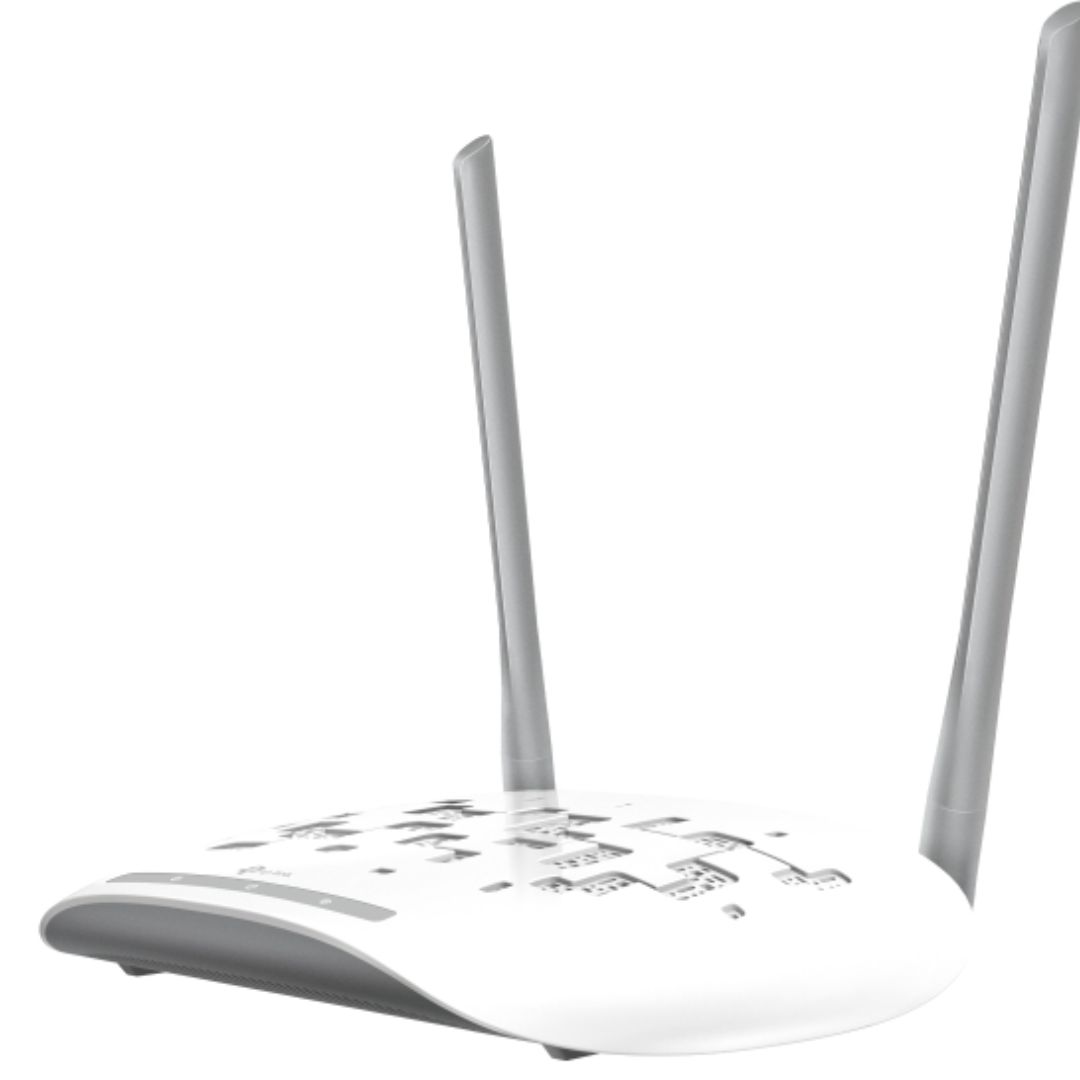

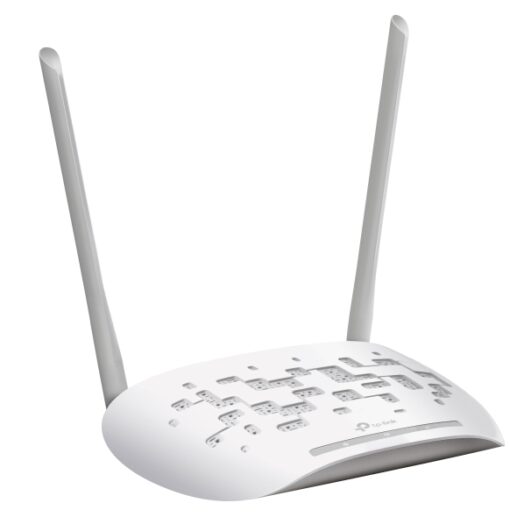

TP-Link TL-WA801N 300Mbps Wireless N Access Point
• 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
• Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
• Protects your home network with WPA2 encryption and makes quick connection with the push of a button
• Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

HARDWARE FEATURES
Interface 1× 10/100 M Ethernet Port(RJ45)
Support Passive PoE
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)
Antenna Type 2 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency 2.4 GHz
Signal Rate 300 Mbps at 2.4 GHz
Reception Sensitivity 11g 6Mbps: -90dBm
11g 54Mbps: -77dBm
11n HT20 MC7: -73dBm
11n HT40 MC7: -70dBm
Transmit Power CE: <15dBm; FCC: <20dBm Wireless Modes AP Mode Multi-SSID Mode Client Mode Range Extender Mode Wireless Functions Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor Wireless Security WEP, WPA/WPA2, WPA/WPA2-PSK encryptions Quality of Service WMM Management SNMP Advanced Functions Up to 30 meters Passive PoE is supported OTHERS Certification CE, FCC, RoHS Package Contents Wireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) Environment Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90   Product Last Updated: 10/04/2026
