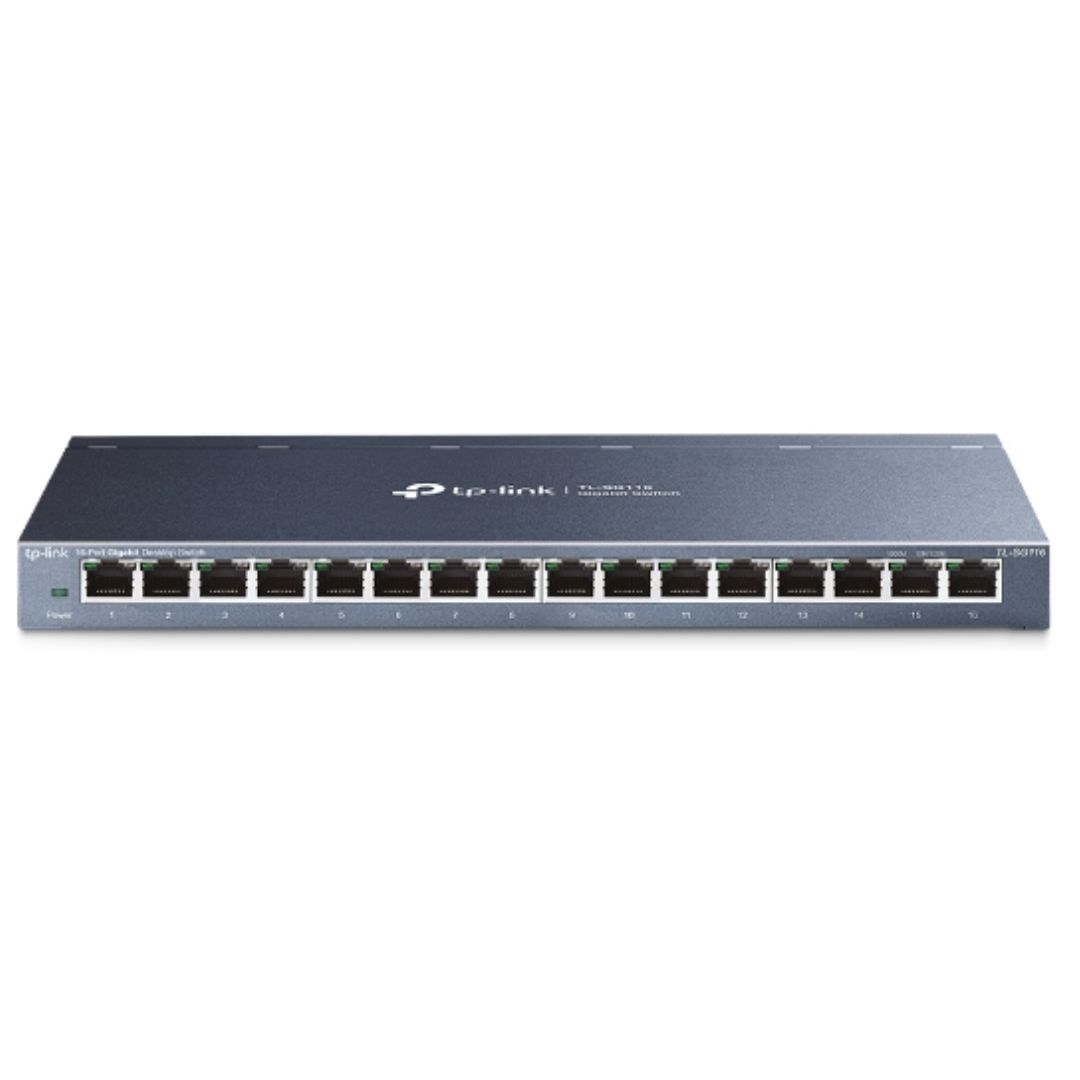

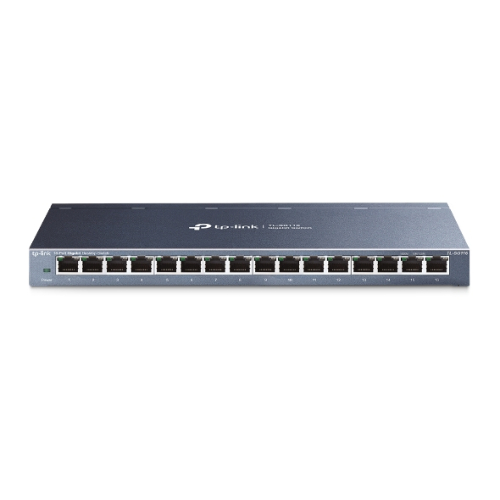

TP-Link TL-SG116 16-Port Gigabit Unmanaged Desktop/Wall Mounting Switch 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless | TL-SG116

TP-Link TL-SG116 16-Port Unmanaged Gigabit Desktop/Wall Mounting Switch 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless

16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, with no configuration needed

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Power Consumption Maximum: 10.0W
External Power Supply External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
PERFORMANCE
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing

Product Last Updated: 12/09/2026
