TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For all PoE Ports, Up To 30W Each Port | TL-SG1005LP

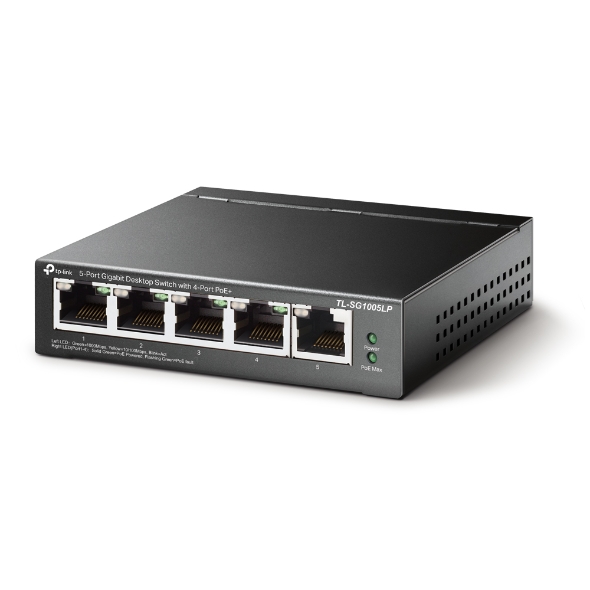

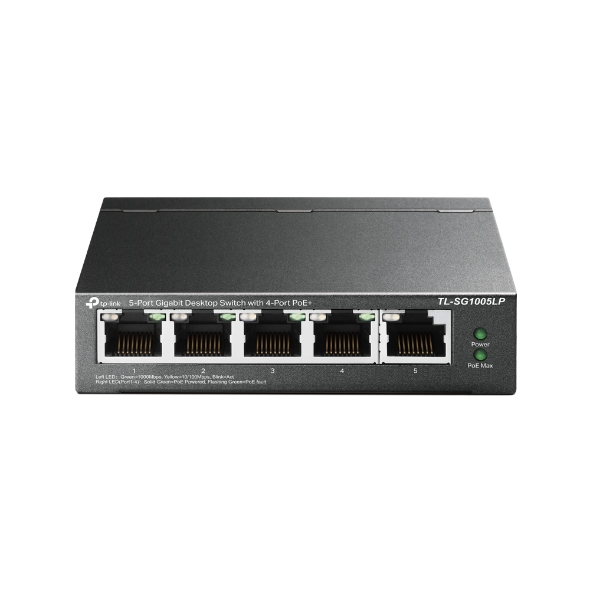

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

• 5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 40 W for all PoE ports*
• Plug and play, no configuration and installation required

HARDWARE FEATURES
Interface • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption • 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation • 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG1005LP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Product Last Updated: 28/04/2025
