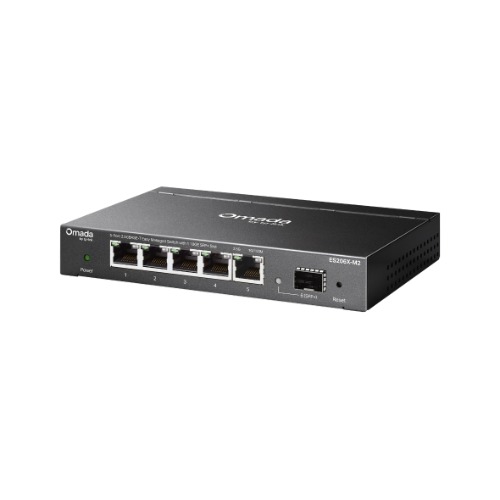

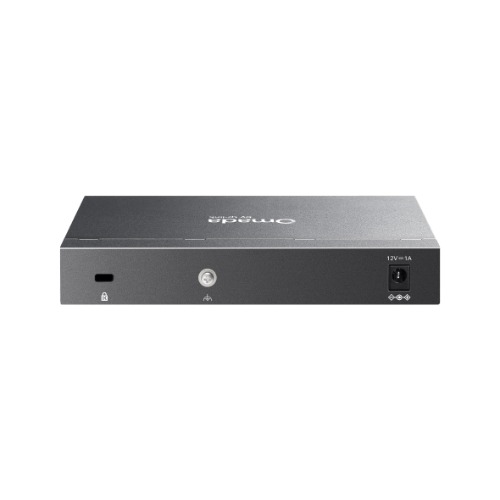

TP-Link Omada ES206X-M2 2.5G Easy Managed Network Switch, 5× 2.5GbE Ports + 10G SFP+, Fanless Design, VLAN, QoS, IGMP Snooping, 5-Year Warranty | ES206X-M2

TP-Link Omada ES206X-M2 2.5G Easy Managed Network Switch, 5× 2.5GbE Ports + 10G SFP+, Fanless Design, VLAN, QoS, IGMP Snooping, 5-Year Warranty

SPECIFICATION

HARDWARE FEATURES

Interface
•5× 2.5 Gbps RJ45 Ports
•1× 10 Gbps SFP+ Slot
•Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
•Fanless
Installation
•Desktop
•Wall Mount
Physical Security Lock
•√
Power Supply
•DC Power Adapter
•(Output: 12 VDC / 1 A)
Dimensions ( W x D x H )
•6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Surge Protection
•±6kV for Ethernet Ports

SOFTWARE FEATURES

Quality of Service
• Port-based/802.1p/DSCP QoS△
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control

L2 Features
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP

L2 Multicast
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave

VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method
•Store-And-Forward

Warranty Period: 5-Year

Product Last Updated: 10/04/2026
