TP-Link MCRP100 100-240V Redundant Power Supply Module for TL-MC Series Media Converter, Up to 102 watts output power | MCRP100

TP-Link TL-MCRP100 100-240V Redundant Power Supply Module for TL-MC Series Media Converter

Up to 102 watts output power
Output over-voltage/short circuit/over-current protection

What this product does

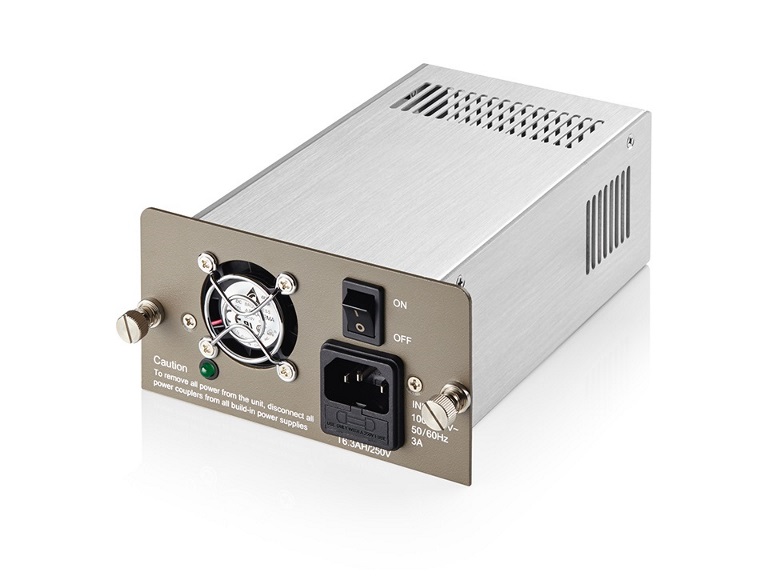

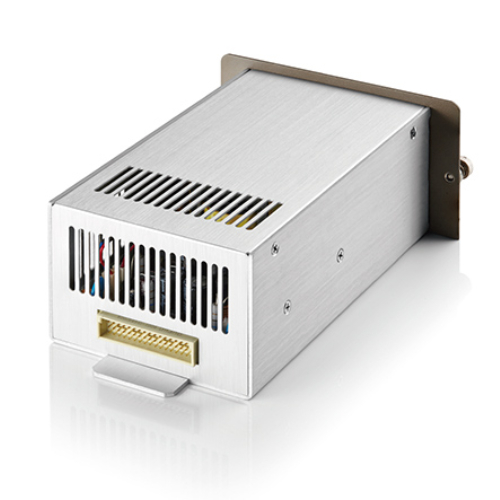

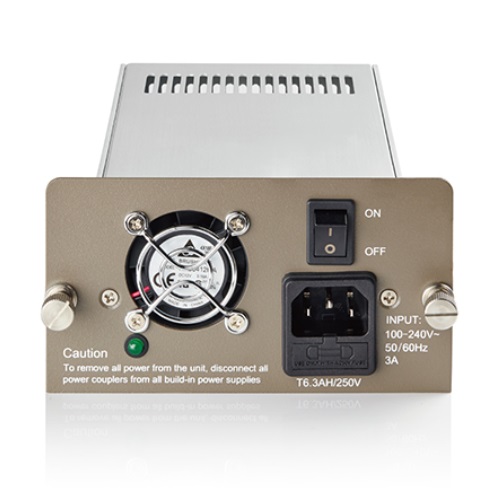

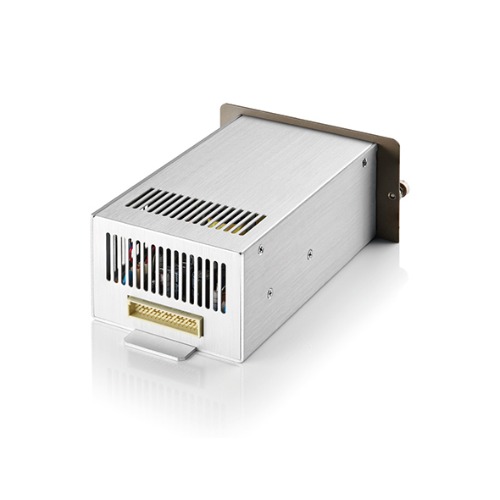

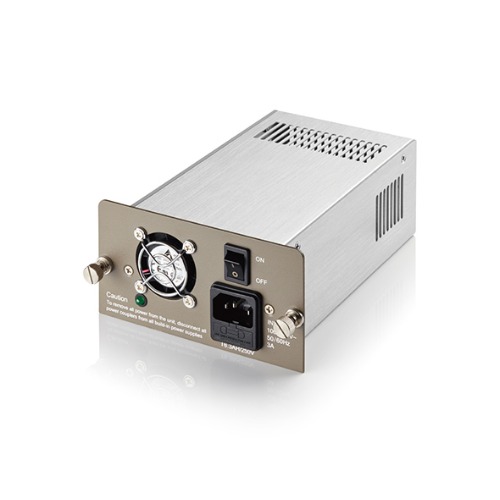

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.

REDUNDANT POWER SUPPLY
AC Power Input 100-240V~ 50/60Hz 3A
DC Power Output 9.5V/9.5A
Dimensions 210*130*70 mm
Environment Operating Temperature: 0℃~60℃ (32℉~140℉)
Storage Temperature: -35℃~85℃ (-31℉~185℉)
Operating Humidity: 20%~90%RH non-condensing
Storage Humidity: 10%~95%RH non-condensing

Product Last Updated: 15/06/2025
