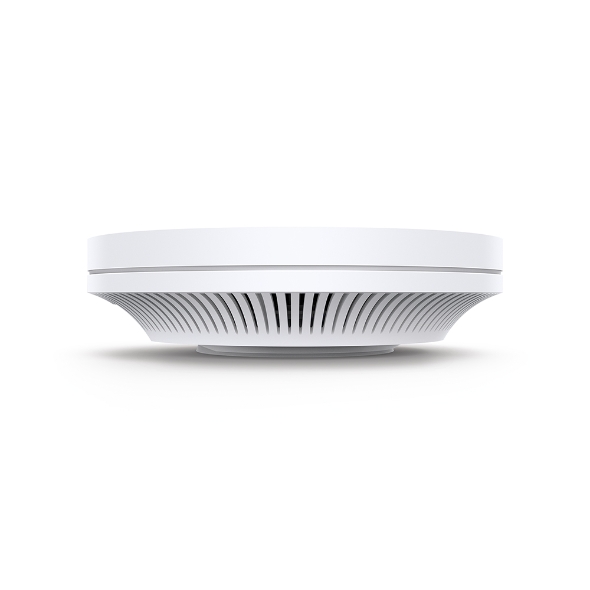

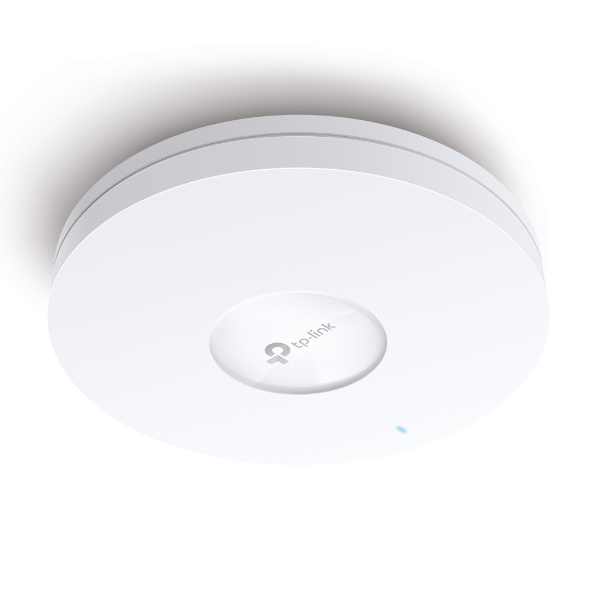

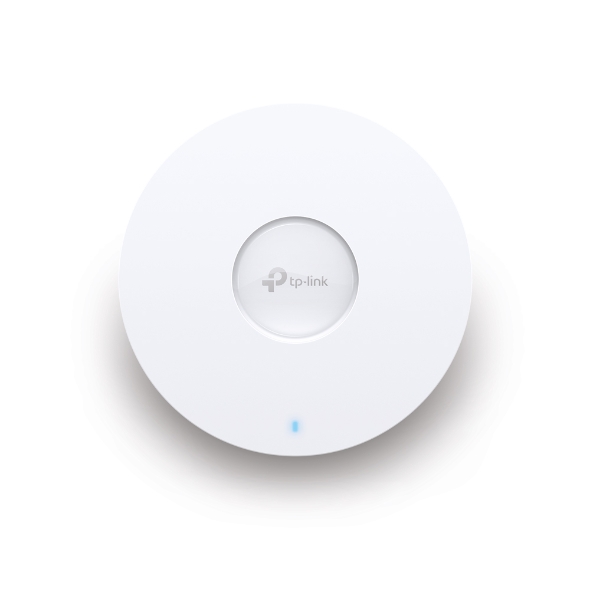

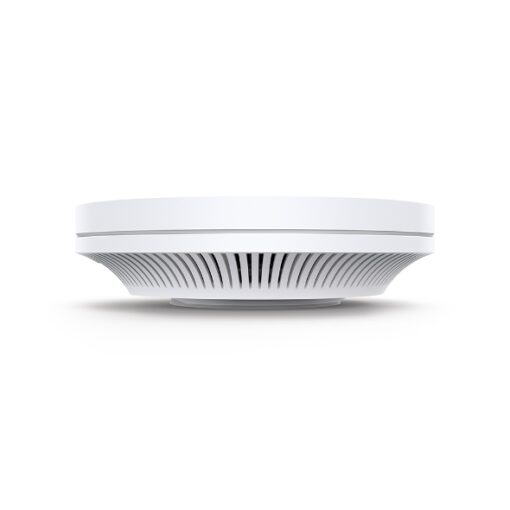

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V DC
Power Consumption • EU: 18.5 W
• US: 21.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3

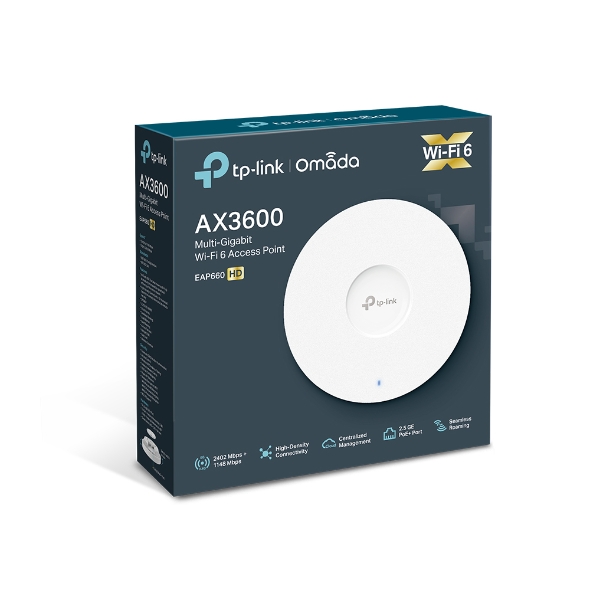

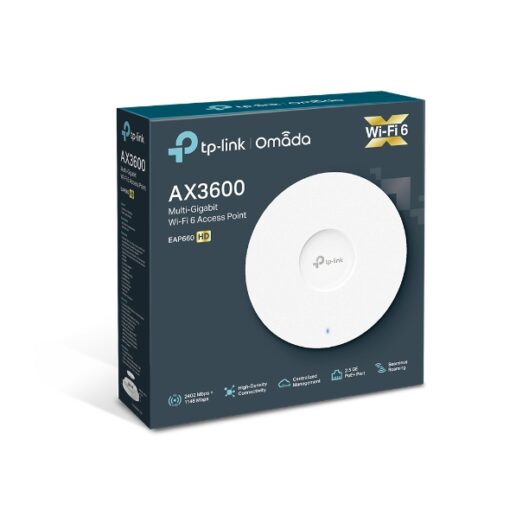

Package Contents • EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
Product Description Last Updated: 29/09/2025
Scott White –
I recently installed the TP-Link EAP660 HD Omada AX3600 in my home office, and overall, I’m quite impressed. The setup was straightforward, and the mountable design allowed me to place it discreetly on the ceiling. Speeds are fantastic, with 2402Mbps at 5GHz, which has made streaming and video calls a breeze. I love the MU-MIMO technology that keeps my devices connected without any lag, making multitasking possible. However, I did run into a few minor hiccups with the initial configuration—some settings took a bit of trial and error to get just right. That said, once it was up and running, I’ve had steady connections throughout my house. TP-Link has really delivered with this access point, blending performance and practicality nicely!
