TP-Link EAP615-Wall Omada AX1800 Wall Plate WiFi 6 Access Point, 1201/574 Mbps, 4x Gigabit Ethernet Port, 2x Antenna, Centralised Management | EAP615-Wall

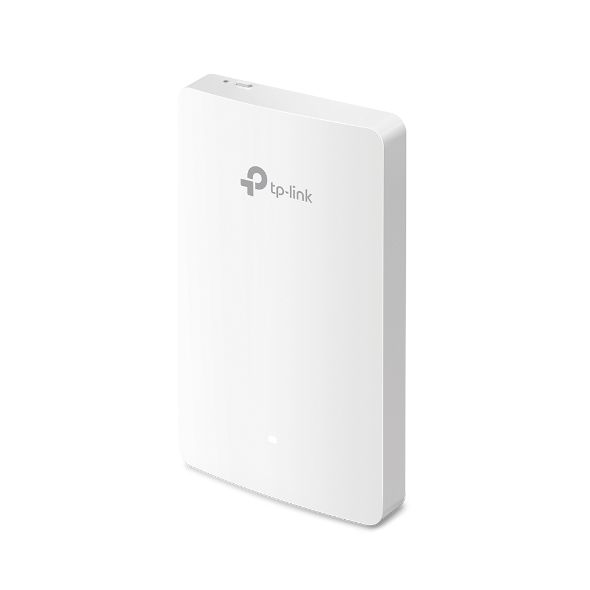

TP-Link EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point

• Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**
• High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

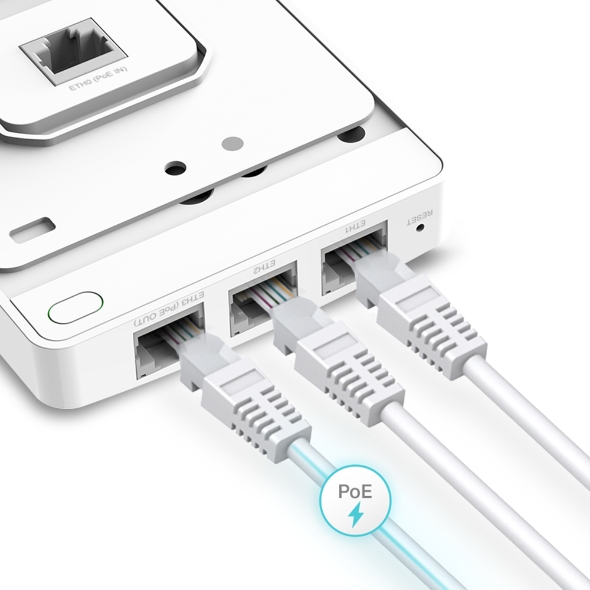

• Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired devices.‡

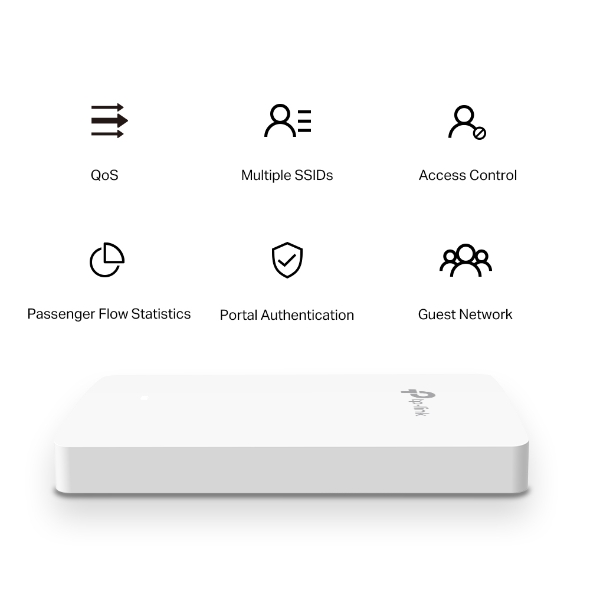

• Centralised Management: Integrates into Omada SDN for cloud access and remote management.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm EU US standard junction box, and 802.3af/at PoE support.

HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)

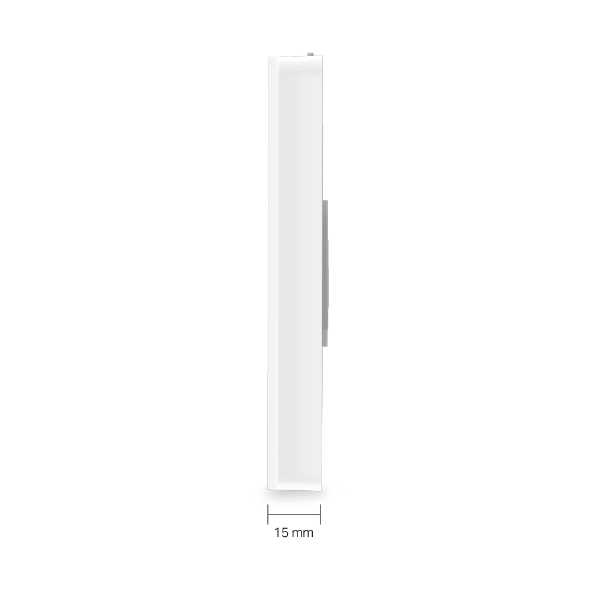

Dimensions 143 × 86 × 20 mm
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)

Product Description Last Updated: 29/09/2025
