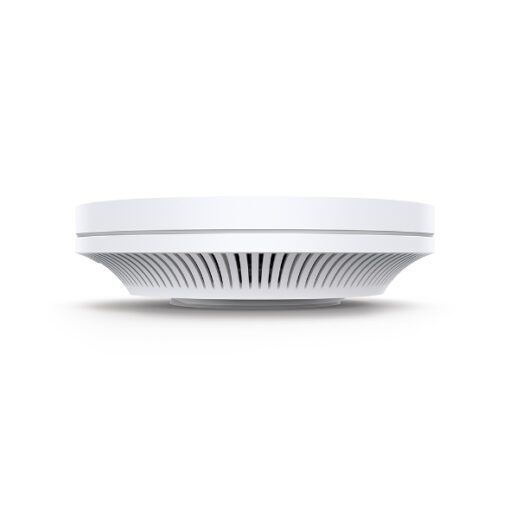

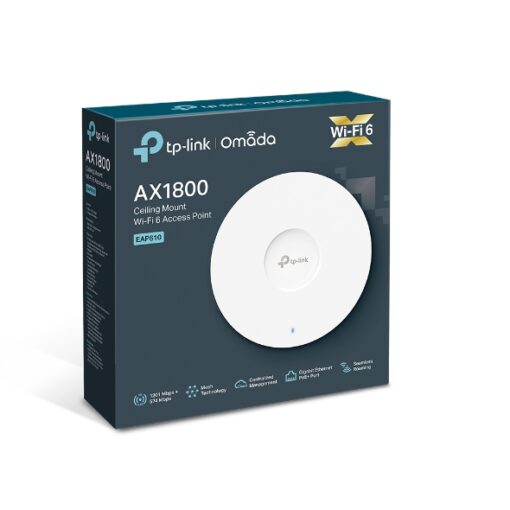

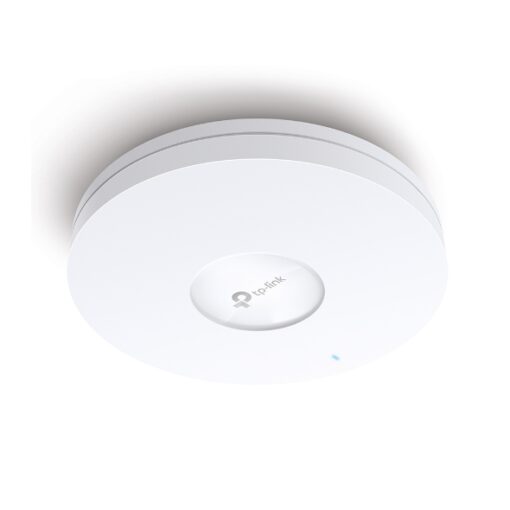

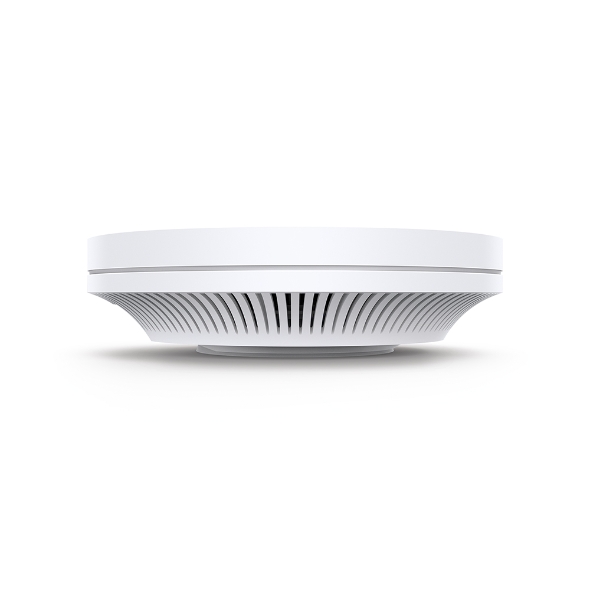

TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralised Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
• PoE+ Powered: Supports both Powers over Ethernet (802.3at) and DC power supply for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V / 1 A DC
Power Consumption • EU: 12.8 W (For PoE); 10.8 W (for DC)
• US: 13.9W (For PoE); 11.8 W (for DC)
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

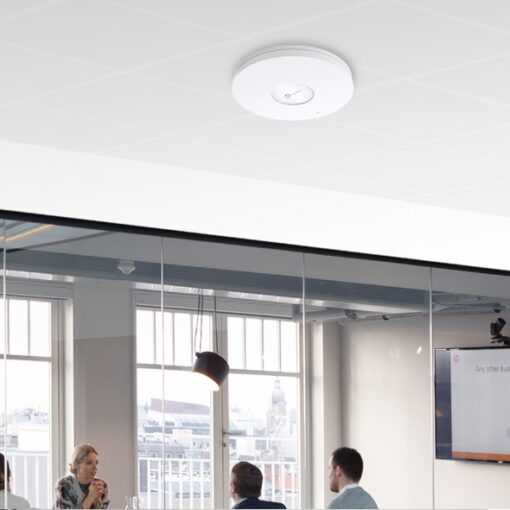

Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Product Description Last Updated: 29/09/2025
Barbara Lopez –
I recently installed the TP-Link EAP610 and I’m really impressed! The WiFi 6 capabilities are a game-changer—am I the only one that finds the speeds at 1201 Mbps on the 5GHz band incredibly fast? Setting it up was a breeze with their Omada cloud management, but I wonder how well it holds up in a busy home with multiple devices. Overall, it’s made a significant difference in our connectivity; has anyone else noticed that too?
Karen Murphy –
I recently installed the TP-Link EAP610 Omada AX1800, and I have to say, I’m impressed! The WiFi 6 capability offers super-fast speeds—1201 Mbps on 5GHz is a game changer for streaming and gaming. Have you ever used a ceiling mount access point before? I wasn’t sure what to expect, but this thing blends in nicely and has drastically improved the signal throughout my home. Plus, being powered by PoE+ is a neat feature for easier placement. Overall, I’m really happy with my decision!
Anthony Kelly –
I recently installed the TP-Link EAP610 Omada, and while it does deliver solid performance with that WiFi 6 speed, I have to admit, it’s not without its quirks. The setup process was a bit more involved than I expected, but once it was up and running, the coverage was impressive for my home office. I appreciate the centralized cloud management feature, which is great, but I wonder if I fully tap into its potential given how technical it can be. Overall, it’s a decent choice, just be ready to invest some time in getting everything just right!
