TP-Link EAP225-Outdoor Omada AC1200 1200Mbps Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Passive PoE Weatherproof High Gain Long Range Ant. | EAP225-Outdoor

TP-Link EAP225-Outdoor Omada AC1200 1200Mbps Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Passive PoE Weatherproof High Gain Long Range antena

Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps with 2×2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Free Omada Controller software enables administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS anthentication help to boost your business
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES

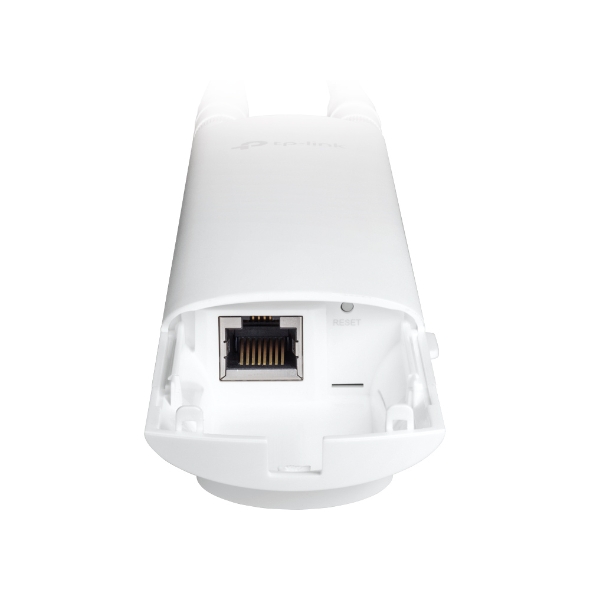

Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af PoE and 24 Passive PoE(PoE Adapter Included)
Power Consumption 10.5W
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)

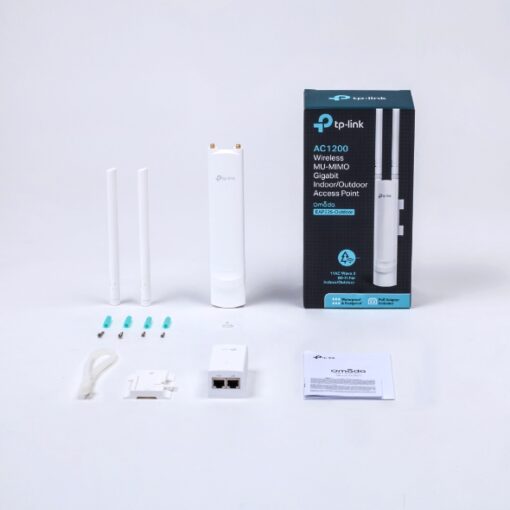

Mounting Pole/Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Det

Product Last Updated: 10/04/2026
