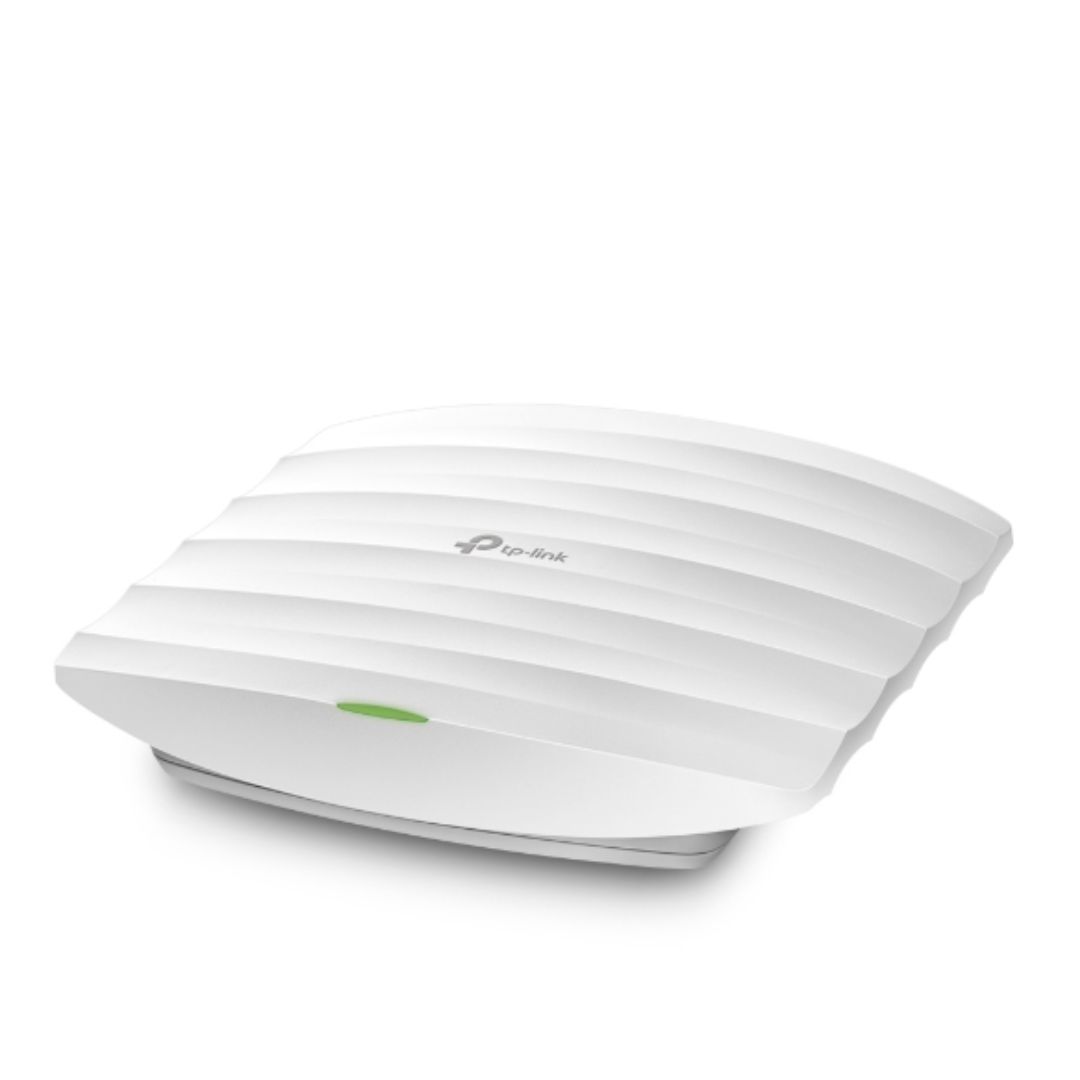

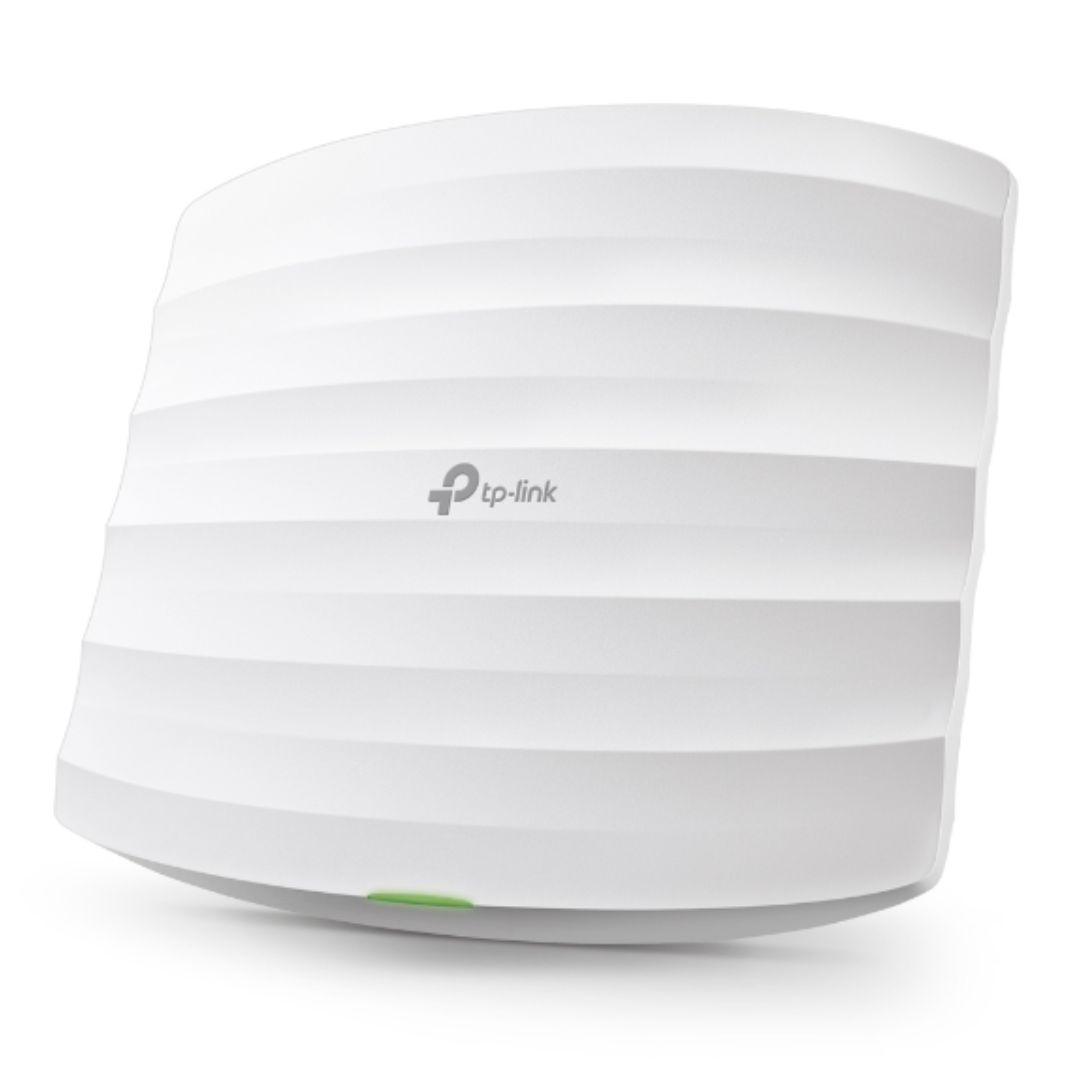

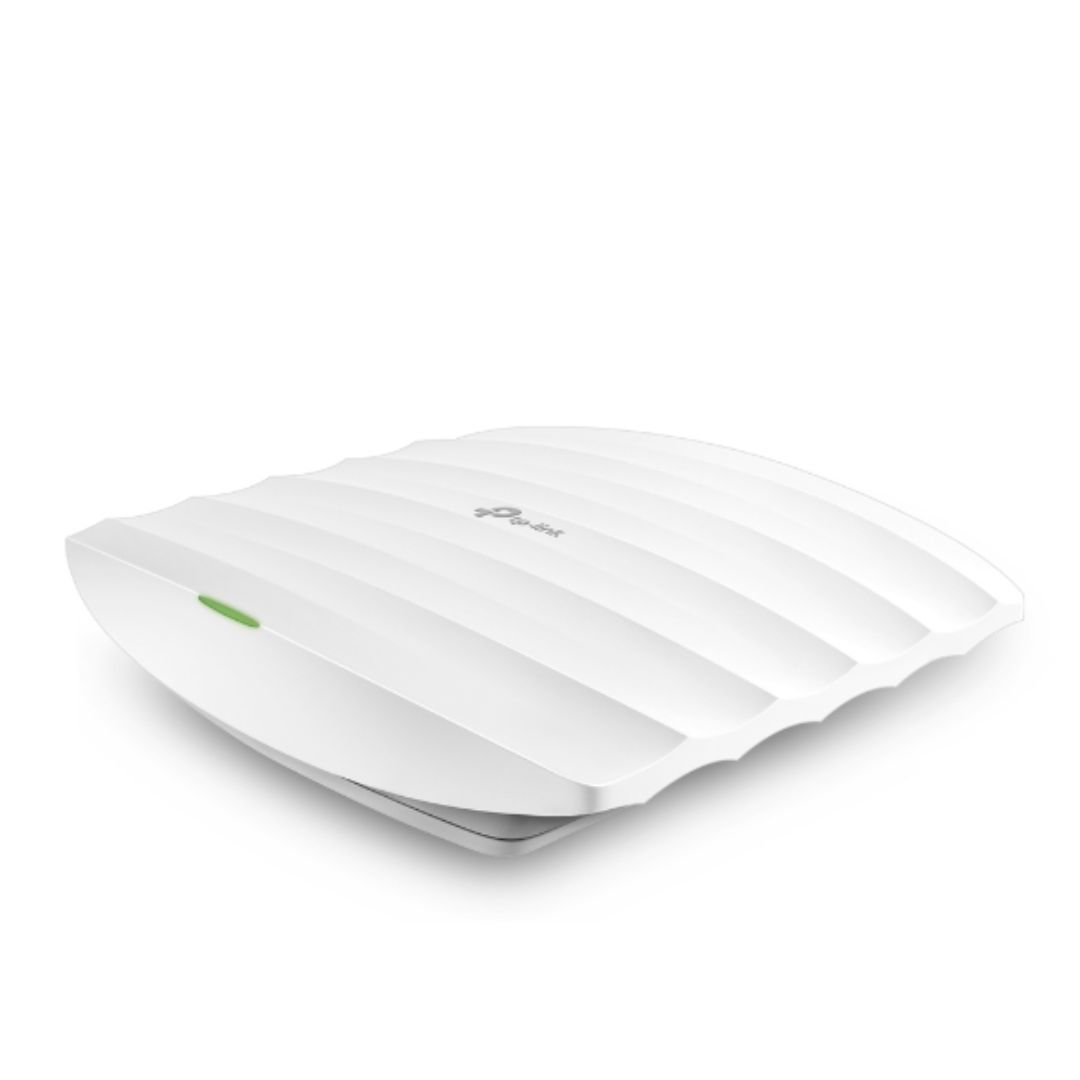

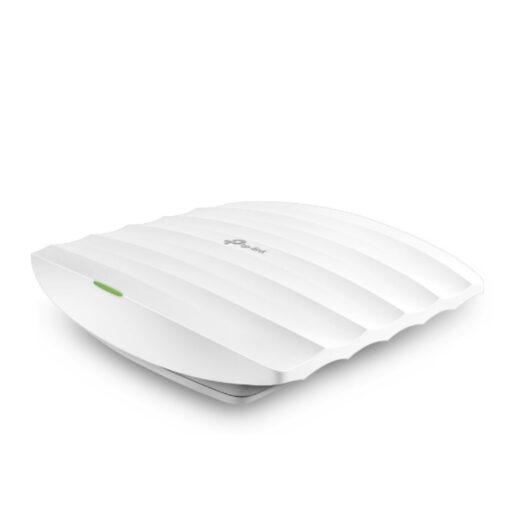

TP-Link EAP225 AC1200 Wireless Dual Band Gigabit Ceiling Wall Mount Access Point 1200Mbps PoE 1xGbps LAN Internal Omni Antenna Load balance Multi-SSID
Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Support Power over Ethernet(802.3af) for convenient and affordable installation
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 10.15 W
Antenna Type Internal Omni
2.4GHz: 2* 4dBi
5GHz: 2*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz 5GHz) Product Description Last Updated: 29/09/2025
Justin Reed –
I recently installed the TP-Link EAP225 Omada AC1350 Wireless Access Point, and overall, I’ve been pretty impressed. The setup was straightforward, and I appreciated the seamless roaming feature, which means I can move around my home without my connection dropping. I’ve noticed a significant improvement in coverage compared to my old router, especially in the far corners of my house where the signal used to struggle.
The MU-MIMO technology really shines when multiple devices are connected; streaming and gaming have been noticeably smoother. However, I did find the user interface for the management controls a bit clunky at times, which could be confusing for less tech-savvy users. Also, while Power over Ethernet (POE) is a great feature, I wish it had come with an adapter out of the box. Still, for the price point, TP-Link has delivered a solid product that I would definitely recommend for anyone needing a robust wire-free solution!
Karen Gonzalez –
I recently installed the TP-Link EAP225 Omada AC1350 Wireless Access Point in my home, and I couldn’t be happier with my choice! Setting it up was a breeze, thanks to the intuitive mobile app that TP-Link provides. I just followed the prompts, and within minutes, I had a robust network up and running. The MU-MIMO technology is a game-changer—during peak usage times when everyone is streaming or gaming, the EAP225 keeps everything smooth and fast without any buffering issues.
What I love most is its seamless roaming feature. I can move around my house without having to worry about losing connection, which is fantastic when I’m on important video calls or watching my favorite shows. The design is also very sleek; it blends right into the ceiling and doesn’t take away from the room’s aesthetics at all.
Plus, the Power over Ethernet (POE) capability made installation incredibly straightforward—just one cable and I was good to go! I’ve seen a noticeable improvement in performance compared to my previous setup. With band steering, the EAP225 automatically directs devices to the less congested band, which is just brilliant. Overall, if you’re looking for a reliable and feature-packed access point, I wholeheartedly recommend the TP-Link EAP225. It’s been an excellent addition to my home network!
