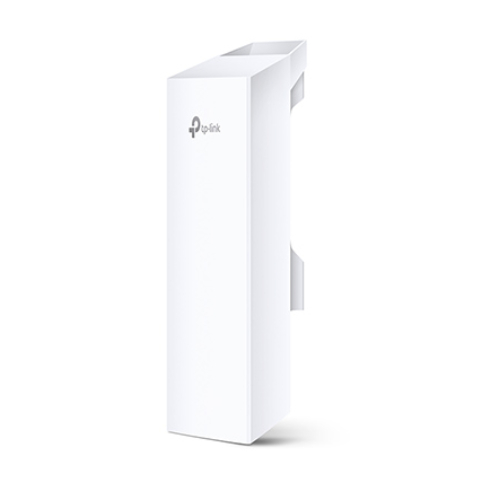

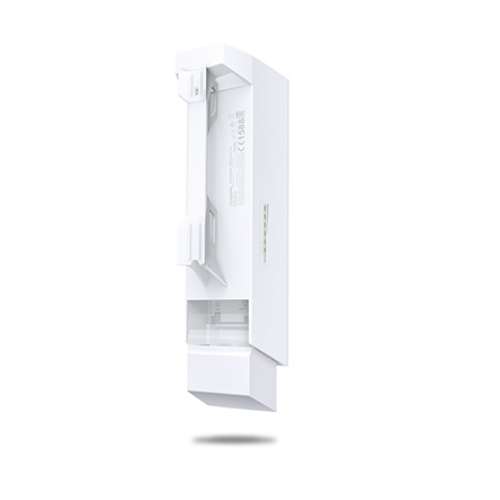

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna | CPE210

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point

Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimizations for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 224 x 79 x 60 mm
Antenna Type Built-in 9dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 35° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitation
