TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2) TX: 1310nm, RX: 1550nm, Up To 2KM Transmission Distance, LC Simplex | SM321B-2

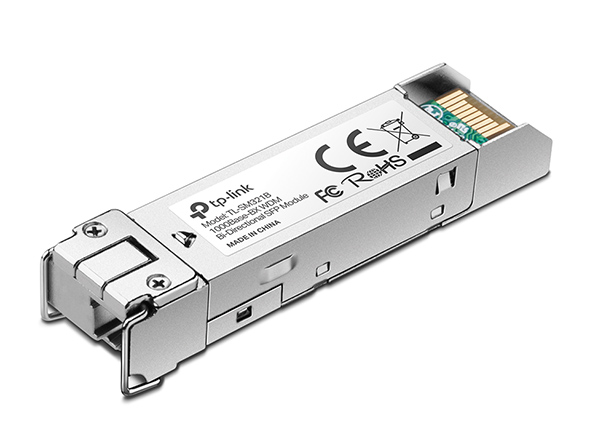

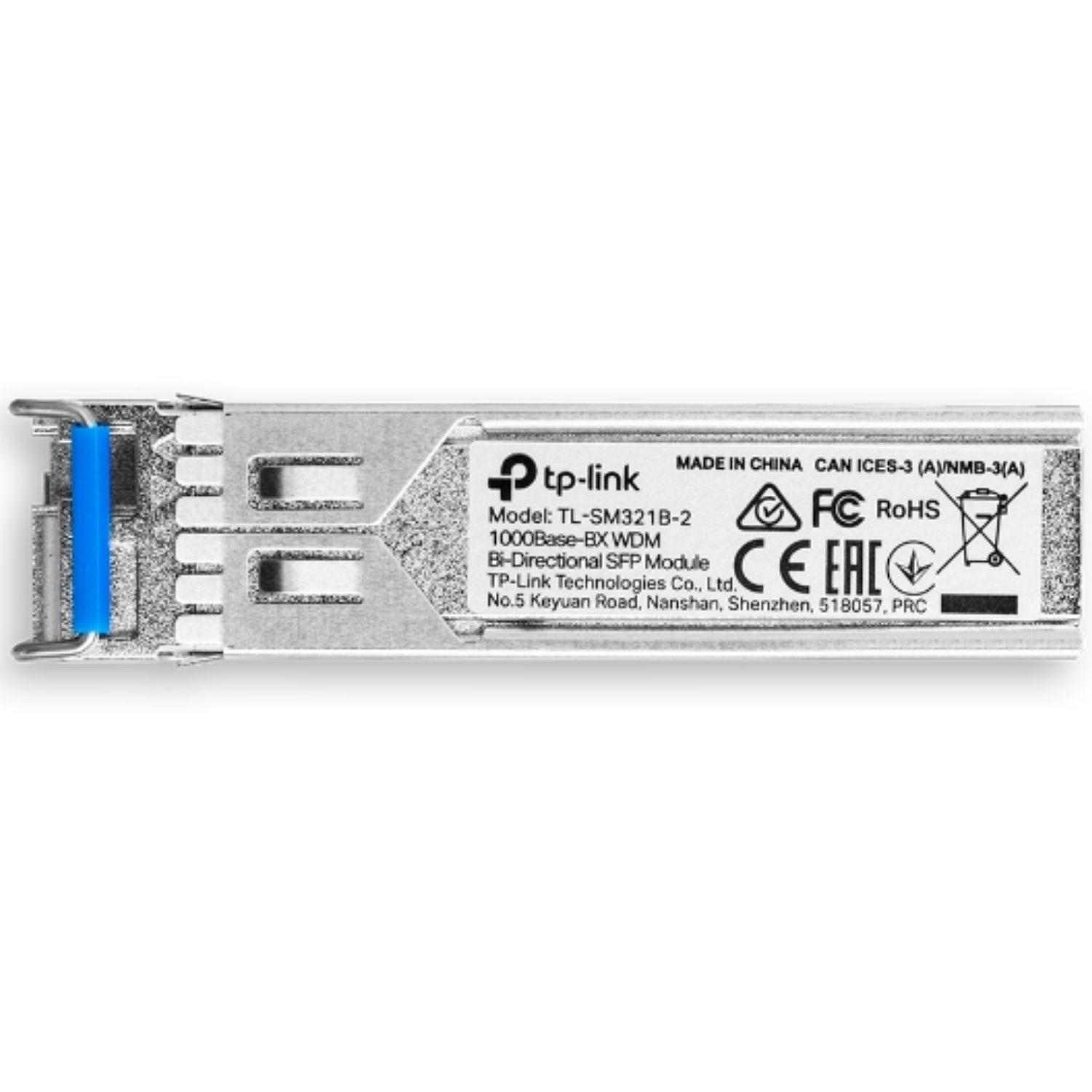

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2)
• Adopts the latest standard 1000Base-BX
• Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)

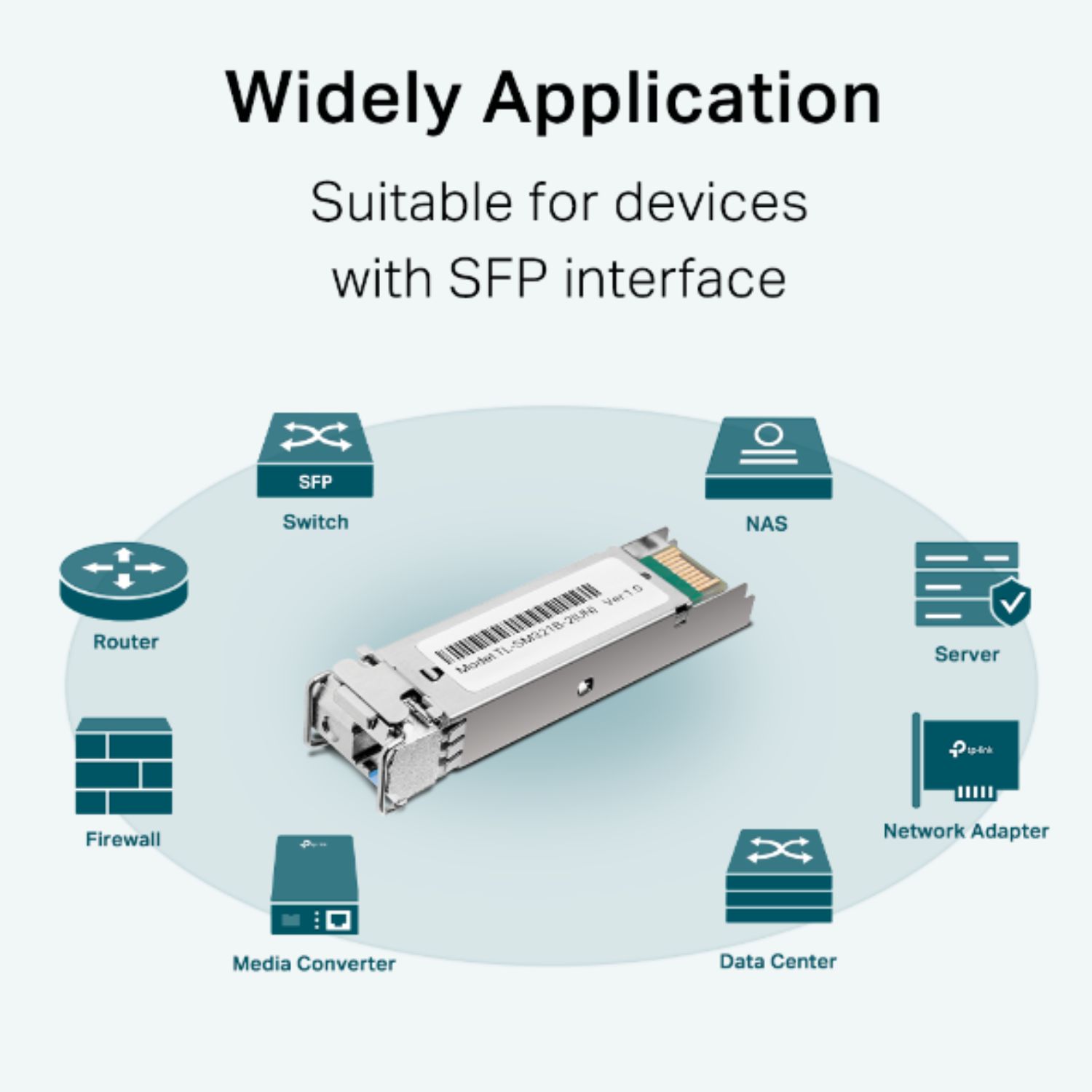

• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Supports Digital Diagnostic Monitoring (DDM)
• Supports Hot Swappable

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER MODULE
Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length Tx: 1310 nm
Rx: 1550 nm
Power Supply 3.3V
Safety Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 10 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing

Product Description Last Updated: 29/09/2025
