Simplecom SE517 NVMe / SATA Dual Protocol M.2 SSD Tool-Free USB-C Enclosure USB 3.2 Gen 2 10Gbps | SE517

Simplecom SE517 NVMe / SATA Dual Protocol M.2 SSD Tool-Free USB-C Enclosure USB 3.2 Gen 2 10Gbps

SE517 is an M.2 SSD enclosure that offers dual-protocol support for both NVMe and SATA SSDs, compatible with M Key and B+M Key formats. It easily converts your M.2 SSD into a portable USB drive, providing a convenient solution for data transfer, backup, and storage expansion. Equipped with a USB 3.2 Gen 2 interface, it delivers high-speed data transfer rates of up to 10Gbps for efficient performance.

The tool-free design allows for quick and easy installation, enabling you to set up your SSD in seconds without any additional tools. With support for UASP and TRIM, the enclosure ensures faster data transfer, optimized performance, and extended SSD lifespan.

Its durable aluminum housing provides excellent heat dissipation while maintaining a compact and portable form factor. For ease of use, it features plug-and-play functionality with no driver installation required, along with an LED indicator to display power and activity status.

Features

Dual-protocol support for both NVMe and SATA M.2 SSDs

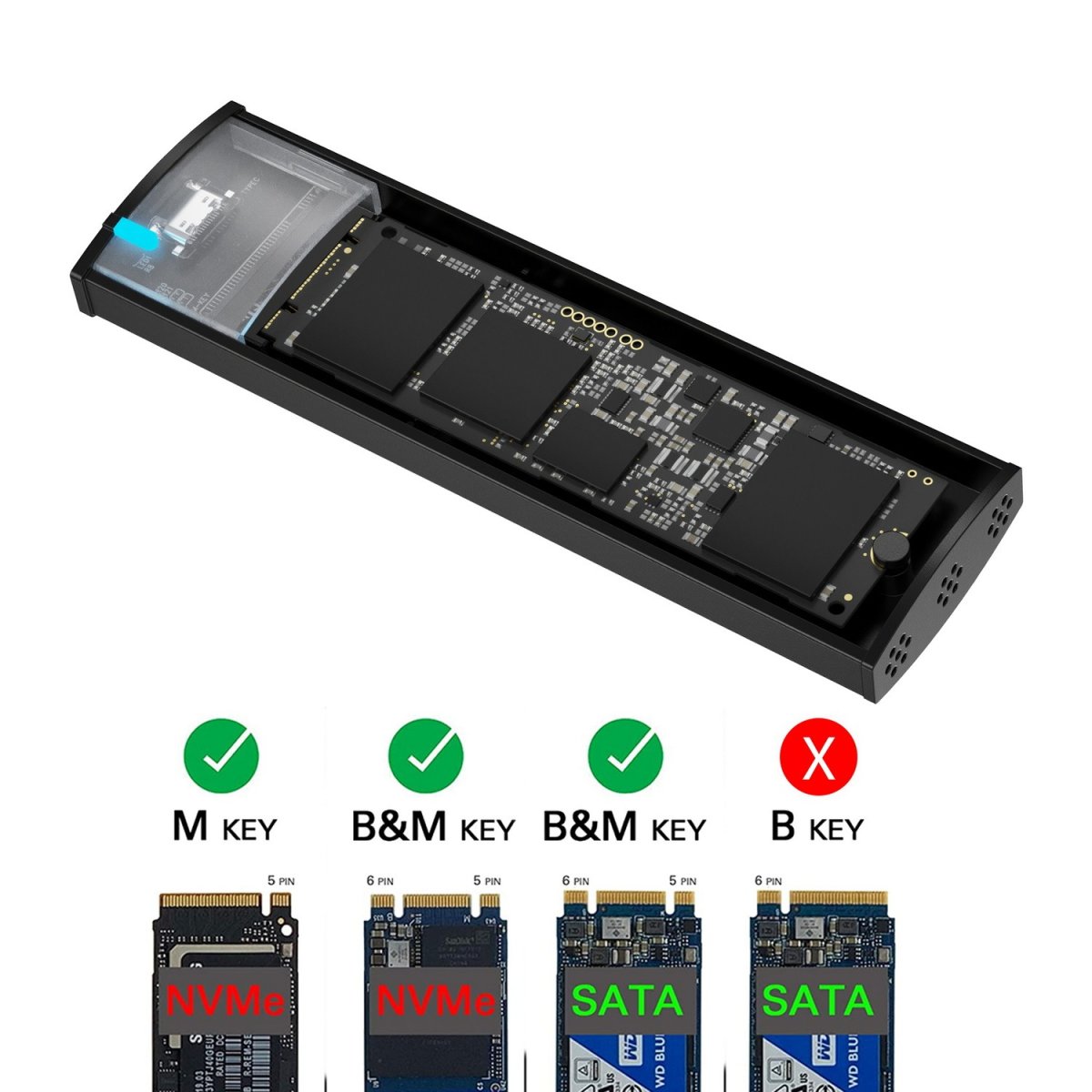

Converts M.2 SSDs (M Key or B+M Key) into a portable USB drive
USB 3.2 Gen 2 interface with transfer speeds up to 10Gbps
Tool-free design allows quick and easy M.2 SSD installation in seconds
Supports UASP for faster data transfer and improved performance
Supports TRIM to enhance write efficiency and extend SSD lifespan
Aluminum housing with a compact, portable design
Plug-and-play with no driver installation required
LED indicator displays power and activity status
Specifications

Model: SE517
Host Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Supported M.2 Types: NVMe M.2 and SATA M.2

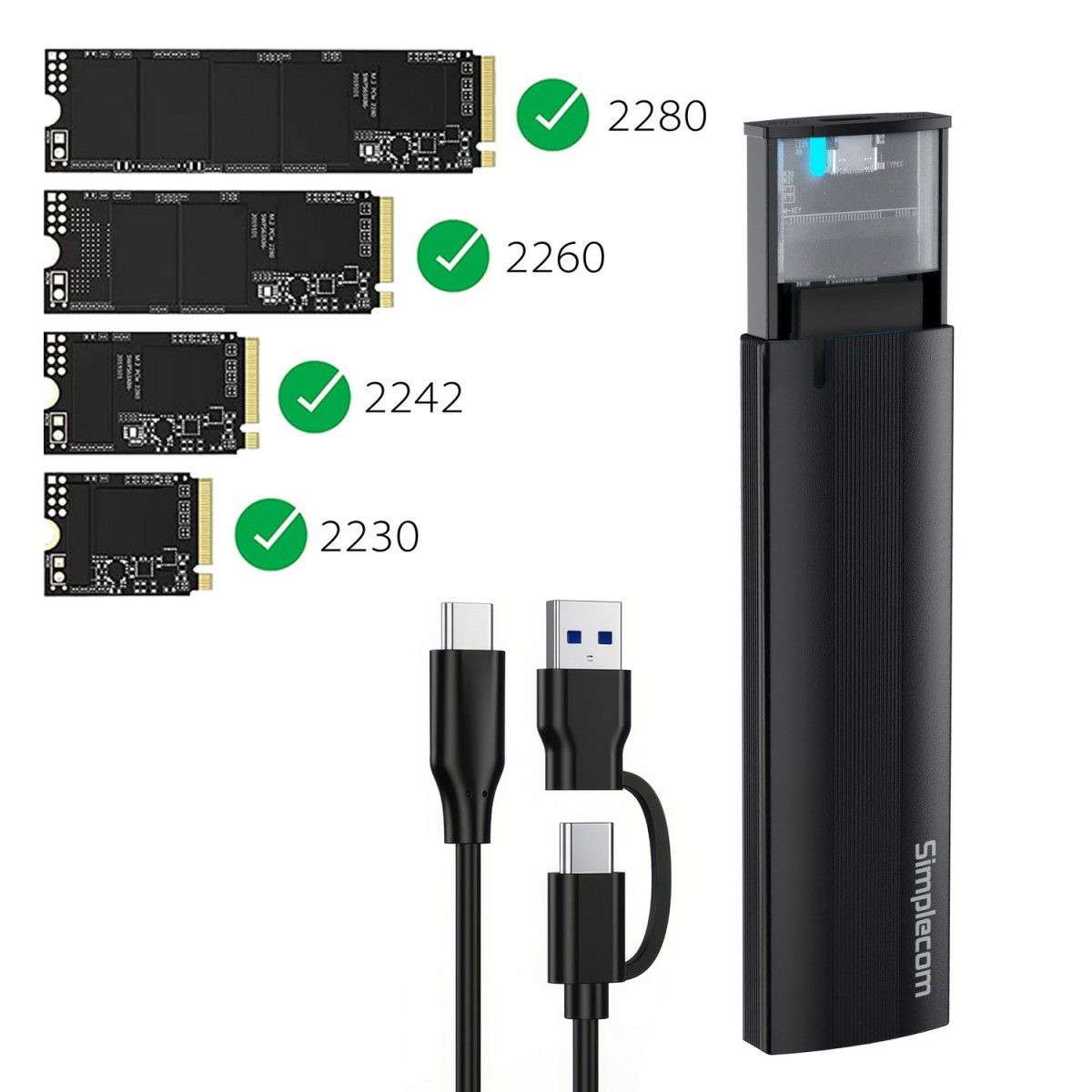

Supported M.2 Sizes: 2230 / 2242 / 2260 / 2280
Dimensions: 109 × 33 × 12 mm (L × W × H)
Operating Temperature: 0°C to 70°C
Operating Humidity: 10% to 85% RH
Enclosure Material: Aluminium and ABS plastic
Supported Operating Systems: Windows 7 or later; macOS 10.8 or later
Package Contents

1x SE517 Dual Protocol M.2 SSD Enclosure

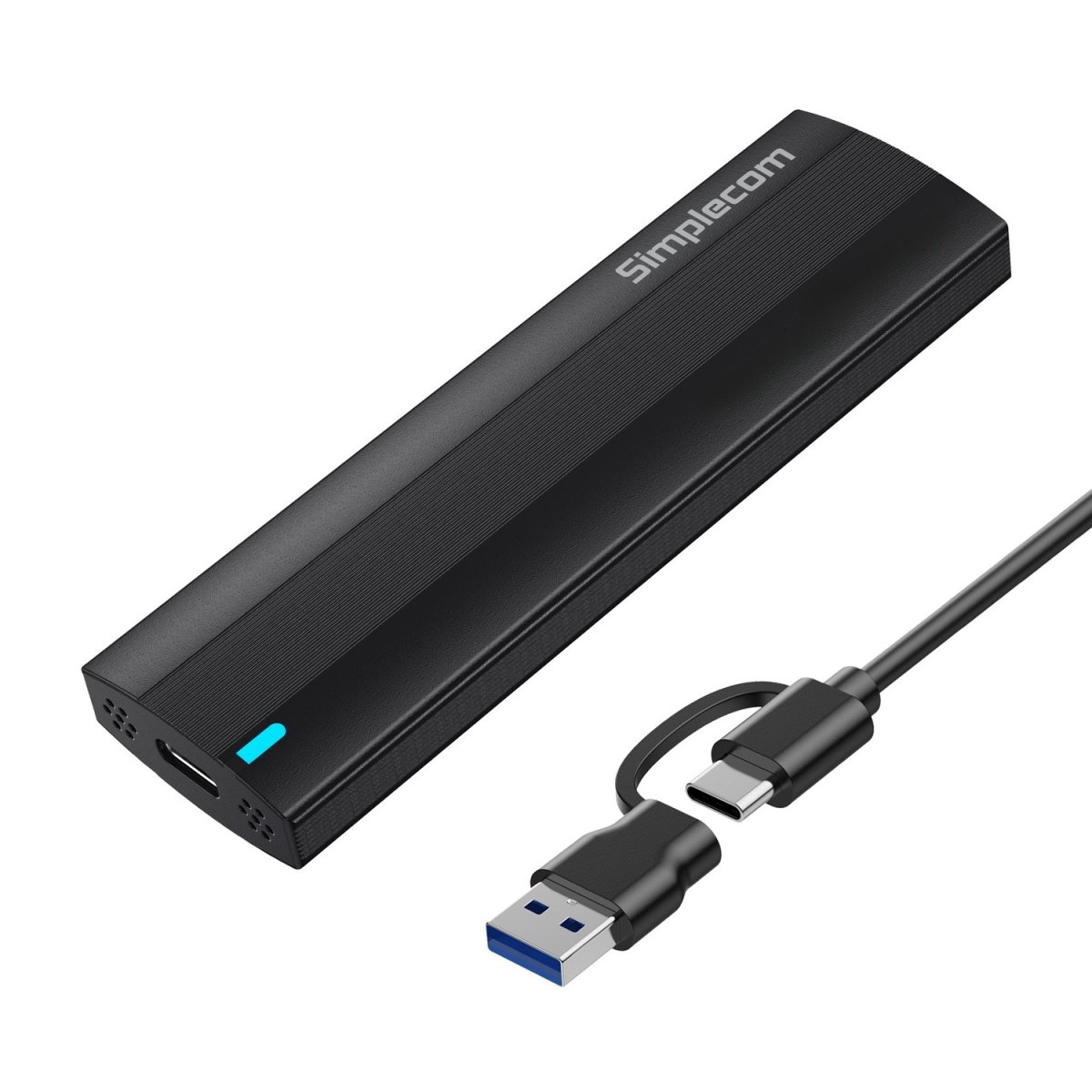

1x USB-C + USB-A combo cable
1x Silicone thermal pad

Important Note

*SE517 supports both NVMe and SATA-based M.2 SSDs (M Key or B+M Key). When using a SATA M.2 SSD, bandwidth is limited to 6Gbps, which is the maximum transfer rate of the SATA interface.
