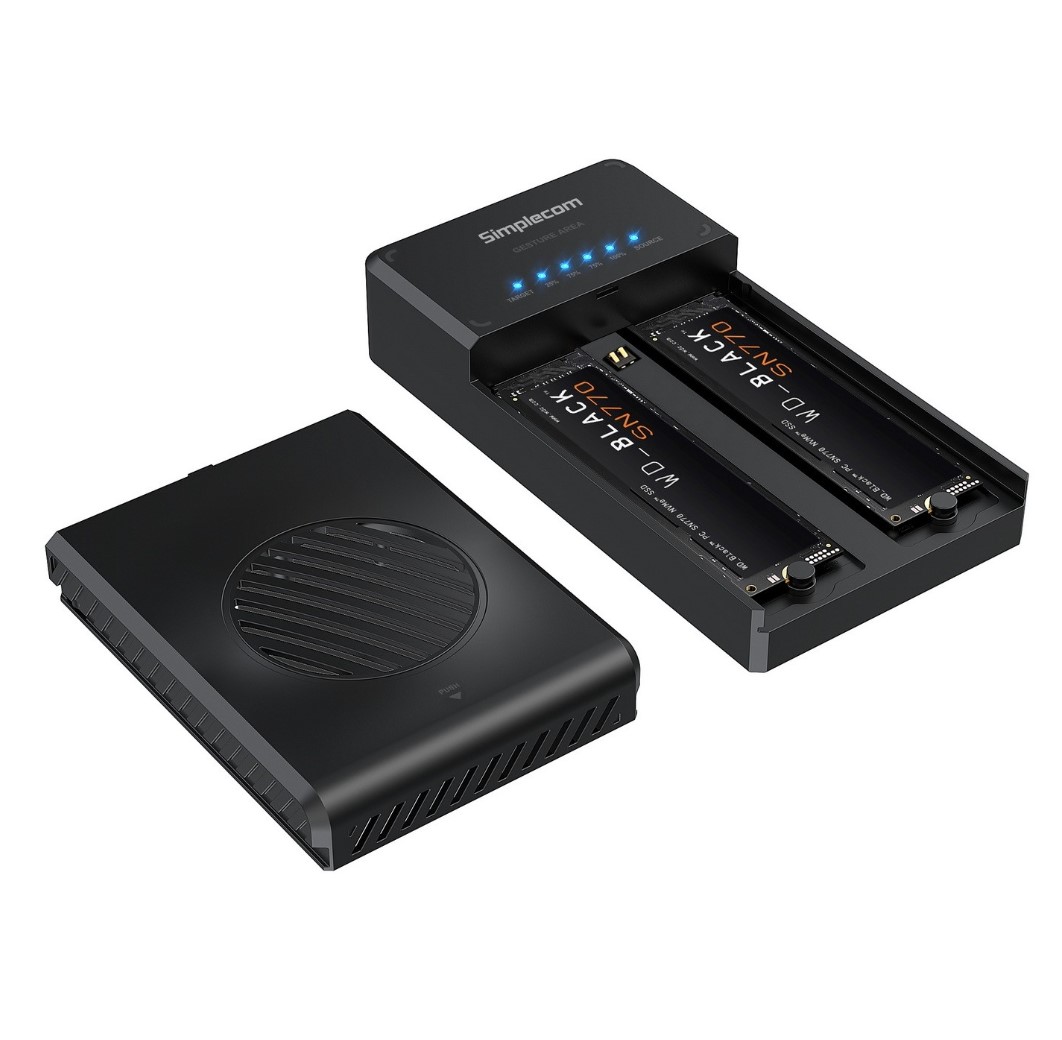

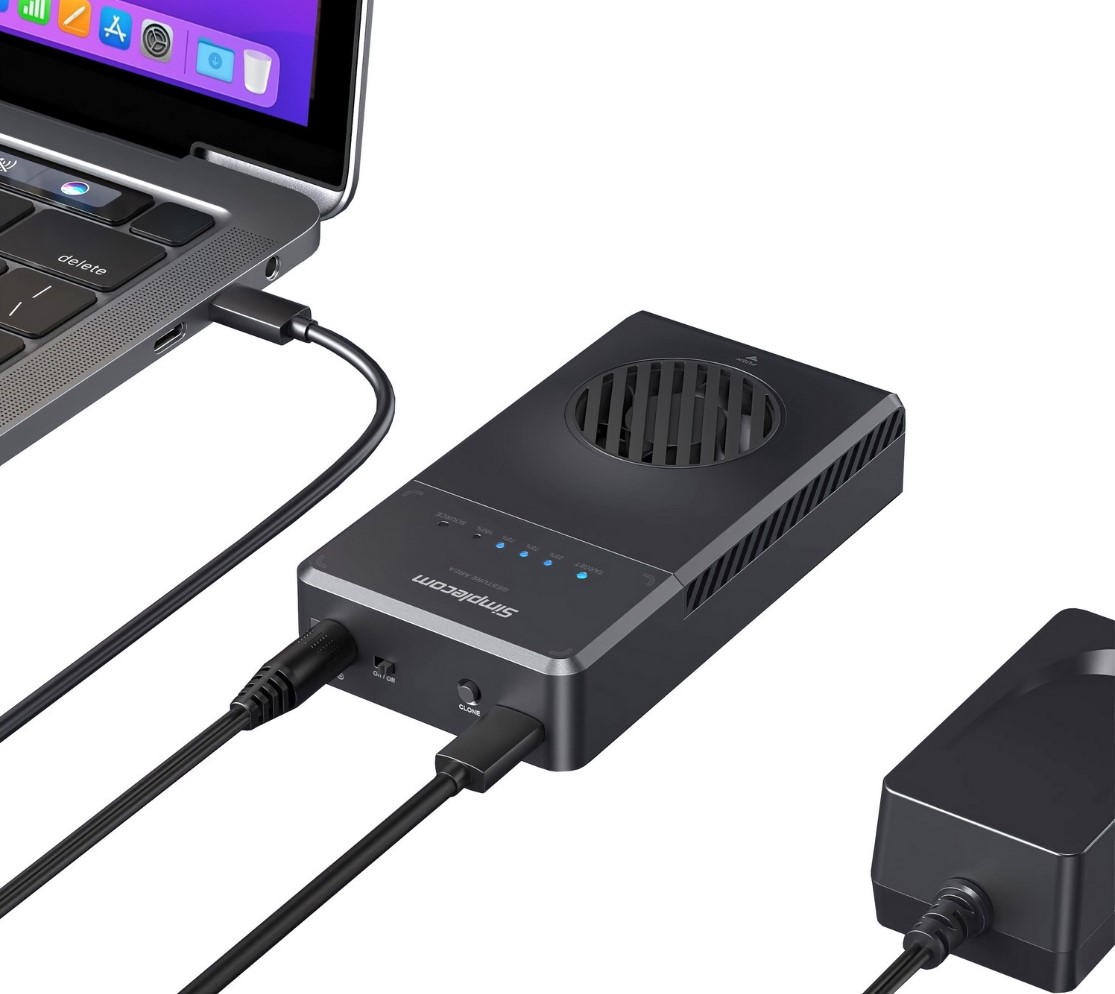

Simplecom SD560 Dual Bay NVMe M.2 SSD Enclosure Offline Clone Docking Station USB 3.2 Gen2 10Gbps | SD560

Simplecom SD560 Dual Bay NVMe M.2 SSD Enclosure Offline Clone Docking Station USB 3.2 Gen2 10Gbps

Features

Dual Bay NVMe M.2 SSD docking, support NVMe M.2 SSDs only
Access data from two NVMe M.2 slots simultaneously
Support multi-LUN (logical unit number), each slot has a separate drive letter
USB 3.2 Gen2 interface support up to 10Gbps data transfer rate

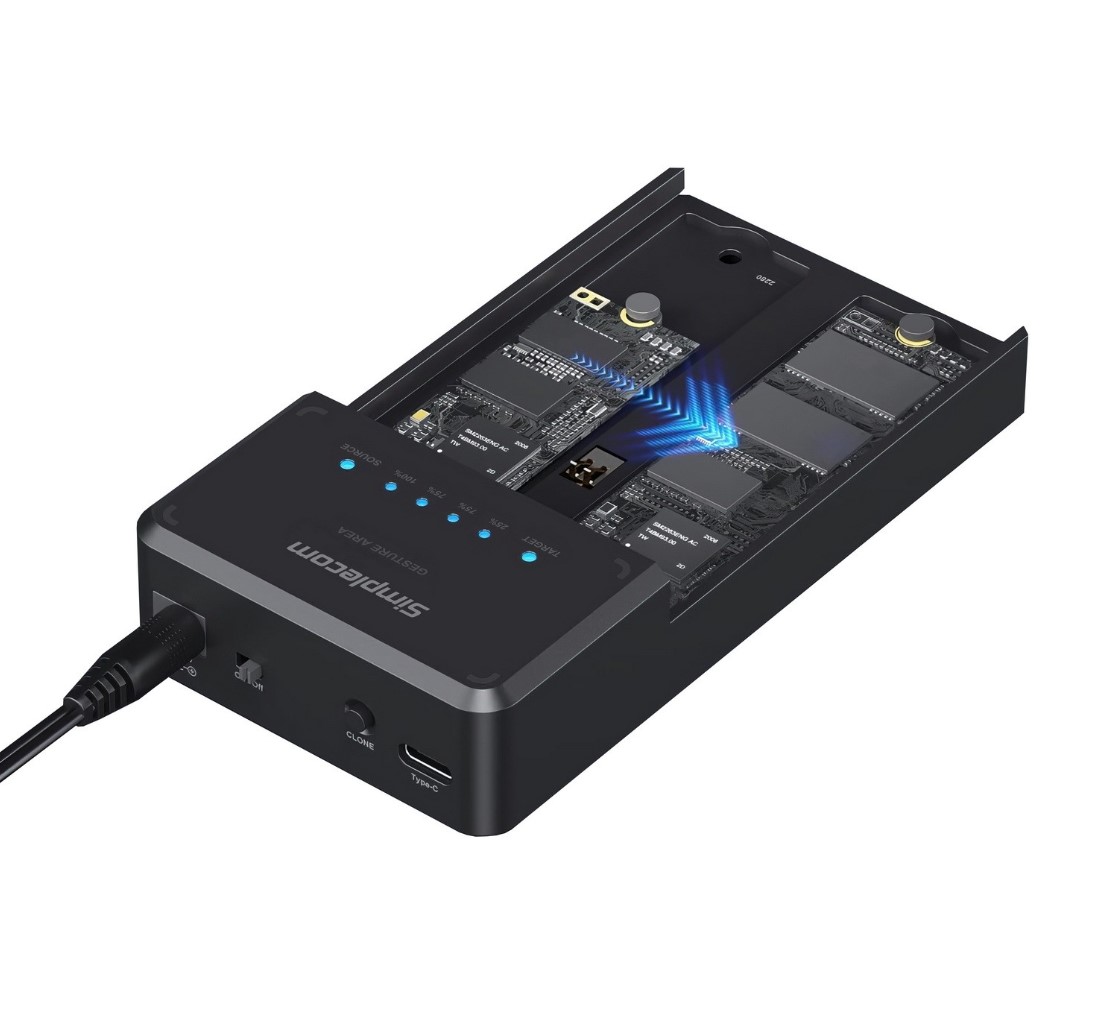

Support offline clone, standalone duplicating/cloning without host computer

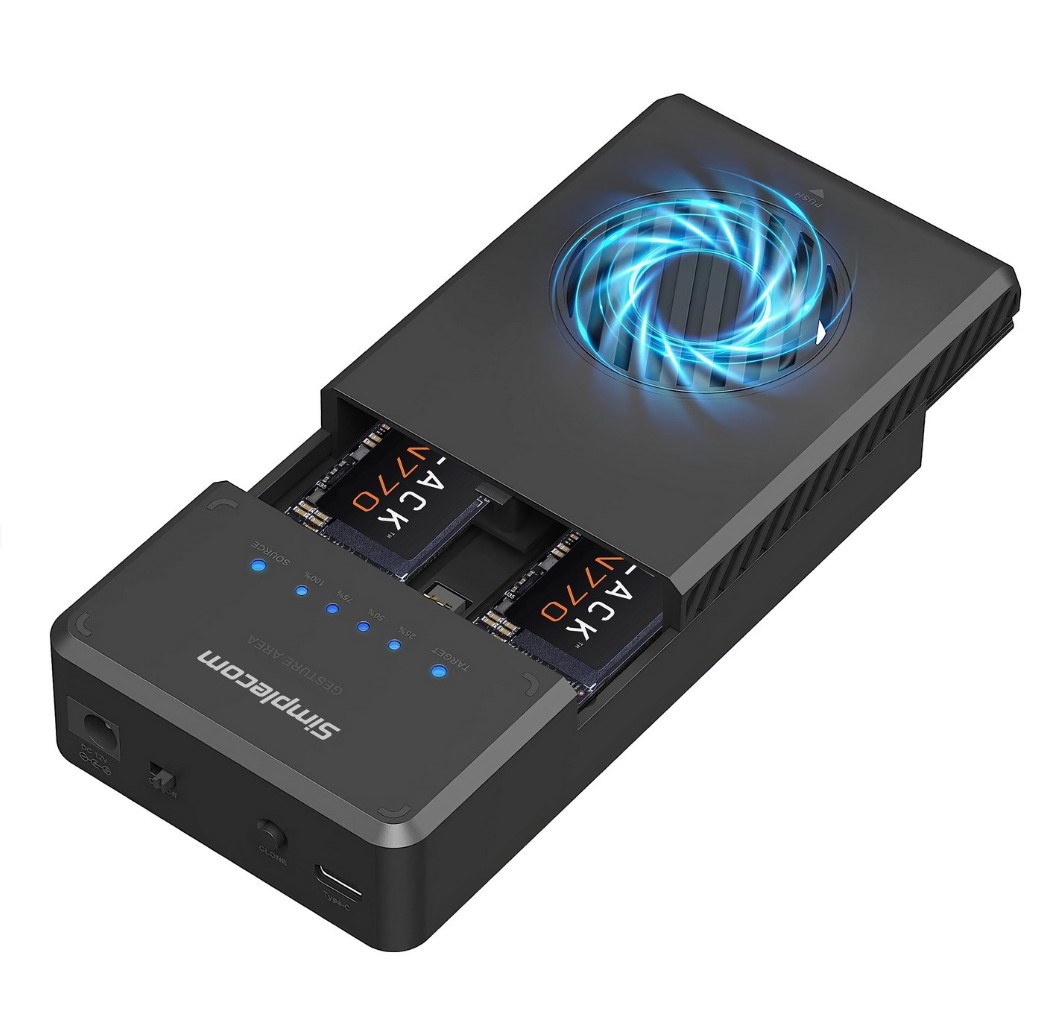

Built-in cooling fan significantly reduces operating temperature
Intelligent fan control, auto-off when SSD is idle
Compact and portable design, save and tidy your desktop space
LED light indicates power and activity status

Specifications

Model: SD560
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: up to 10Gbps
SSD Support: NVMe M.2 Only
SSD Size Support: 2230 / 2242 / 2260 / 2280
Multi-LUN Support: Yes
DC Input: 12V2A
Material: ABS, Aluminium
Net Weight: 115g
Dimensions: 125 x 65 x 25mm
Cooling Fan: 4410 5V Fan (auto-on when SSD is reading or writing, and auto-off when SSD is idle)
Operating System Support: Windows 7 and above, Mac OS 10.8 and above

Package Contents

1x SD560 Docking Station
1x USB-C and USB-A Combo Cable
1x Power Adapter (12V2A)
1x User Manual
