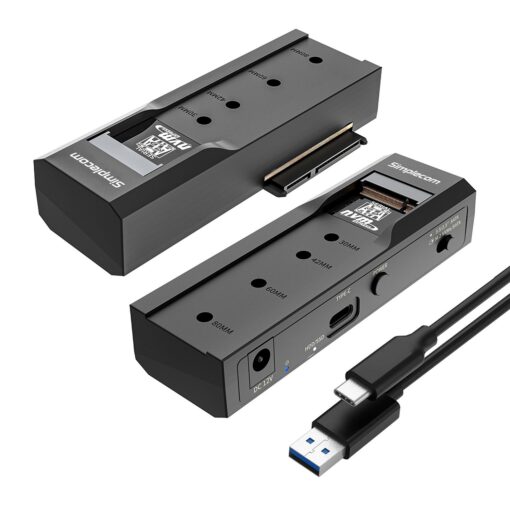

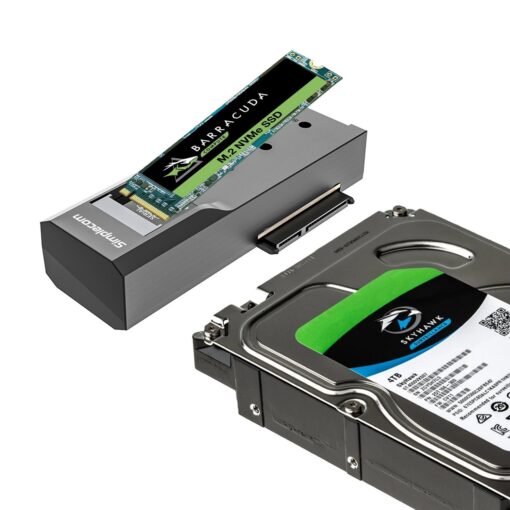

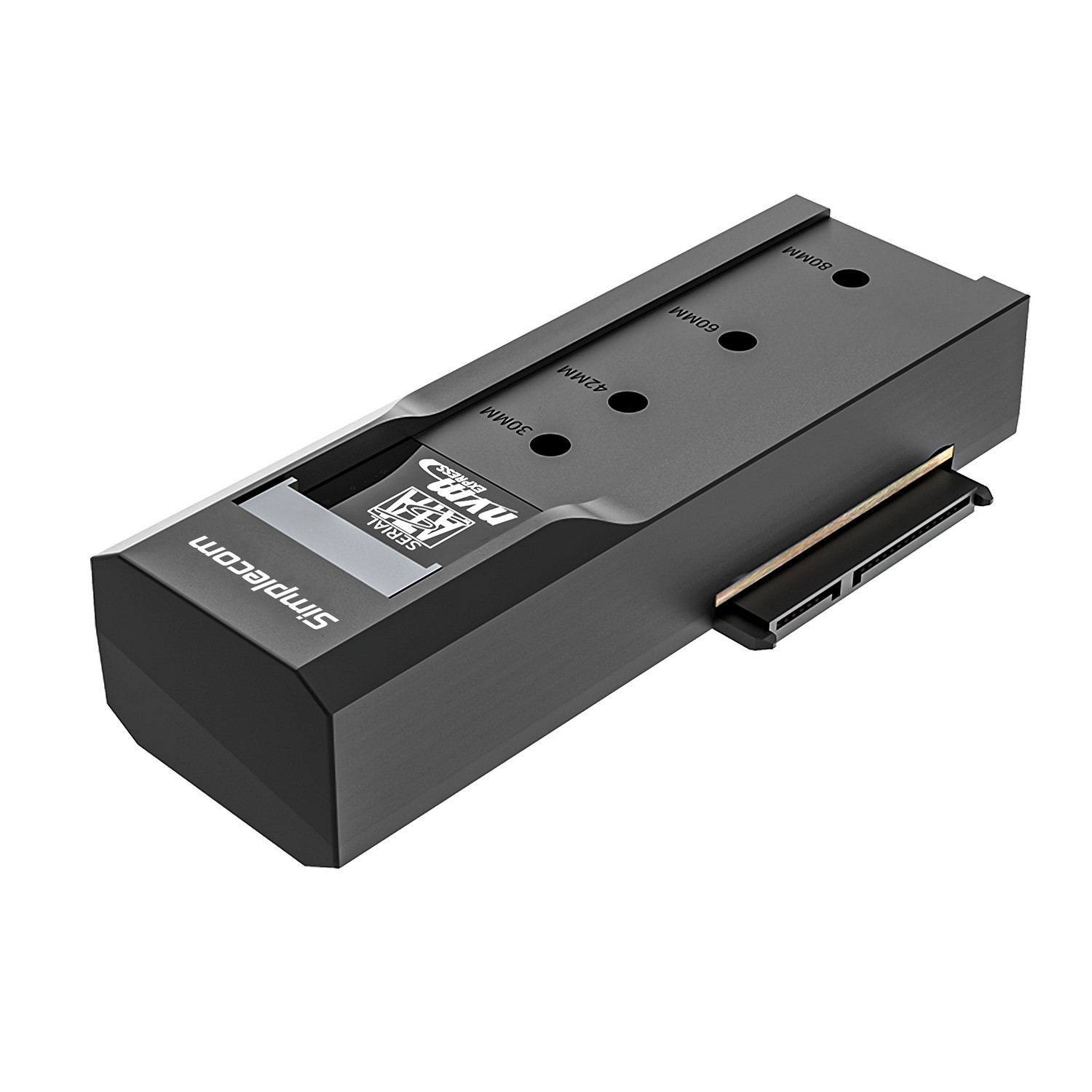

Simplecom SA536 USB to M.2 and SATA 2-IN-1 Adapter for 2.5’/3.5′ HDD NVMe/SATA M.2 SSD with Power Supply USB 3.2 Gen2 10Gbps | SA536

Simplecom SA536 USB to M.2 and SATA 2-IN-1 Adapter for 2.5’/3.5′ HDD NVMe/SATA M.2 SSD with Power Supply USB 3.2 Gen2 10Gbps

Features

2-IN-1 USB adapter with SATA and M.2 sockets
Supports NVMe and SATA M.2 SSD
Supports 2.5′ and 3.5′ SATA HDD/SDD with SATA I/II/III interface
Toggle button to quickly switch between SATA and M.2
USB 3.2 Gen2 interface support up to 10Gbps data transfer rate
Plug and play, no driver required
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
With external power adapter for 3.5′ hard drives
LED light indicates Power and Activity status
Specifications

Model: SA536
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: up to 10Gbps
NVMe Slot Support: NVMe or SATA M.2 SSD (2230 / 2242 / 2260 / 2280)
SATA Slot Support: 3.5′ or 2.5′ SATA HDD/SSD
Main material: ABS Plastic
Power Input: DC 12V2A
Dimensions: 108 x 44 x 24mm (LxWxH)
Weight: 49g (without power adapter)
Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above
Package Contents

1x USB to SATA and M.2 Adapter
1x AC Power Adapter
1x USB-C to USB-A Cable
1x USB-C to USB-C Cable
Rubber Standoff for M.2 SSD
User Manual

Important Note

External power is Not required when using 2.5′ SATA drive or M.2 SSD, they can be powered by USB.
External power is required for 3.5′ SATA HDD, please connect USB cable before connecting power cable.
SATA and M.2 sockets can’t be used simultaneously, toggle button need to be selected to SATA or M.2 mode.

Product Last Updated: 28/04/2025
