Shuttle XH610G Intel ® 14th/13th/12th Gen LGA1700 socket, DDR5, 3L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, 2x M.2 2280, (VGA RS232 both optional | XH610G

Shuttle XH610G Intel ® 14th/13th/12th Gen LGA1700 socket, DDR5, 3L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, 2x M.2 2280, (VGA RS232 both optional), 180W

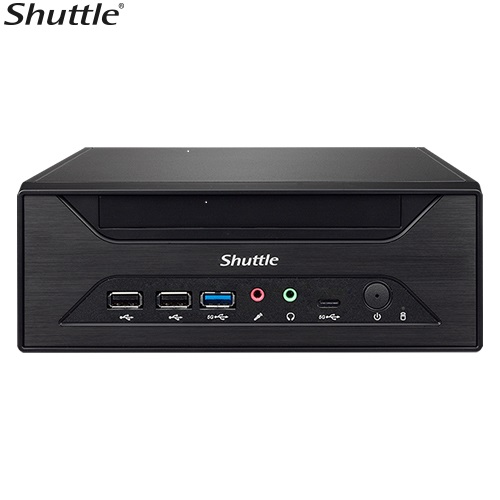

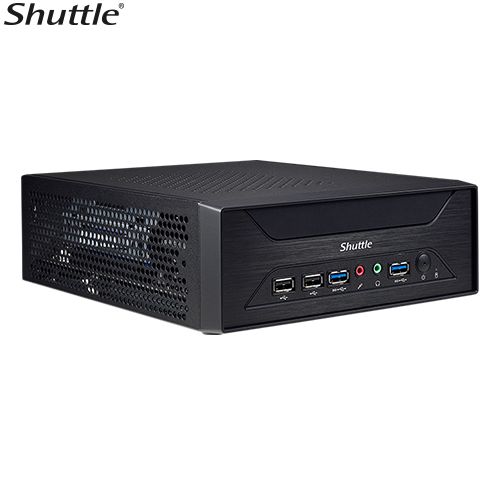

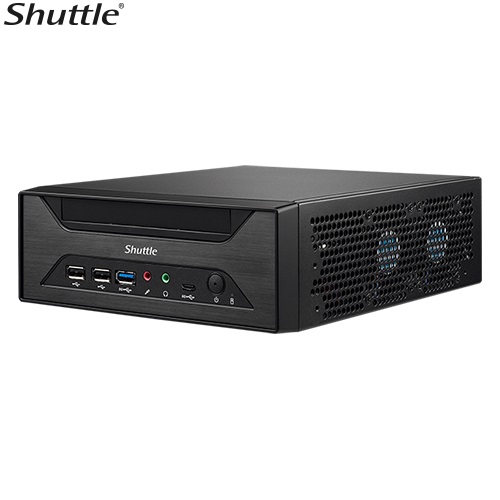

The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive
highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with
Intel® H610 chipset, it supports Intel® 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content.

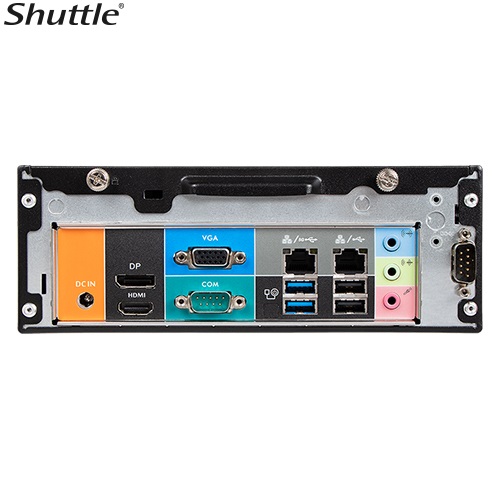

In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0,
RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing
24/7 operation even in 50⁰C environments.

Form Factor
Mini-ITX MB
3.5 L chassis

Chipset
Intel H610 Express chipset

Memory
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz

Video Output
HDMI + Display + D-Sub (VGA) port triple display

Audio
Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio

Expansion Slot
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket

Ethernet
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function

Storage Interface
SATA 6.0Gb/s interface

Product Last Updated: 28/04/2025
