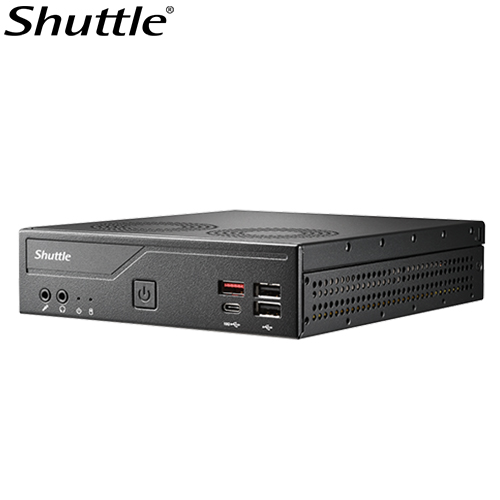

Shuttle DH810 Slim Mini PC 1.3L chassis – Intel® Core™ Ultra 200 serie ,2 x DDR5 SODIMM slots,48GB, 2xLAN (1G 2.5G), 2xRS232, HDMI, 2xDP, 120W, Vesa | DH810

The Shuttle DH810 is a 1.3L robust PC that harnesses the power of Intel® Core™ Ultra LGA1851 processors. With support of up to 96GB of DDR5-5600MHz RAM in dual-channel mode and integrated Intel® Graphics, DH810 ensures seamless multitasking and rapid data processing, making it ideal for commercial tasks and demanding AI workloads. The DH810 supports up to 8K resolution via HDMI, along with triple independent 4K display, delivering a stunning visual experience for Pro AV applications, including digital signage and entertainment.

● Core configuration: Up to 24 cores (8 Performance-cores and 16 Efficient-cores)
● Enhanced Graphics Performance: The integrated Intel® Graphics significantly enhance DH810’s suitability for commercial applications.
● Maximum capacity of up to 96GB (48GB per slot)
● Fast data processing capabilities at 1.1V, improving power efficiency
● 1 x M.2 2280, M key slot for PCIe Gen 4×4 or SATA 6Gb
● 1 x M.2 2230, E key slot for PCIe Gen 3×1, USB2.0, Intel CNVi module or Wlan-M module
● BIOS and Utility Features:
Wake on LAN, Power-On After Power Failure, RTC Power-on, Watch Dog, and Auto Power on
● Reliable Performance:
Shuttle’s exclusive heat pipe cooling technology ensures 24/7 stable operation in environments ranging from 0 to 50°C
● Flexible Mounting Methods:
Supports VESA mounting standards of 75×75 and 100×100, allowing easy installation on walls or behind displays, perfect for space-constrained environment
● Operation System Support:
Windows 11 and Linux

FORM FACTOR 1.3L chassis
PROCESSOR Intel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W.
CHIPSET Intel H810 Express chipset
MEMORY 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)
DDR5 5600 MHz
VIDEO OUTPUT (1) HDMI 2.1 (TMDS)
(2) DP (Include 1 form USB 4.0 port)
Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC 888S High Definition Audio
ETHERNET (1) Intel 2.5GbE LAN
(1) Intel 1GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1×4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

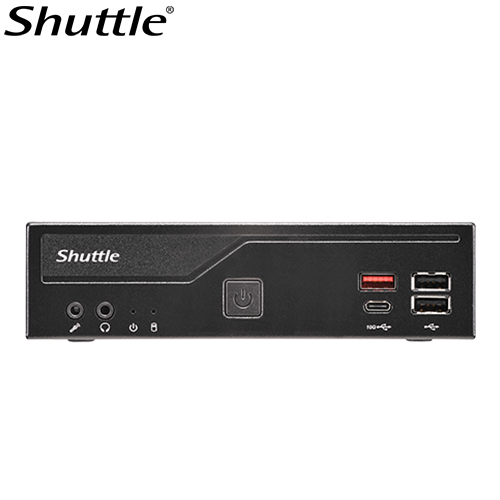

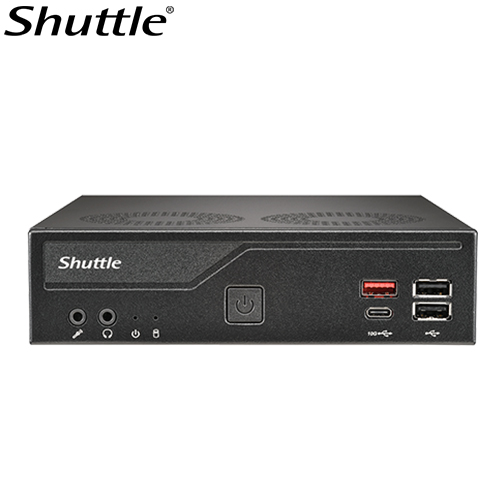

FRONT PANEL (2) USB 3.2 Gen2 ports (Include 1 Type-C)
(2) USB 2.0
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

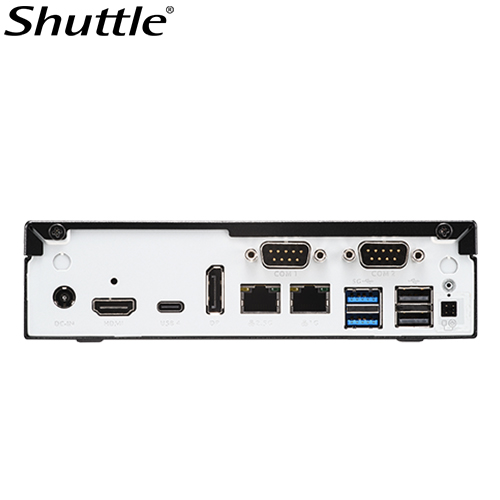

BACK PANEL (2) RJ45 LAN port w/LED (2.5G
(1) HDMI port
(1) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) USB 4.0 (20G, Type-C, with DP)
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(1) Kensington lock
DRIVE BAYS (1) 2.5′ HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 11 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
NET WEIGHT NW :1.32 (kg)
OPERATING TEMPERATURE 0℃~50℃
