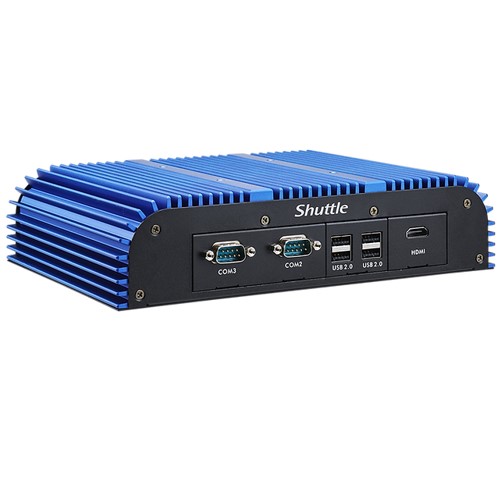

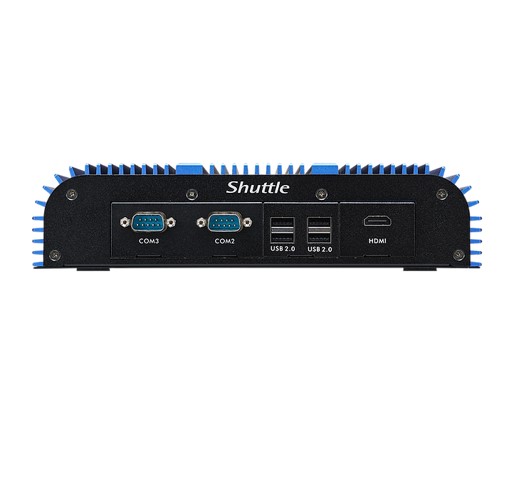

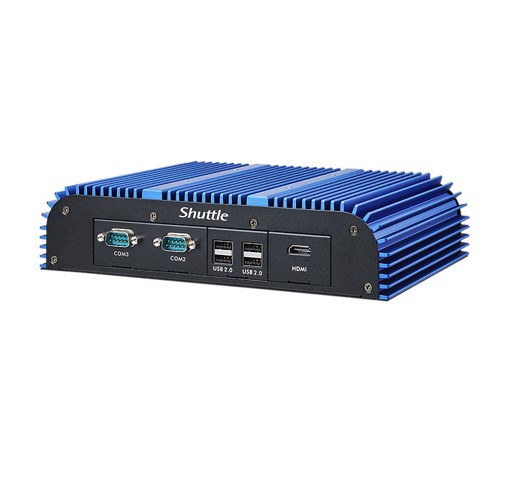

Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI | BPCAL03-I3

Shuttle BPCAL03I3 Box PC, Core i3-1215UE, 2x DDR5, 2x LAN, 3x COM, 1x M.2, 8x USB, 2x HDMI

Aluminum chassis, fanless, -20~60°C, 150W, Supports Intel® vPro™ and AMT (Max 4 display outputs)

Unparalleled Real-Time Edge Computing Prowess
Shuttle’s BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads.
Powered by i5 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more.
Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments.

12th Gen Intel® Alder Lake Core™ Processor Applications for optimized intelligent workloads
● Supports dual-channel DDR5-4800 MHz memory, Max. 64GB (2 x 32GB).

Up to Quad Displays Capability
● Stunning 4K/Ultra HD visual (4K x 2K) provided via 1 x HDMI 2.0b (4096 x 2160@60Hz).
● Up to three customizable expansion DisplayPorts, including a maximum of two HDMI 2.0b outputs.

High-Speed Data Transmission
● USB Efficiency: 4 x USB 3.2 Gen 2
● Over 20 times faster than legacy USB 2.0

Network
Ethernet 2 x Intel® 2.5G LAN

WLAN
Intel WiFI Module (802.11 a/b/g/n/ac) BT 5.0 (Option)
Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
External antenna (Dipole) x2 (Option)
I/O Interface

LAN
2 x RJ-45 (10/100/1000Mbps/2.5GbE)
Supports Wake On LAN

Serial Ports
1 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) 12V (with specific optional board)

USB
4 x USB3.2 Gen 2 (Type A)
4 x USB2.0

Audio
1 x Line-out
1 x Mic-in

Operating Temperature
BPCAL03: -20 ~ 60°C

Storage Temperature
-20°C ~ 80°C

Relative Humidity
20% – 80% RH (non-condensing)
