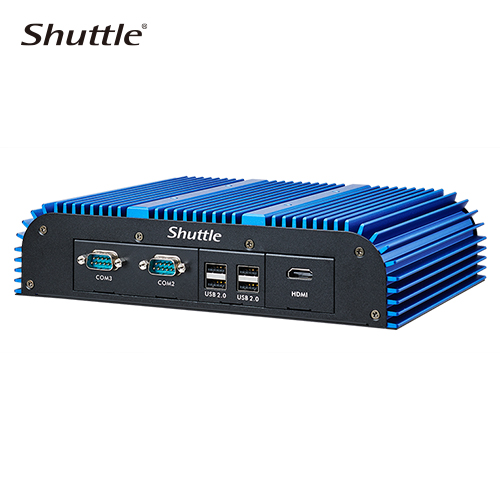

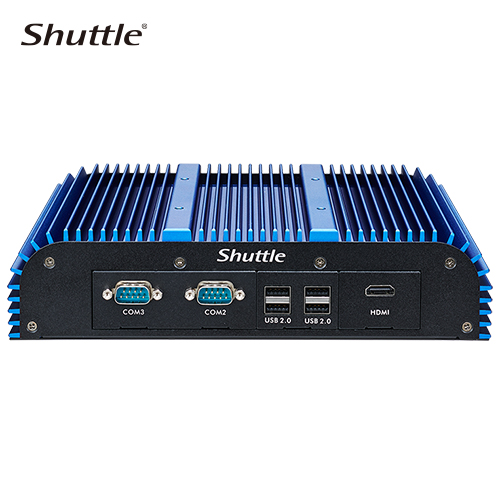

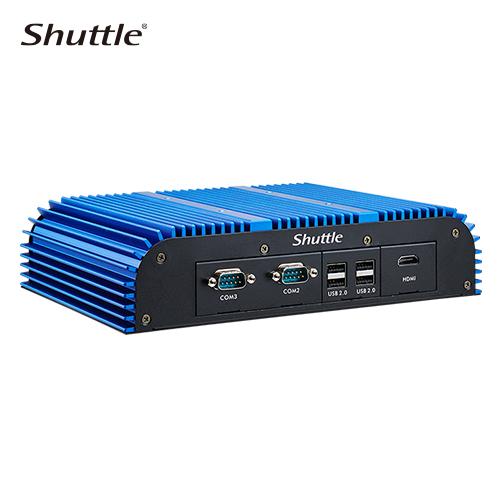

Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount | BPCAL02-i3

Shuttle BPCAL02 Box PC, Intel i3-1215U, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Unparalleled Real-Time Edge Computing Prowess
Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security and accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments.
12th Gen Intel® Alder Lake Core™ Processor
Intel Alder Lake platform is the optimal processor for IoT applications. It employs a 10nm process architecture with a hybrid design featuring P-cores for primary workloads and E-cores built for multitasking, meticulously optimized for intelligent tasks. As the latest generation, Alder Lake (P-core) offers a 28% performance improvement for users, along with an approximate 20% boost in IPC (Instructions Per Clock).
● Enables Intel® Iris® Xᵉ with dual-channel memory.

Processor 12th Gen. Intel® Alder Lake Core i3-1215UE
Memory 2 x 262 pin SO-DIMM up to 64GB
Dual Channel DDR5 4800 MHz
BIOS AMI UEFI 64 Mbit
Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
Display output max: 4 independent or clone
Audio Codec Realtek ALC888s-VD 2-channel
Ethernet 2 x Intel® 2.5G LAN
WLAN Intel WiFI Module (802.11 a/b/g/n/ac) BT 5.0 (Option)
Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)

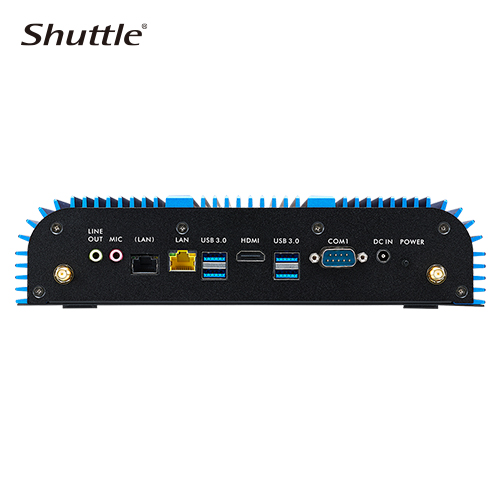

LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
Supports Wake On LAN
Serial Ports 1 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9)
USB 4 x USB3.2 Gen 2 (Type A), 4 x USB2.0
Audio 1 x Line-out
1 x Mic-in
Operating Temperature BPCAL02: 0 ~ 40°C
EMC CE, FCC, VCCI, BSMI, RCM
Safety cTUVus, CB, CEC, BSMI
