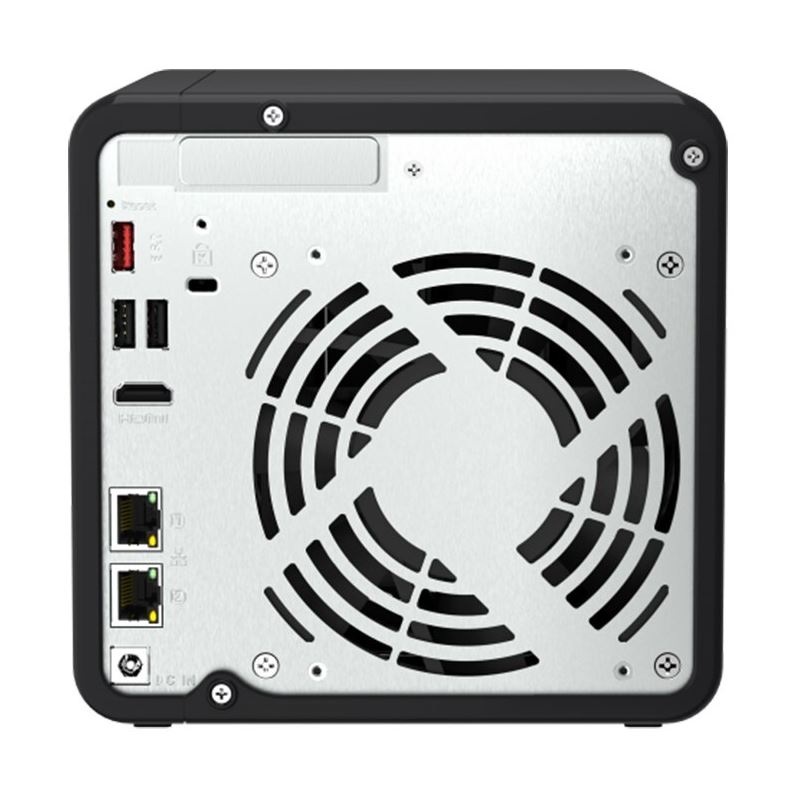

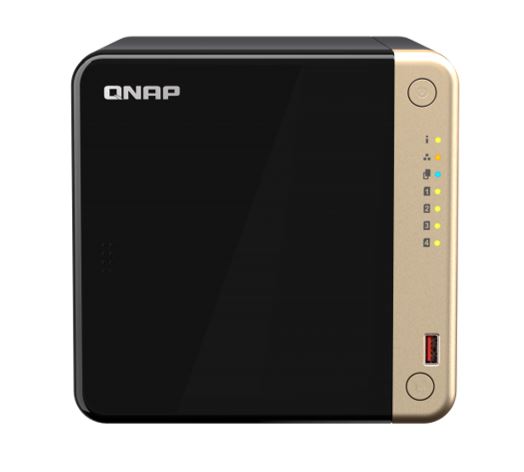

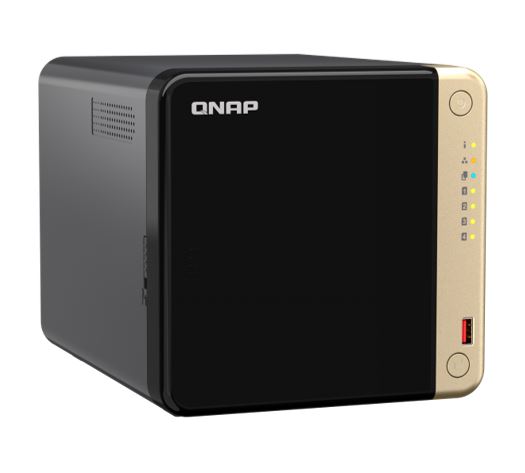

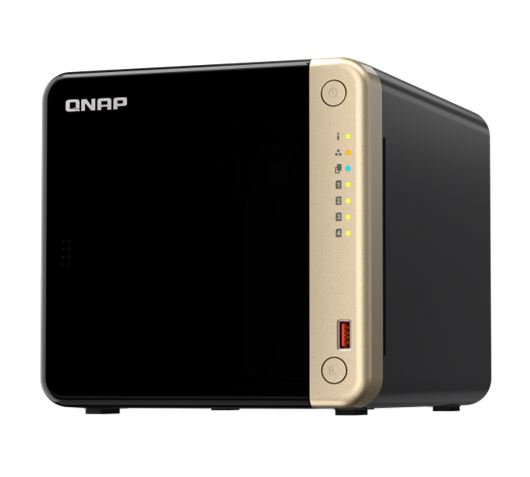

QNAP TS-464-8G 4 Bay NAS Intel Celeron N5095 Quad core 8GB DDR4 2xM.2 2280 PCle 2×2.5GbE 1xSlot PCle Gen3x2 2xUSB3.2 1XHDMI2.0 3YR WTY | TS-464-8G

QNAP TS-464-8G 4 Bay NAS Intel Celeron N5095 Quad core 8GB DDR4 2xM.2 2280 PCle 2×2.5GbE 1xSlot PCle Gen3x2 2xUSB3.2 1XHDMI2.0 3YR WTY

CPU Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB on board (non-expandable)
Maximum Memory 8 GB
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 168 × 170 × 226 mm
Weight (Net) 2.26 kg
Weight (Gross) 3.6 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 21.618 W
Power Consumption: Operating Mode, Typical 40.536 W
Tested with drives fully populated.
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500

Product Last Updated: 23/11/2025
