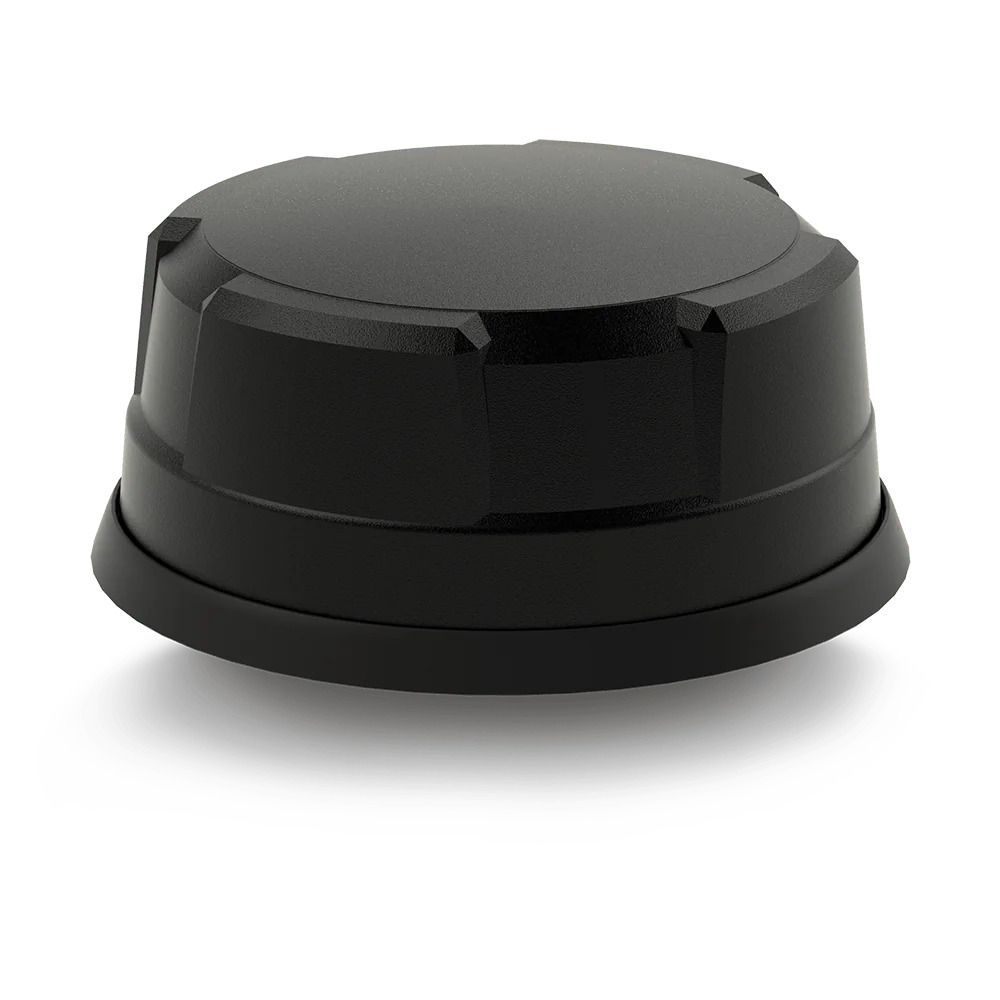

PANORAMA 7-in-1 5G DOME Antenna Black, 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K | LG-IN2445

PANORAMA 7 -in-1 5G DOME Antenna Black, 4×4 MiMo 4G/5G, up to 6×6 MiMo WiFi, optional GPS/GNSS Vehicle Ant,SMA (m) 617-960/1710-6000MHz, IK10, IP69K (cables fitted -5m)

The MAKO® 5G Dome is a range of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz with optional GPS/GNSS and optional 2×2, 3×3 or 4×4, or 6×6 MiMo/Diversity at 2.4/5.0/7.2GHz.

The MAKO® 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 optional dual band elements covering 2.4 5.0/7.2GHz support MiMo/Diversity operation for WiFi and optional high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.

Designed for latest generation LTE Cat 18/20 routers and devices
Low profile antenna with up to 11 functions in 1
4×4 MiMo 4G/5G LTE cellular, Optional GPS/GNSS optional MiMo 2.4/7.2GHz in one housing
Kits with extension cables available for a range of LTE routers
Flame retardant cables compliant to UNECE R118
Pre-terminated antenna connectors fitted as standard
Cable flags attached for easy cable identification and installation
Extension cable available upon request

Available in Black or White
Single Hole Panel Mount Installation
Suitable for FirstNet (USA) and ESN (UK) Public Safety Networks
Ground Plane Independent | Suitable for Conductive or Non-Conductive Surfaces
ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 10
Frequency Range | Gain 617 – 960MHz | 4dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi
Cellular LTE Elements 4 x 4 MIMO
WIFI Elements No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 5 x 5 MIMO; 3 x 3 MIMO
UHF Elements No
GPS DATA
GPS Frequency Range 1562-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements 1 Module; No
MECHANICAL DATA
Colour Black; White
Height 80 (mm) | 3.15 (in)
Diameter 180 (mm) | 7.09 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Type (LTE) FR RG174; RG174
Cable Type (GPS) FR RG174
Cable Type (WIFI) FR RG174; RG174
Quantity of Cell Cable 4
Quantity of GPS/GNSS Extension 1
Quantity of WIFI Extension max: 6
TERMINATION DATA
Connector (WIFI) Reverse Polarity SMA; FAKRA I; SMA (f)
Connector (GPS) SMA (m); FAKRA C; FME (f)
Connector (LTE) SMA (m); FAKRA D; N (f)
MOUNTING DATA
Mounting Type Fixed Panel
Mounting Type Temp Magnetic
Mounting Methods Magnetic; Panel
APPROVALS DATA
IP Rating IK10; IP69K
Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
TECHNOLOGY DATA
Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI

LG-IN2445 Black 4 x 4 MIMO 1 Module 2 x 2 MIMO
5m 5m 5m
SMA (m) SMA (m) Reverse Polarity SMA
Cables Fitted Cables Fitted Cables Fitted

Product Last Updated: 11/12/2025
