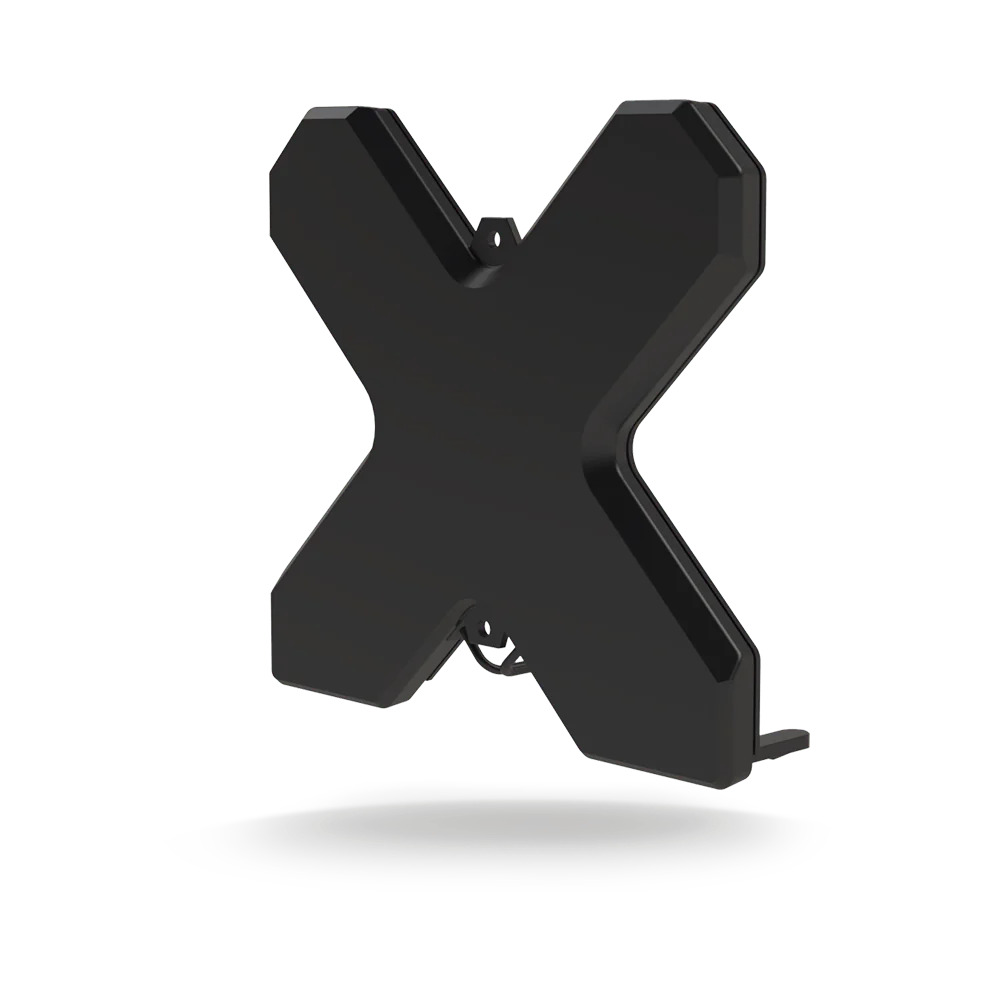

PANORAMA 2×2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready | DMM-6-60-2SP

PANORAMA 2×2 Mount MiMo Portable Antenna 4G/5G Desk, Window or Wall Mount Antenna, 617-960 / 1710-6000MHz, SMA (m), Band71 Ready

The DMM portable antenna is an innovative antenna design which provides 2×2 MiMo function for 4G/5G with fallback to 3G/2G.Incorporating two separately fed, ultra wideband elements in a single housing, the DMM is equipped to provide portable MiMo and diversity function for frequencies from 617-960/1710-6000MHz to cover global LTE and 5G sub mmWave bands. A handy suction window mount enables users to optimise their signal by antenna position, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with 2 metres (6’) of twinned coaxial cable with the option of SMA or TS9 plug connectors.The DMM is a cost effective, value added product for network operators and service providers, helping to provide a stable connection with improved data rates for subscribers, thereby improving satisfaction and retention.

Cradlepoint Approved for S700, IBR600C, E100/E102 Series
The ideal loT antenna
Multiple mounting options
Integrated coax with connector terminations

ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 20
Frequency Range | Gain 617 – 960MHz | 3dBi; 1427 – 2700MHz | 5dBi; 3400 – 6000MHz | 6dBi
Cellular LTE Elements 2 x 2 MIMO
WIFI Elements No
UHF Elements No
GPS DATA
Number of GPS Elements No
MECHANICAL DATA
Colour Black
Length 16 (mm) | 0.63 (in)
Width 184.6 (mm) | 7.27 (in)
Height 176.3 (mm) | 6.94 (in)
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE min: 0.5 (m) | 1.64 (ft); max: 2 (m) | 6.56 (ft)
Cable Type (LTE) RG174
TERMINATION DATA
Connector (LTE) SMA (m); TS9 (m)
MOUNTING DATA
Mounting Type Fixed Desk
Mounting Type Temp Glass Mount
Mounting Methods Desk; Glass Mount
TECHNOLOGY DATA
Technology 4G/5G; 5G; 2G/3G; 2G/3G

Product Last Updated: 28/04/2025
