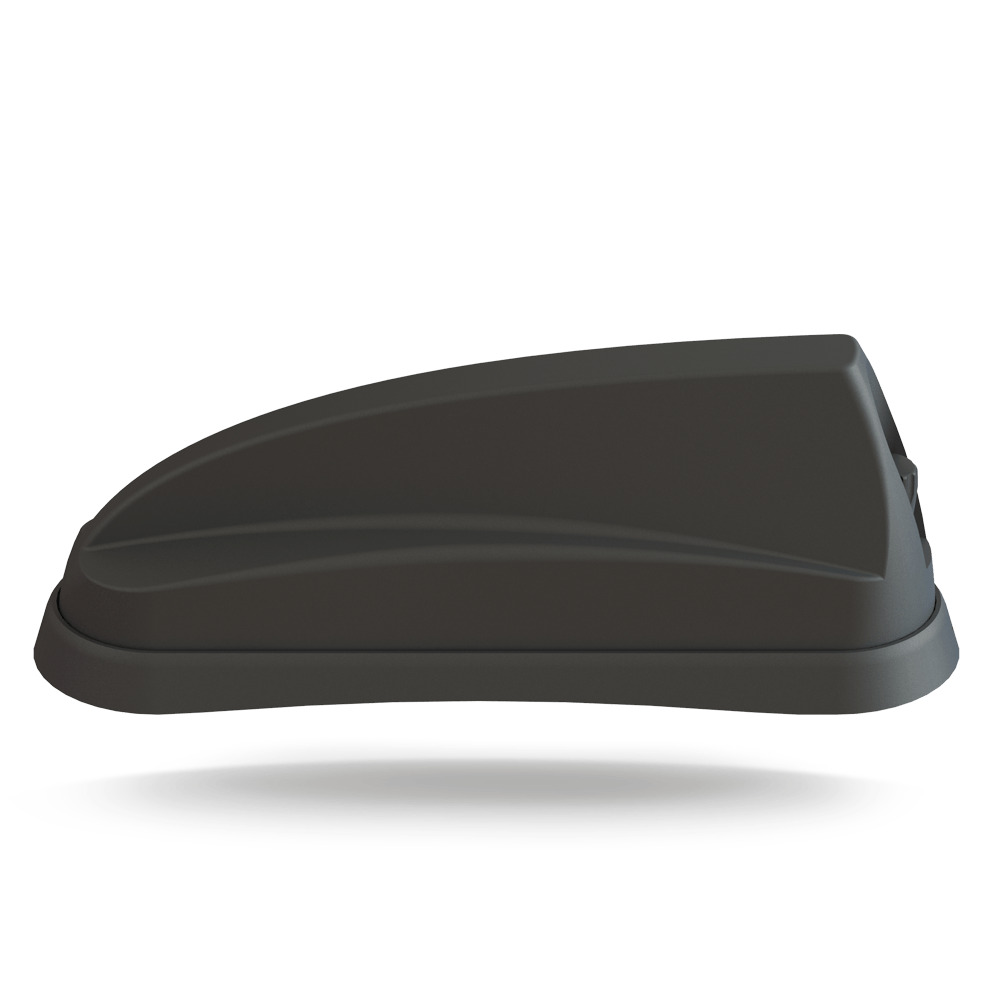

PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14 | SHKG-6-60

PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14

4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time cost, and visual impact whilst protecting a vehicle’s resale value.
Pattern Omnidirectional
Max Input Power(W) 10
Frequency Range | Gain 617 – 960MHz | 5dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi
Cellular LTE Elements 2 x 2 MIMO
WIFI Elements No; 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO
UHF Elements No
GPS Frequency Range 1562-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements 1 Module
Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Type (LTE) FR RG174
Cable Type (GPS) FR RG174
Cable Type (WIFI) FR RG174
Quantity of Cell Cable 2
Quantity of GPS/GNSS Extension 1
Quantity of WIFI Extension max: 4
Connector (WIFI) Reverse Polarity SMA; SMA (f)
Connector (GPS) SMA (m); FME (f)
Connector (LTE) SMA (m)
Mounting Type Fixed Panel
Mounting Type Temp Magnetic
Mounting Methods Magnetic; Panel
IP Rating IP69K
Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI

Product Last Updated: 17/07/2026
