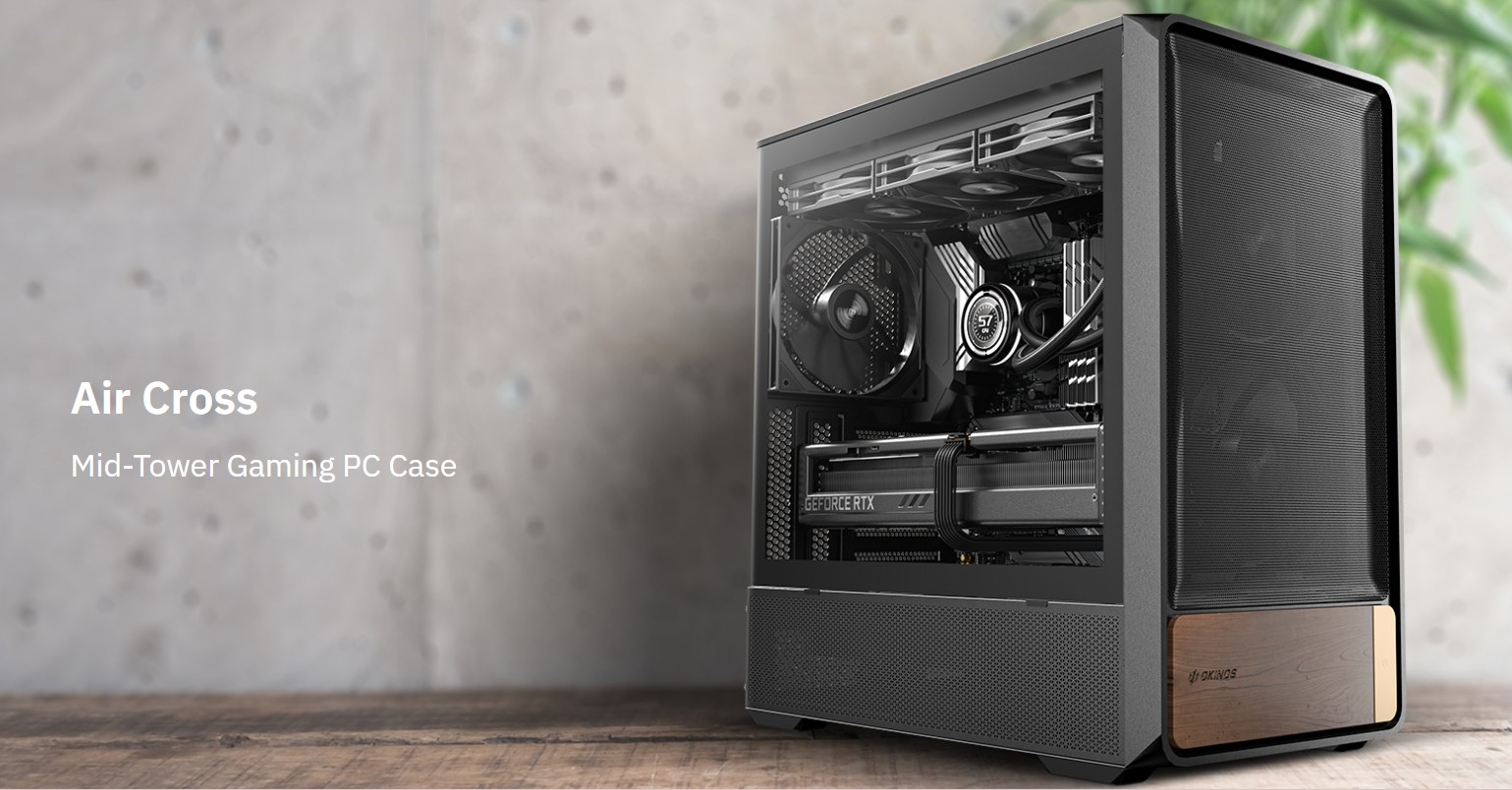

OKINOS Air Cross ATX USB3.0 x 2 Type-C 3 2 Gen 2 (10Gbps) x 1 4mm Tempered Glass Side Panel Mid Tower Case | Air Cross

Special Features
1. Air Cross utilizes a dual-channel airflow design—horizontal for CPU, vertical for GPU—to provide focused and efficient cooling.

2. Pre-installed with five high-performance H12 PWM fans for outstanding cooling performance right out of the box.

3. Fully supports BTF / Back-Connect motherboards, delivering a clean, cable-free interior.

4. Tool-less design with a press-to-release front mesh and easily removable tempered glass side and top panels for effortless fan and radiator installation.

5. Spacious cable routing area with 37mm (front) and 33mm (rear) clearance, complemented by rubber grommets and Velcro straps for neat and simple cable management.

6. Premium walnut wood accents and a custom-designed Starlight power button offer a warm, modern look.

7. Distinctive triangular mesh on both side panels improves airflow while adding visual flair.

8. 13A heavy-duty PSU extension cable for reliable and safe power delivery.

9. Integrated GPU support bracket prevents sag and keeps heavy graphics cards securely mounted.

Dimensions 468 x 238 x 462mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic + Wood
Mainboard Support ATX, Micro-ATX , ITX
Front Access Controls Power, Reset ,USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack
Side Panel 4mm Tempered Glass
Drive Bays
Expansion Slots 7
3.5′ 1
2.5′ 2
Fan
Front 2x140mm
Top 3×120/2x140mm
Power Supply Shroud 2x120mm
Rear 1×120/1x140mm
Included Fan(s) 2 x 140mm H14C PWM Fans at the front + 2 x 120mm H12CR PWM Reverse Fans on the power supply shroud + 1 x 140mm H14 PWM Fan at the rear + 1-to-3 PWM splitter cable
Radiator Support
Top 360/280/240/140/120mm
Rear 140/120mm
Clearance
Max GPU Length ≤400mm
Max CPU Cooler Height ≤180mm
Max PSU Length ‘ (Without cable)≤ 170mm’
Miscellaneous
Dust Filter Bottom
Net Weight 8.17 Kg
Gross Weight 9.74 Kg
