MSI X870E GAMING PLUS WIFI, AM5, Ryzen 7000-9000, X870E, DDR5-8200+, PCIe5 x16, M.2 Gen5, WiFi7, BT5.4, 5G LAN, USB4, USB20G, Audio7.1, 8CH HD Boost | X870E GAMING PLUS WIFI

MSI X870E GAMING PLUS WIFI, AM5, Ryzen 7000-9000, X870E, DDR5-8200+, PCIe5 x16, M.2 Gen5, WiFi7, BT5.4, 5G LAN, USB4, USB20G, Audio7.1, 8CH HD Boost

SPECIFICATIONS
Model Name X870E GAMING PLUS WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Graphics Interface 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots
Display Interface 1 x USB4 port supports USB Type-C display output,
Support 4K@60Hz as specified in HDMI™ 2.1 – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
Storage
1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports

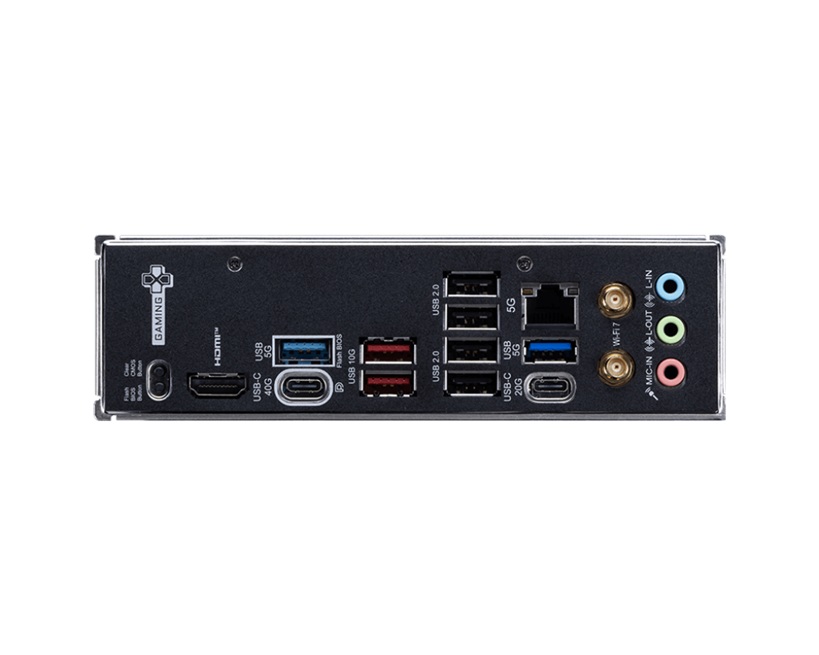

USB ports
1 x USB 40Gbps (1 Type-C),
1 x USB 20Gbps (1 Type-C),
3 x USB 10Gbps (2 Type-A + 1 Type-C),
6 x USB 5Gbps (6 Type-A),
10 x USB 2.0

LAN Realtek® 5G LAN
Wireless / Bluetooth Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

Product Last Updated: 10/04/2026
